MaxJax
10AP-SRT 10,000-lb. Capacity Two-Post Lift Mid Rise
SKU: 5175610

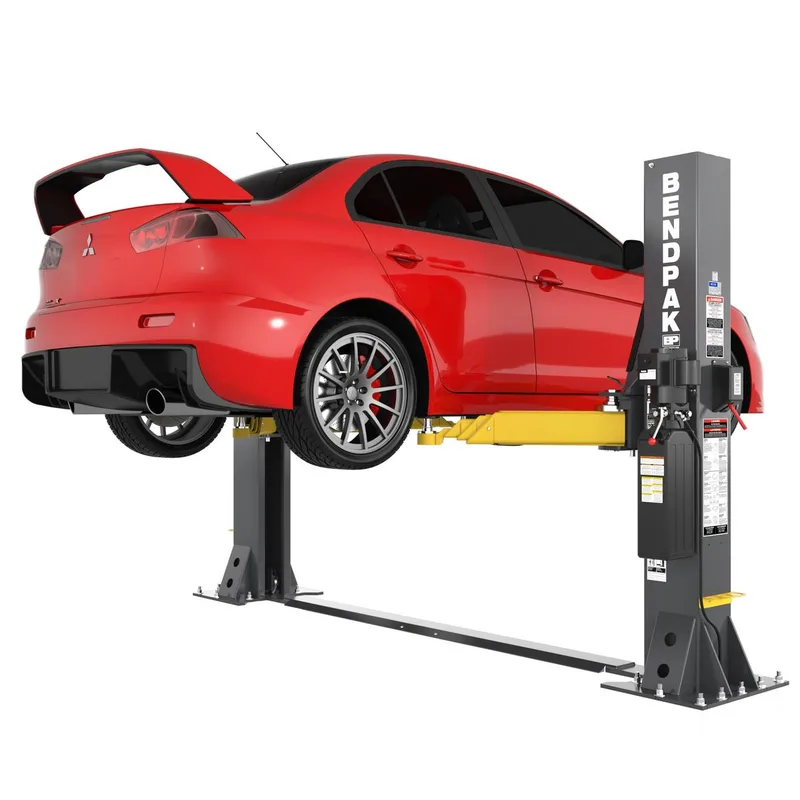

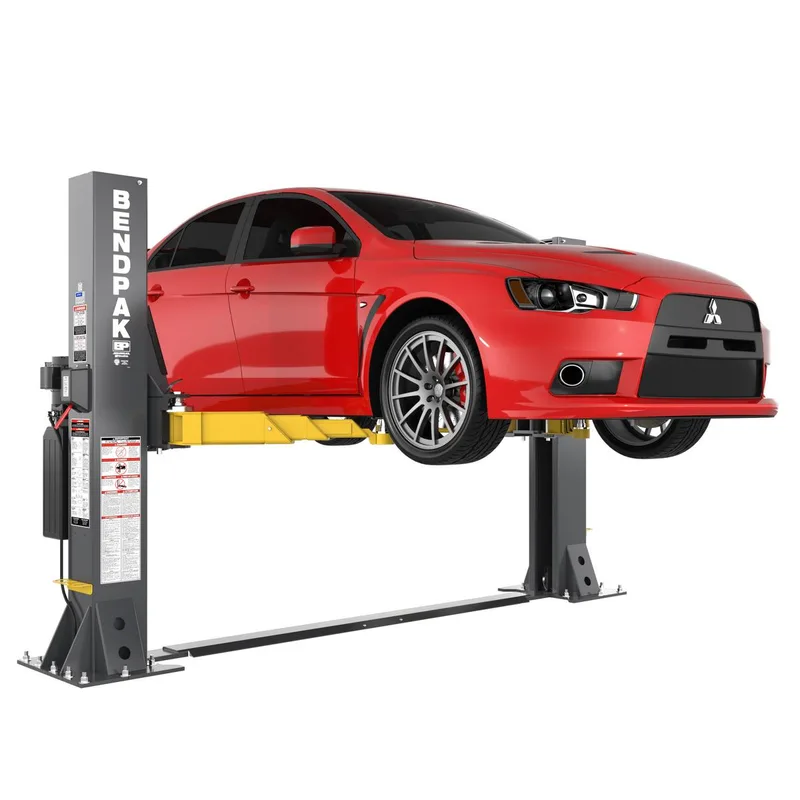

The compact design of the 10AP-SRT makes it the lift of choice when you're performing tasks that don't require you to stand underneath a vehicle.
Description

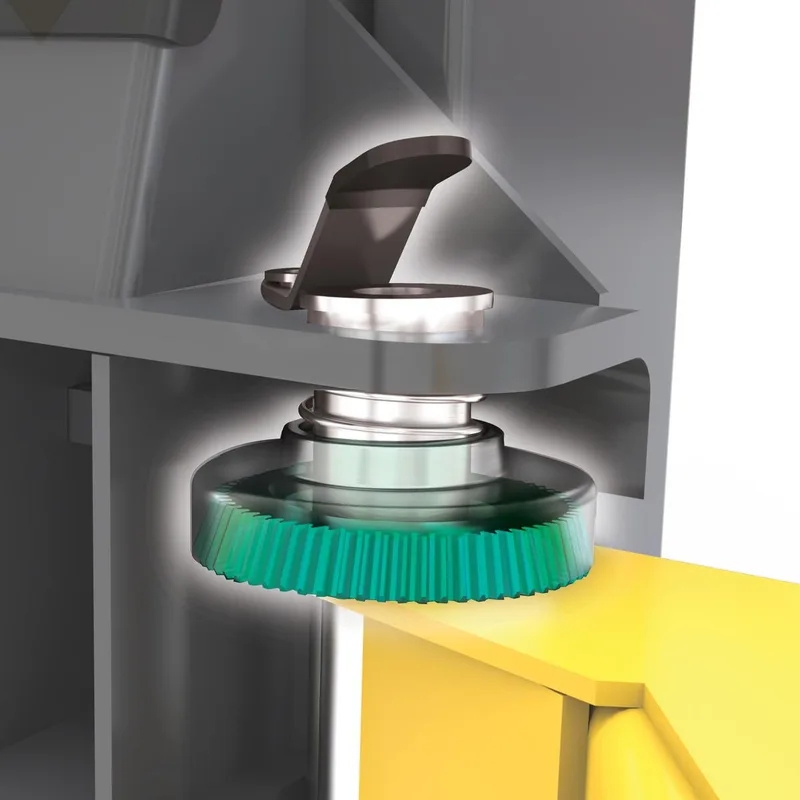

The compact design of the 10AP-SRT makes it the lift of choice when you're performing tasks that don't require you to stand underneath a vehicle. With a max rise of roughly 46 inches, this lift is ideal for tire service as well as detailing. The BendPak 10AP-SRT is the go-to lift for shops focused on tire work, detailing, and quick-turn services. With a 10,000-lb. capacity and a compact short-rise, short-column design, it fits where standard lifts can't—making it perfect for low-ceiling garages and space-conscious bays. Its 46" rise gives you the access you need without the overhead, while BendPak's patented Automatic Swing Arm Restraint System (ASARS) keeps every lift locked in place with 2,000 lbs. of holding force.
Specifications
- amps
- 19.5
- motor
- 208-240V, 50-60Hz, 1-Ph.
- watts
- 4290
- voltage
- 208-240V
- material
- Steel
- noise db
- 43
- horsepower
- 5
- type stance
- Symmetric or Asymmetric
- drive thru width
- 94"
- lock release type
- Single-Point safety release
- locking positions
- 8
- assembled weight lbs
- 1594
- fully lowered inches
- 4.75
- rear arm reach range
- 29.38" - 57"
- front arm reach range
- 22.13" - 47.38"
- height overall inches
- 93.5
- time to full rise sec
- 45
- adapter pin diameter mm
- 60
- lifting capacity pounds
- 10000
- max load per arm pounds
- 2500
- floor plate width inches
- 9.5
- overall width max inches
- 139
- max lifting height inches
- 46.13
- drive thru clearance inches
- 42.38
- max capacity rear axle pounds
- 5000
- max capacity front axle pounds
- 5000
Frequently Asked Questions
What ceiling height do I need for the 10AP-SRT 10,000-lb. Capacity Two-Post Lift Mid Rise?
Most 2-post lifts require a minimum ceiling height of 11'6" to 12'. 4-post lifts typically need 7-8 feet of clearance. Check the product specifications above for exact requirements.
Does the 10AP-SRT 10,000-lb. Capacity Two-Post Lift Mid Rise include installation?
The lift ships directly to your location. Professional installation is recommended and can be arranged through a local installer. My Sweet Garage can help connect you with certified installers in your area.
What floor thickness is required?
Most vehicle lifts require a minimum 4-inch reinforced concrete floor. Some portable lifts like QuickJack can be used on thinner slabs. Check the specifications for exact requirements.
Does this come with free shipping?
Yes! My Sweet Garage offers free shipping on most products. Large items like vehicle lifts ship via freight carrier with free curbside delivery.
What is your return policy?
We offer a 30-day return policy on unused items in original packaging. A restocking fee may apply for large items. Contact support@mysweetgarage.com for return authorization.
