QuickJack
3500SLX Portable Car Lift 110V Standard Frame
SKU: 5175010
The 3,500-lb. capacity 3500SLX is made for small-wheelbase cars. Lightweight and portable, it's perfect for quick lifts in your garage or at the track. Great for Miatas, autocross, or any job where mobility and speed matter.
Description

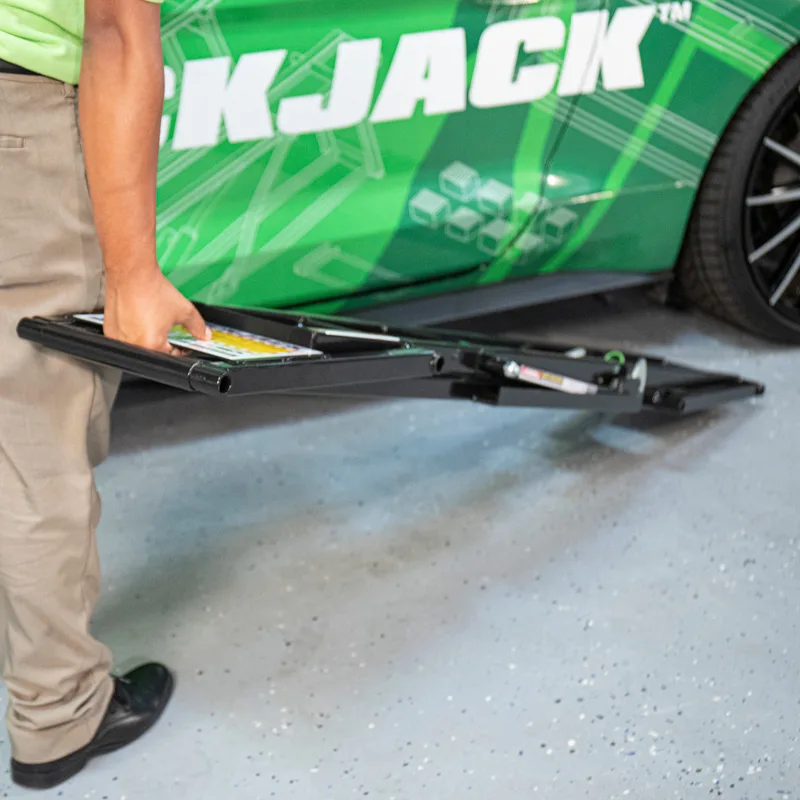

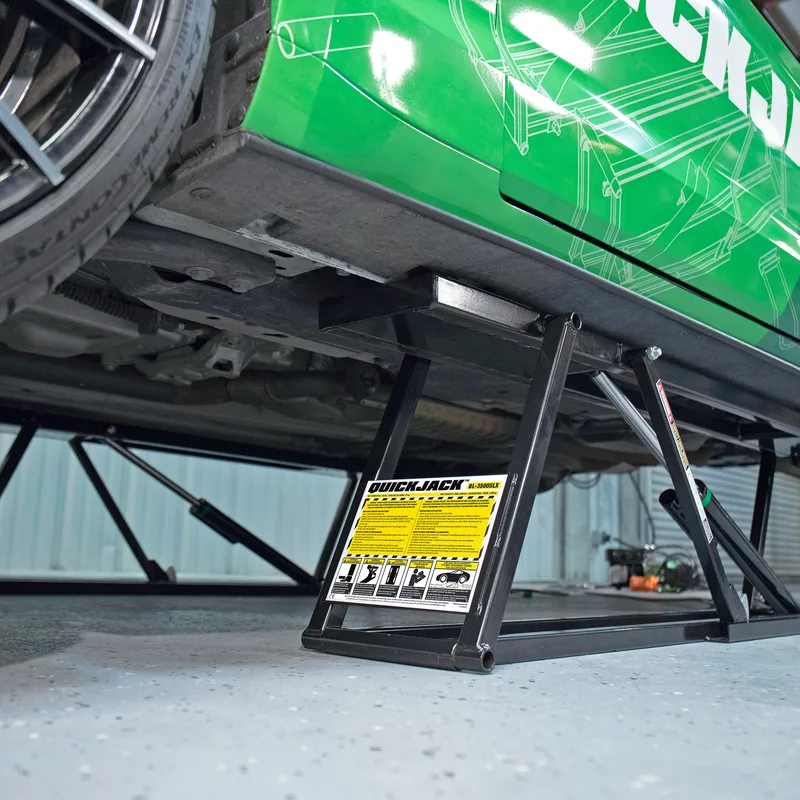

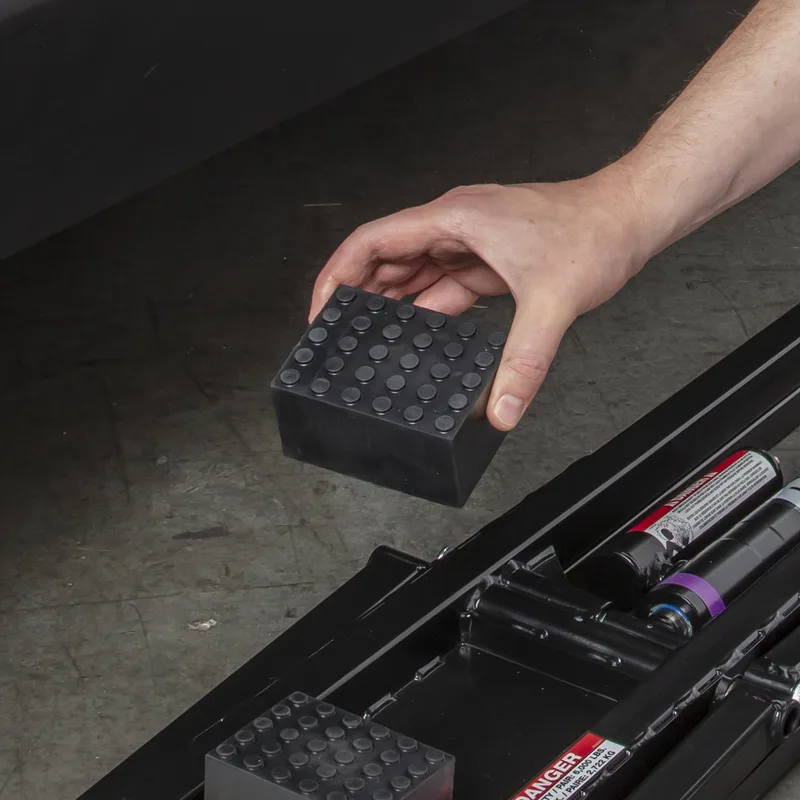

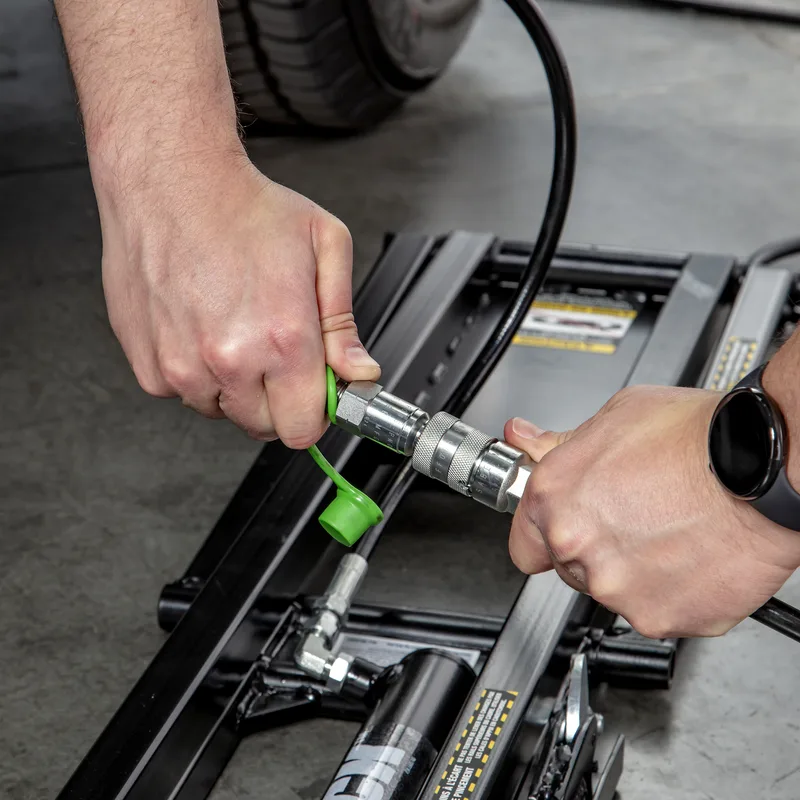

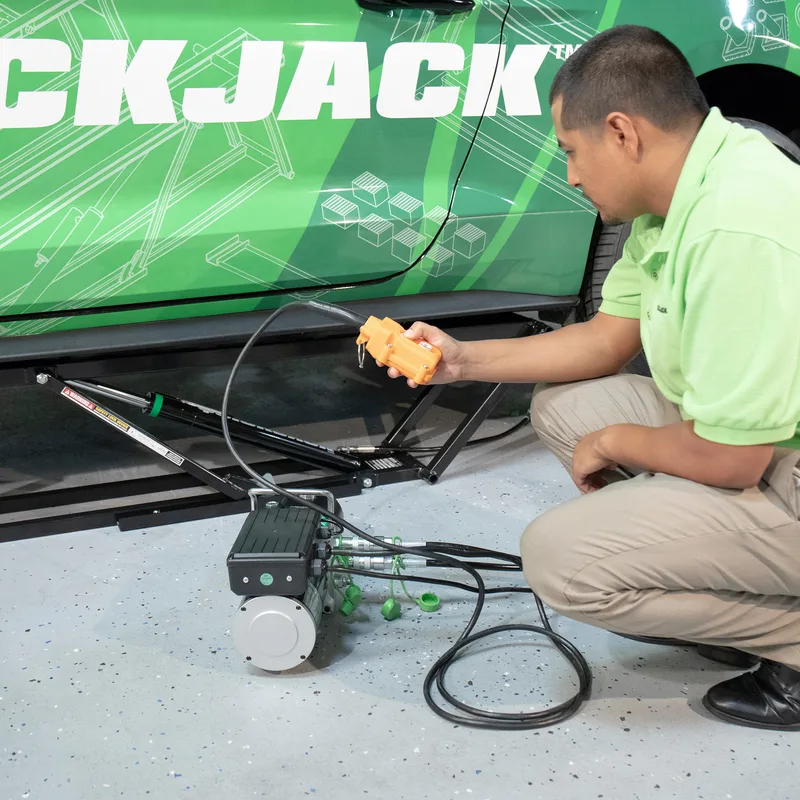

Perfect for the track Convert your garage lift to a portable car lift just by rolling it to the trunk of your car and hauling it to the track. 12V DC power option makes this the world's first-ever true track lift. If you don't have a professional pit crew at your disposal, you'll want QuickJack by your side.Have a heavier vehicle? The 5000TL is also great for track day. Extended block trays We increased the size of our rubber block trays to improve access to varied lift points. Position blocks from 26.75" - 50.5" apart, satisfying most lift point spreads. Zero-leak fittings Our car lift components include flush-face hose fittings to ensure fluids stay in the unit and not on your garage floor. You don't want to be the one to leak all over the track, either. Open-center design Don't let us get in your way! Inspired by larger frame-engaging car lifts, our open-center design gives users total access to the wheels and undercarriage.
Specifications
- Amps
- 10
- Motor
- 110V, 50/60Hz, 1PH
- Watts
- 1100
- Voltage
- 110V 50/60HZ
- Material
- Steel
- Noise dB
- 70
- Portable
- true
- Motor RPM
- 3450
- Horse power
- 1
- Assembly Required
- true
- Assembled Weight Lbs
- 66
- Locking Position Qty
- 2
- Time to Full Rise sec
- 26
- Lifting Capacity Pounds
- 3500
- Height Overall Inches Rounded
- 16.25
- Individual Frame Weight Pounds
- 66
- Overall Width Max Inches Rounded
- 10.5
- Lowered Height Frame Only Inches Rounded
- 2.38
- Maximum Lift Point Spread Inches Rounded
- 50.5
- Minimum Lift Point Spread Inches Rounded
- 27
- Lifting Height Stacked blocks Inches Rounded
- 20
- Lifting Height With 2 inch block Inches Rounded
- 17
- Lifting Height With 3 inch block Inches Rounded
- 17.75
- Lowered Height With 2 inch block Inches Rounded
- 3.38
- Width Between Runways Narrow/Standard Configuration Inches Rounded
- 23.88
Customer Reviews
Based on 37 reviews
This lift is built like a tank. The welds are clean and the finish is excellent. Installation took a weekend with a friend but the instructions were clear. Couldn't be happier with the purchase.
Verified Buyer — 3/21/2026
Finally pulled the trigger on a proper lift and it has completely changed my garage game. No more crawling on the floor. Lifting capacity is exactly as advertised.
Home Mechanic — 3/21/2026
I've installed dozens of lifts and this one is top-notch. The safety locks engage positively and the hydraulics are smooth. Highly recommend for both home and commercial use.
Professional Installer — 3/21/2026
The lift operates smoothly and quietly. My only minor gripe is the anchoring hardware could be beefier, but overall this is a fantastic lift for the money.
Garage Owner — 3/21/2026
Having a lift in my home garage is a dream come true. Oil changes, brake jobs, suspension work - everything is so much easier now. Worth every penny.
Weekend Warrior — 3/21/2026
Frequently Asked Questions
What ceiling height do I need for the 3500SLX Portable Car Lift 110V Standard Frame?
Most 2-post lifts require a minimum ceiling height of 11'6" to 12'. 4-post lifts typically need 7-8 feet of clearance. Check the product specifications above for exact requirements.
Does the 3500SLX Portable Car Lift 110V Standard Frame include installation?
The lift ships directly to your location. Professional installation is recommended and can be arranged through a local installer. My Sweet Garage can help connect you with certified installers in your area.
What floor thickness is required?
Most vehicle lifts require a minimum 4-inch reinforced concrete floor. Some portable lifts like QuickJack can be used on thinner slabs. Check the specifications for exact requirements.
Does this come with free shipping?
Yes! My Sweet Garage offers free shipping on most products. Large items like vehicle lifts ship via freight carrier with free curbside delivery.
What is your return policy?
We offer a 30-day return policy on unused items in original packaging. A restocking fee may apply for large items. Contact support@mysweetgarage.com for return authorization.
