QuickJack
QuickJack 6000TL Portable Car Lift
SKU: 6000TL
6,000-lbs. Lifting Capacity/ ALI Certified / Portable Car Lift
Description

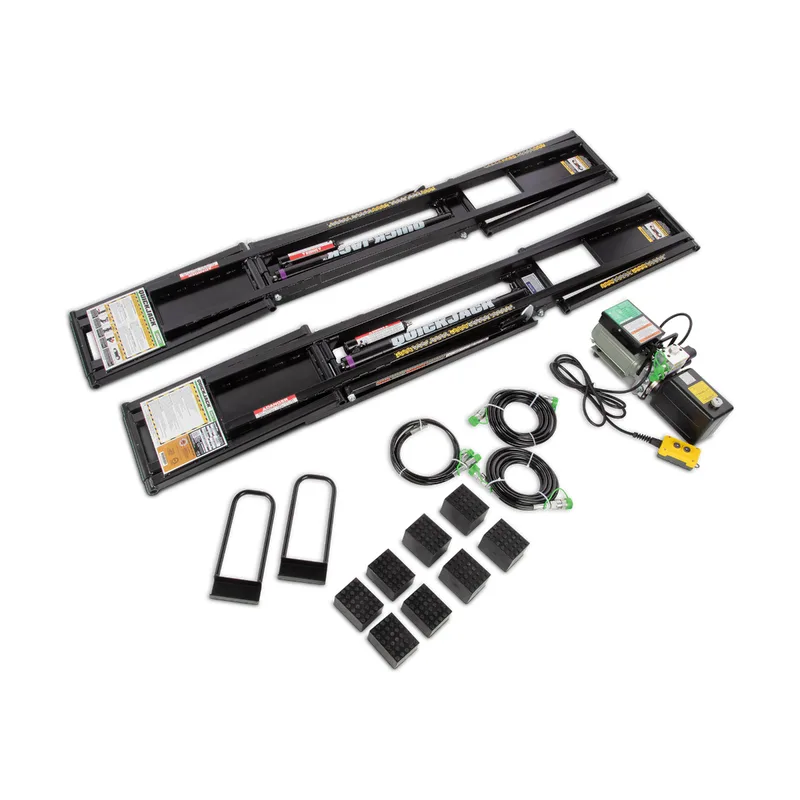

6000TL Portable Car Lift System

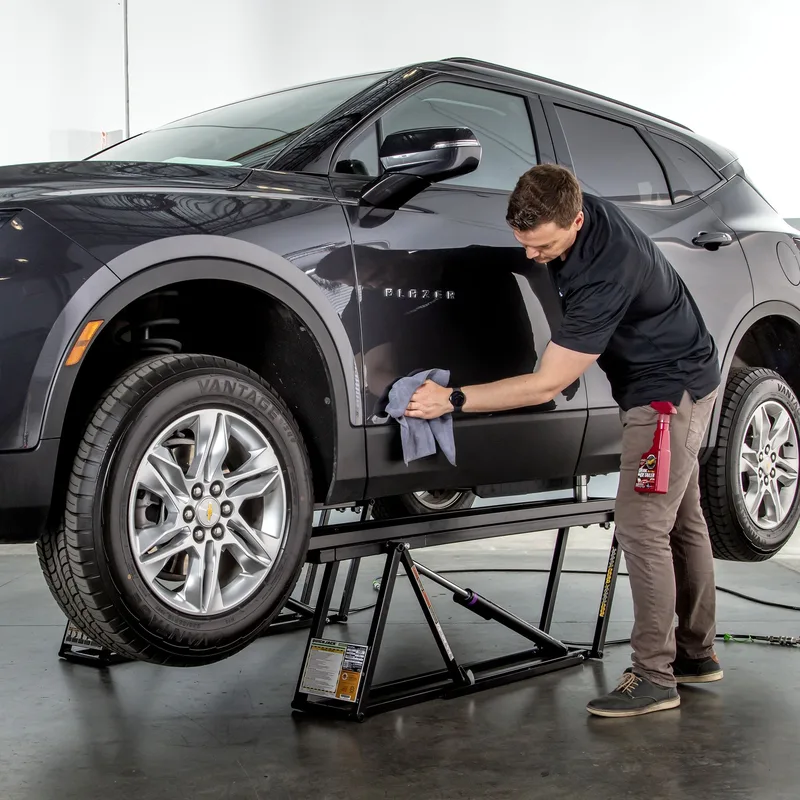

QuickJack has raised the bar once again with the upgraded 6000TL portable car lift, engineered for greater strength, enhanced lifting capacity, and quicker setup. Building on the popularity of its predecessor, the new 6000TL now lifts up to 6,000 lbs. with confidence and ease, making it the ideal car lift for your home garage, track days, or professional auto repair shop.

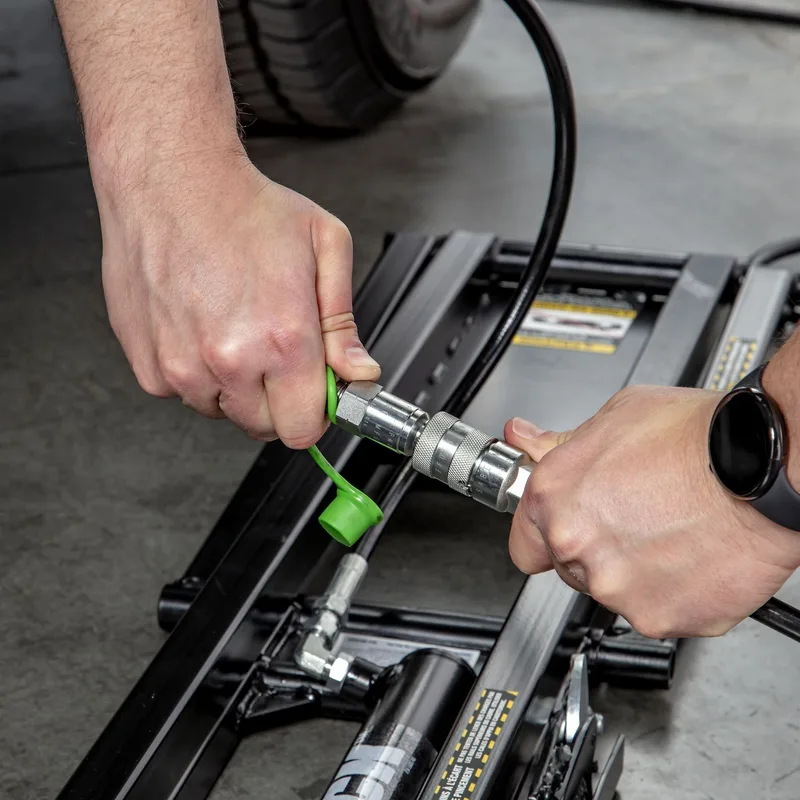

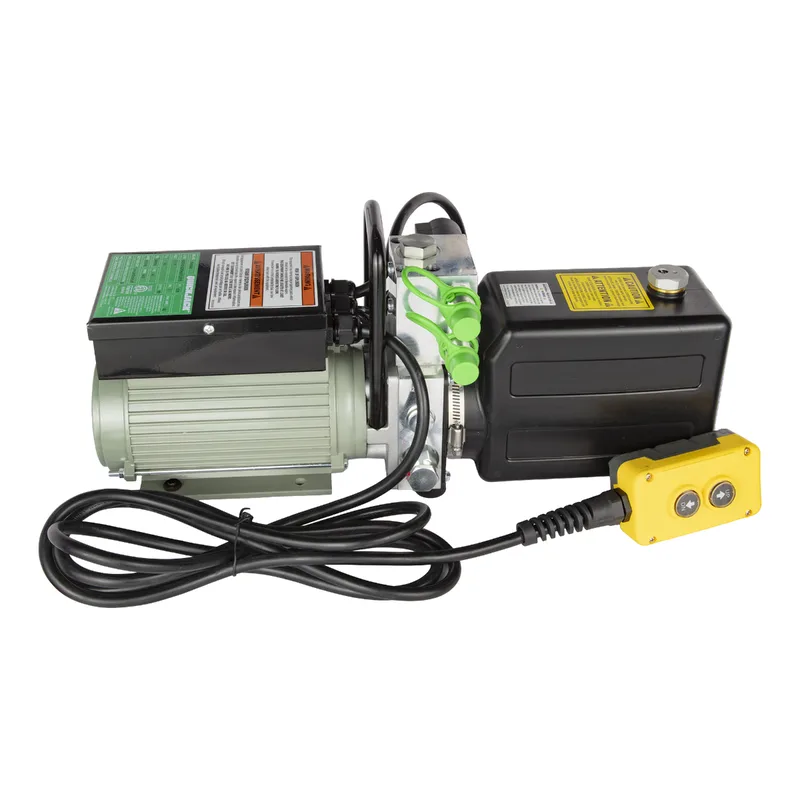

Thanks to a completely redesigned electric/hydraulic power unit featuring a pressure-compensated flow divider, both frames lift and lower in perfect sync. Reinforced structural elements—including thicker cross members, improved weld geometry, and upgraded pivot joints—ensure rigidity and alignment under heavier loads. With a lift height of 24 inches, the QuickJack 6000TL gives you ample clearance to handle nearly any vehicle maintenance task, without sacrificing the compact dimensions you need.
What's improved on the NEW TL Models vs. previous TL Models?
The 6000TL offers significant upgrades over the outgoing 5000TL model, including a boosted lifting capacity—up from 5,000 lbs. to 6,000 lbs.—without increasing the frame dimensions. The improved hydraulic system ensures smoother, safer lifting, while structural enhancements provide unmatched durability and stability under load.
Despite these upgrades, QuickJack maintains its famously slim profile, retaining the convenient 3-inch collapsed height, 70-inch frame length, and 11-inch frame width. This allows easy storage and maneuverability in tight spaces, making it an essential tool for garages where space is at a premium.
- Free ShippingTo The 48 Contiguous States
Specifications
- Amps
- 10
- Motor
- 110V, 60Hz, 1-Ph.
- Watts
- 1100
- Voltage
- 110V standard / 220V optional (+$25)
- Material
- Steel
- Noise dB
- 70
- Portable
- true
- Motor RPM
- 3450
- Horse power
- 1
- Certification
- ALI Certified
- Shipping Weight
- 240 lbs. (109 kg)
- Lifting Capacity
- 6,000 lbs. (2,722 kg)
- Max. Lift Height
- 24" (616 mm)
- Assembly Required
- true
- Lock Release Type
- Single-Point safety release
- Power Unit Weight
- 15 lbs. (7 kg)
- Time to Full Rise
- 30 seconds
- Frame Width (each)
- 11" (278 mm)
- Frame Length (each)
- 70" (1,778 mm)
- Frame Weight (each)
- 78 lbs. (35 kg)
- Locking Position Qty
- 2
- Max. Lift Point Spread
- 60" (1,524 mm)
- Min. Lift Point Spread
- 37" (940 mm)
- Lift Height (with adapters)
- 24" (597 mm)

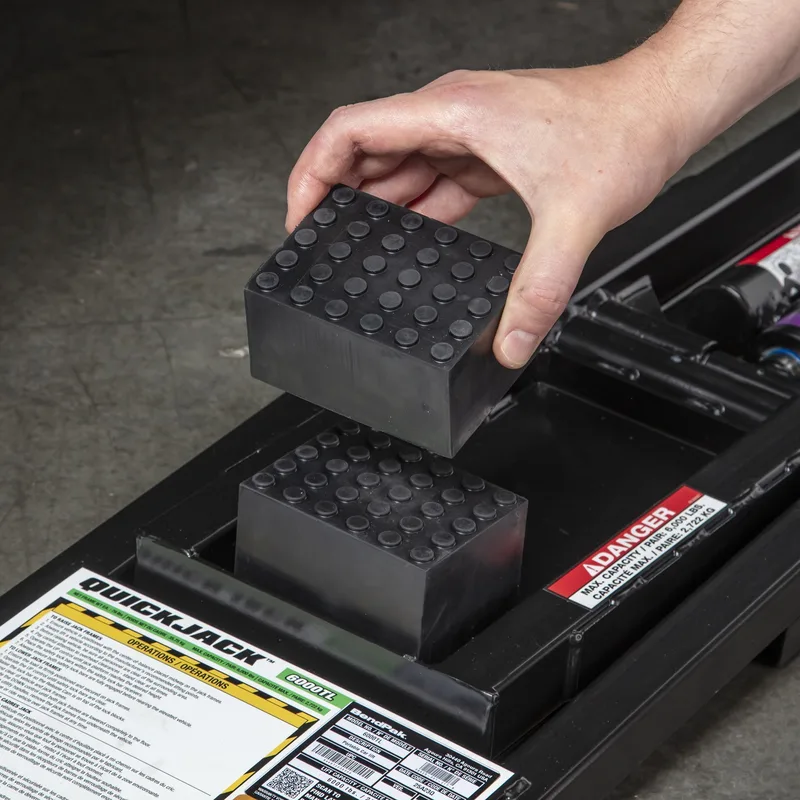

- Lifting Height (with 2" block)
- 21" (521 mm)
- Lifting Height (with 3" block)
- 22" (546 mm)
- Lowered Height (with 2" block)
- 3.5" (89 mm)
- Shipping Dimensions (each frame)
- 73.5" (L) x 15.25" (W) x 5" (H)
- Lift Height (with adapters + pin)
- 26.75" (673 mm)
Frequently Asked Questions
What ceiling height do I need for the QuickJack 6000TL Portable Car Lift?
Most 2-post lifts require a minimum ceiling height of 11'6" to 12'. 4-post lifts typically need 7-8 feet of clearance. Check the product specifications above for exact requirements.
Does the QuickJack 6000TL Portable Car Lift include installation?
The lift ships directly to your location. Professional installation is recommended and can be arranged through a local installer. My Sweet Garage can help connect you with certified installers in your area.
What floor thickness is required?
Most vehicle lifts require a minimum 4-inch reinforced concrete floor. Some portable lifts like QuickJack can be used on thinner slabs. Check the specifications for exact requirements.
