QuickJack 8000TLX Portable Truck Lift
SKU: 8000TLX
8,000-lbs. Lifting Capacity / Extended Length / Portable Car Lift
Description
8000TLX Extended-Length Portable Truck and SUV Lift

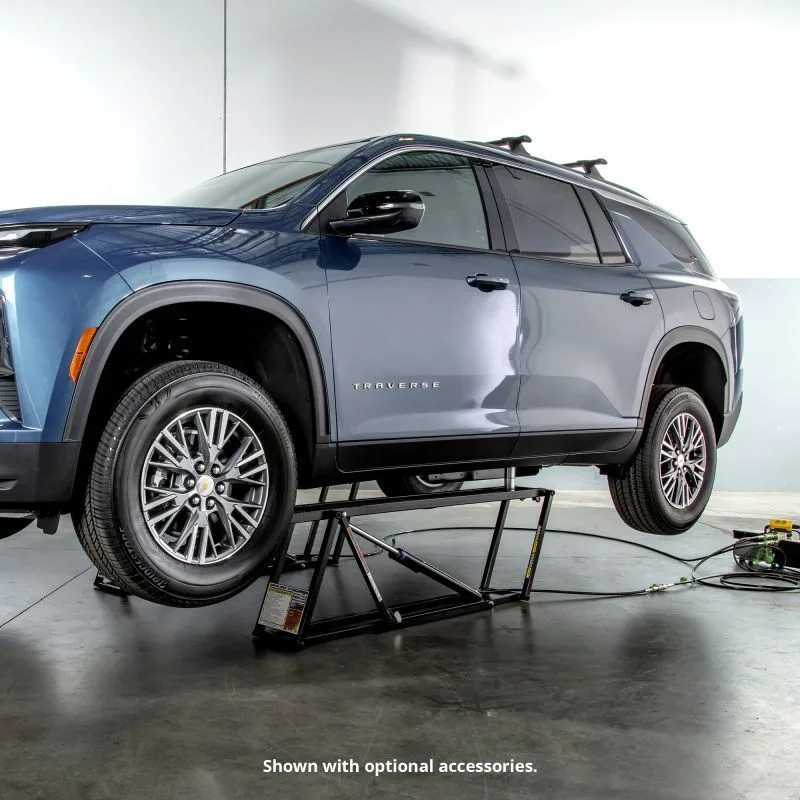

The QuickJack 8000TLX is the highest-capacity, extended-length portable lift in our lineup—engineered specifically for heavy-duty trucks, SUVs, and long-wheelbase vehicles. With an 8,000-lb. capacity and a 66-inch lift point reach, it handles the jobs that standard car lifts can’t touch. Built tough, yet fully collapsible, this portable truck lift gives you full access beneath your vehicle without the footprint of a permanent setup.

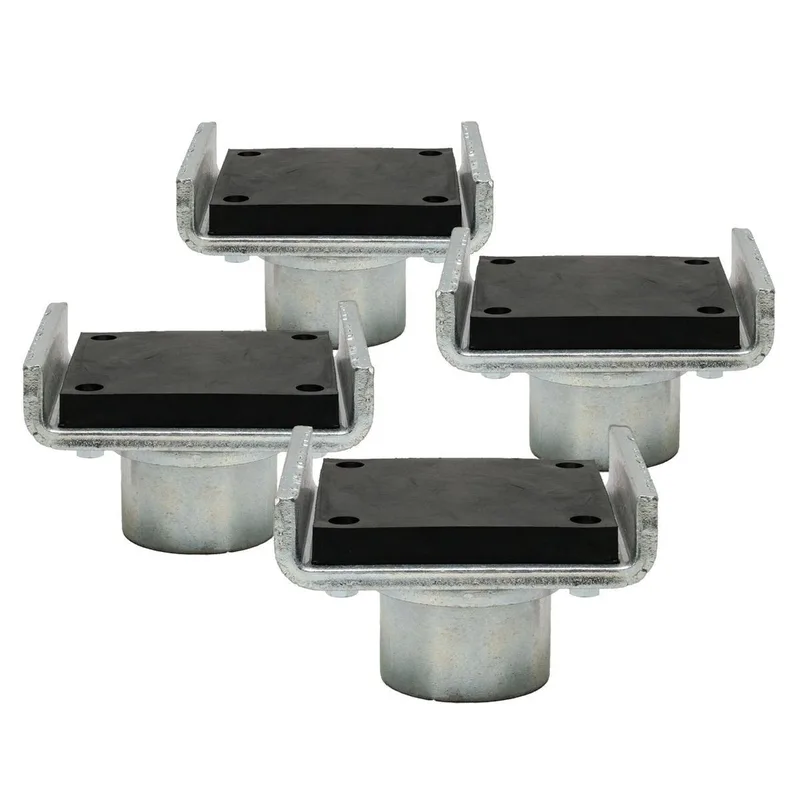

Despite its size, the 8000TLX still reaches max rise in about 30 seconds, and its low 3.5-inch collapsed height means it fits under most sedans and sports cars too. Add the optional Truck & SUV Adapter Kit for even more undercarriage access on higher-clearance vehicles.

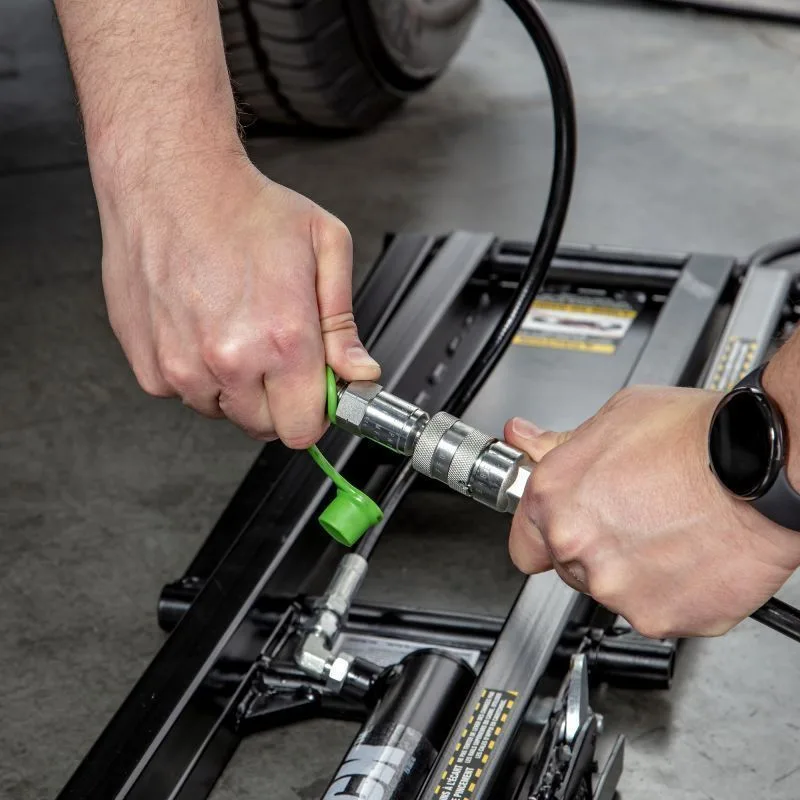

Upgrades include a pressure-compensated flow divider for synchronized lifting, reinforced frame geometry, and a factory preassembled hydraulic system. All these improvements ensure faster setup, smoother operation, and maximum durability in the shop or at home.

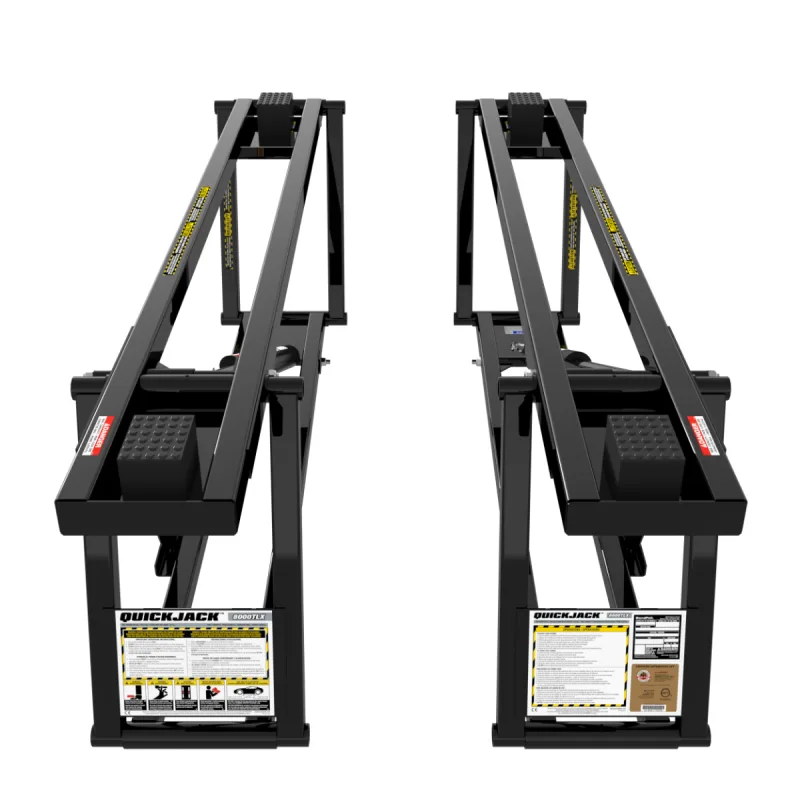

The 76-inch frames are designed for serious reach but remain compact enough to roll and stow easily using QuickJack's built-in urethane wheels. Take it anywhere—garage, driveway, shop, or even off-site—as long as you’ve got a flat surface to work on.
Extended-length design and lift point specs
The 8000TLX was engineered to accommodate long-wheelbase vehicles with lift points that exceed standard lengths. Its frame and lift point spread are 6 inches longer than TL models, so be sure to measure before purchasing for shorter vehicles.
TL minimum lift point spread: 37"
TLX minimum lift point spread: 43"
TL maximum lift point spread: 60"
TLX maximum lift point spread: 66"
TL overall frame length: 70"
TLX overall frame length: 76"
What's different about the NEW TLX Models?
The 8000TLX delivers a full 1,000-lb. boost in capacity over the 7000TLX and includes the latest QuickJack upgrades: reinforced structural components, an upgraded hydraulic system, and a safer, more stable lift cycle. Best of all, it still folds to just 3.5 inches for easy storage and portability.
- Free ShippingTo The 48 Contiguous States
Specifications
- Amps
- 10
- Motor
- 110V, 60Hz, 1-PH
- Watts
- 1100
- Voltage
- 110V, 50/60Hz, 1-Ph.
- Material
- Steel
- Noise dB
- 70
- Portable
- true
- Motor RPM
- 3450
- Horse power
- 1
- Shipping Weight
- 250 lbs. (113 kg)
- Lifting Capacity
- 8,000 lbs. (3,629 kg)
- Max. Lift Height
- 24" (616 mm)
- Assembly Required
- true
- Lock Release Type
- Single-Point safety release
- Power Unit Weight
- 15 lbs. (7 kg)
- Time to Full Rise
- 30 seconds
- Frame Width (each)
- 11" (278 mm)
- Frame Length (each)
- 76" (1,930 mm)
- Frame Weight (each)
- 81.5 lbs. (37 kg)
- Locking Position Qty
- 2
- Max. Lift Point Spread
- 66" (1,676 mm)
- Min. Lift Point Spread
- 43" (1,092 mm)
- Lift Height (with adapters)
- 24" (597 mm)

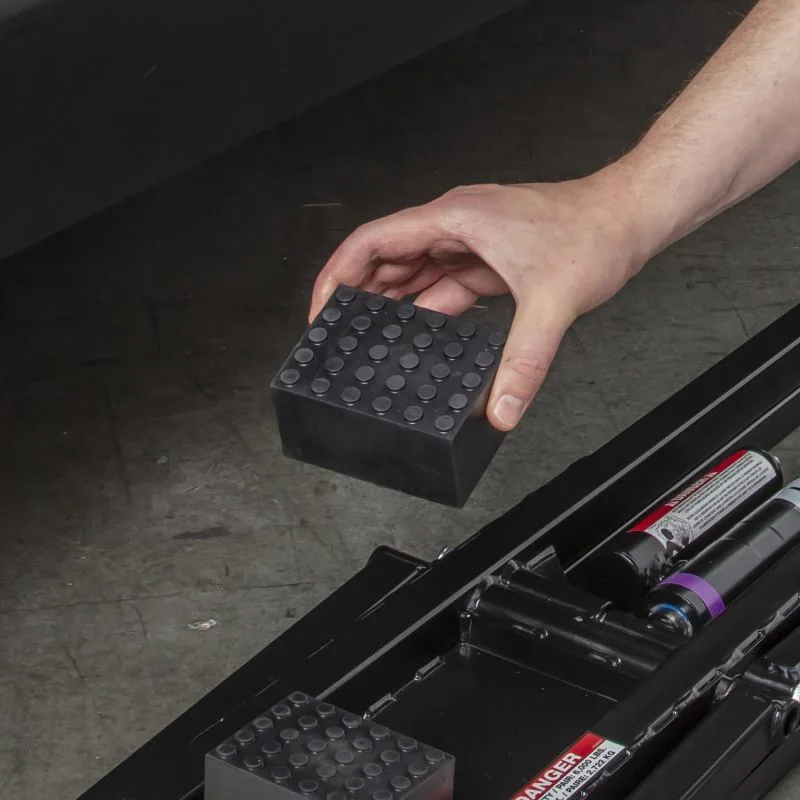

- Lifting Height (with 2" block)
- 21" (521 mm)
- Lifting Height (with 3" block)
- 22" (546 mm)
- Lowered Height (with 2" block)
- 3.5" (89 mm)
- Shipping Dimensions (each frame)
- 79.5" (L) x 15.25" (W) x 5" (H)
- Lift Height (with adapters + pin)
- 26.75" (673 mm)
