APEX AL10C Clearfloor Two-Post Lift - 10,000-lbs. Capacity
Power Unit: Standard
SKU: 5176251
2-Post Lift / 10,000 Lb. Cap. / Clearfloor, 220V 1Ph
Description
Clearfloor Power for Serious Shops
Clearfloor Access with Flexible Vehicle Positioning

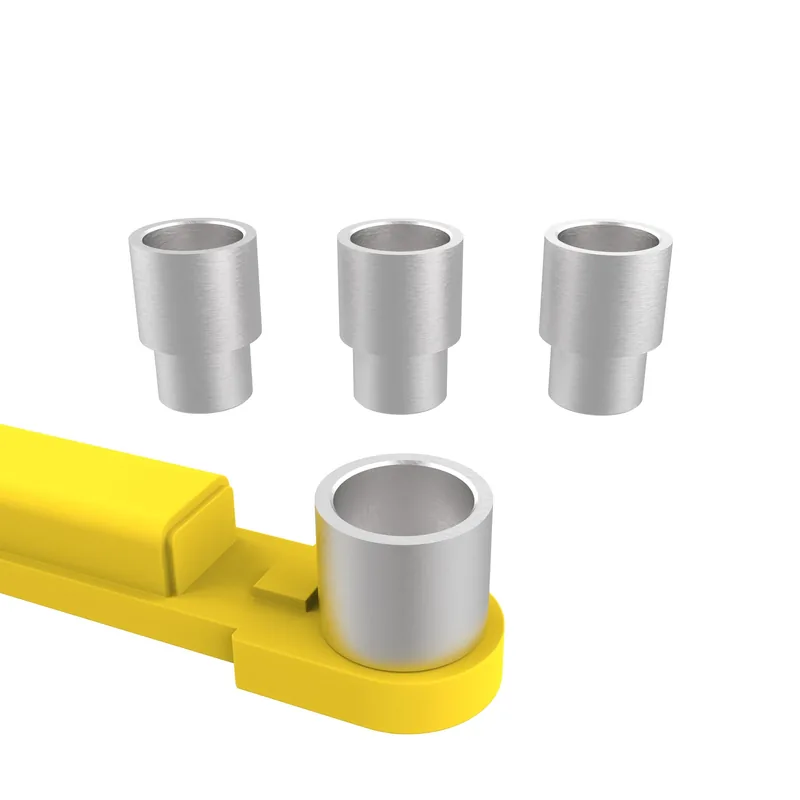

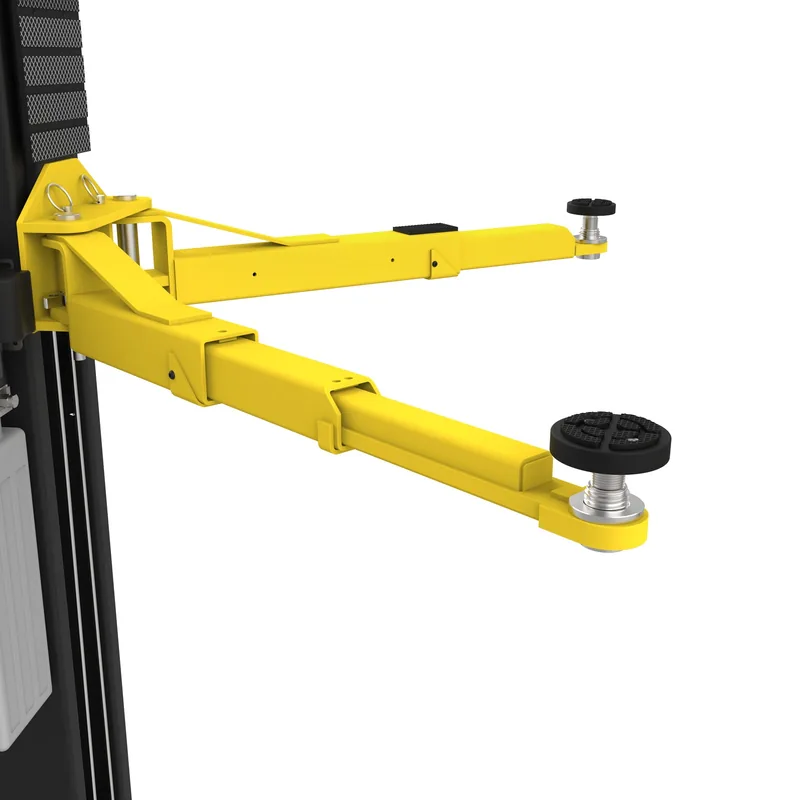

The AL10C is designed to make vehicle setup faster while keeping the service bay easier to work around. Symmetric and asymmetric arm configurations allow technicians to adapt the lift setup to different vehicle sizes, frame designs, and weight distribution needs. Triple-telescoping front arms and dual-stage extended rear arms provide broad reach for a wide range of wheelbases. Double-telescoping screw pads with tear-resistant polyurethane non-slip pads, along with the included 4-piece 63 mm stackable adapter set, help create secure lifting contact across different vehicles and service applications.
Direct-Drive Hydraulics with Overhead Structural Support

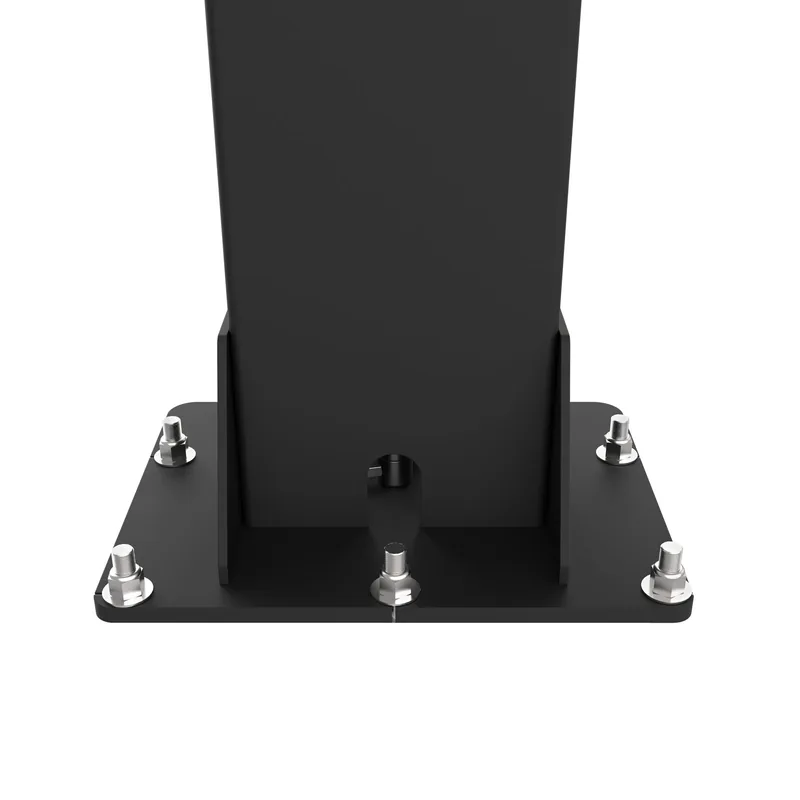

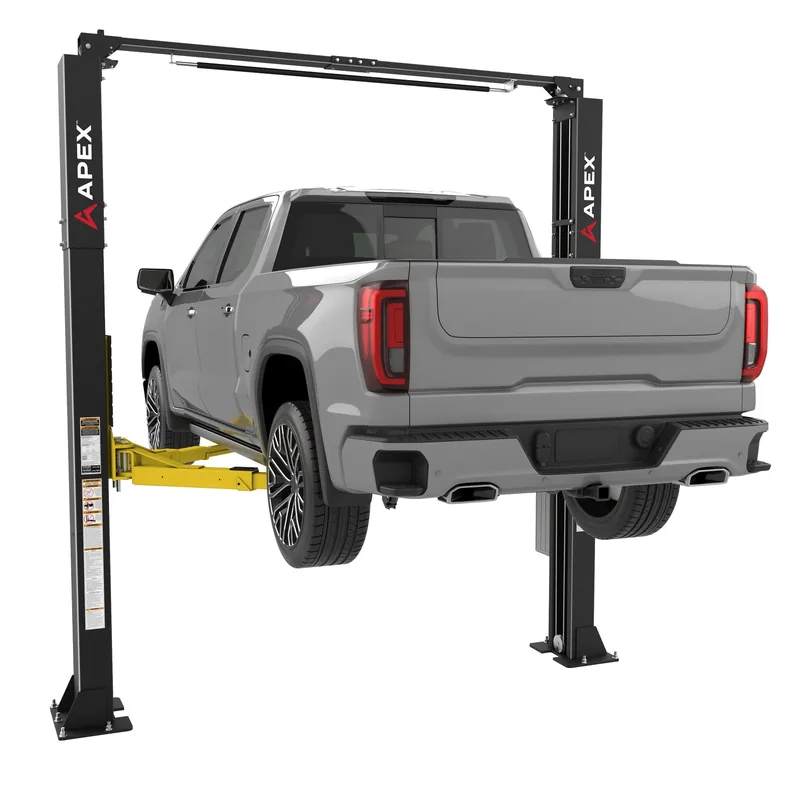

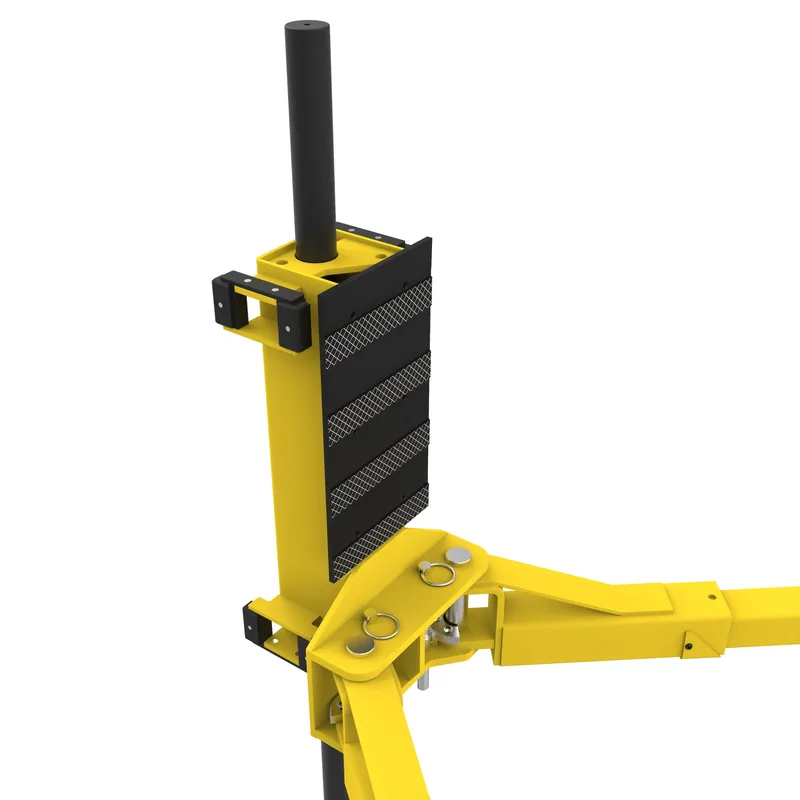

The AL10C features a direct-drive hydraulic design with dual full-stroke hydraulic cylinders. By reducing the number of moving parts compared with more complex lifting systems, the direct-drive setup helps minimize wear while delivering smooth, consistent lift operation for daily shop use. A rugged overhead box-beam structure reinforces the lift frame, reduces column stress, and supports overall stability. Heavy-duty 6-inch by 6-inch tubular steel carriages, oversized base plates, self-lubricating UHMW polyethylene guide blocks, oversized cable sheaves, and aircraft-quality equalizer cables all contribute to long-term durability.
Safety Locks, Overhead Shutoff, and Long-Term Support

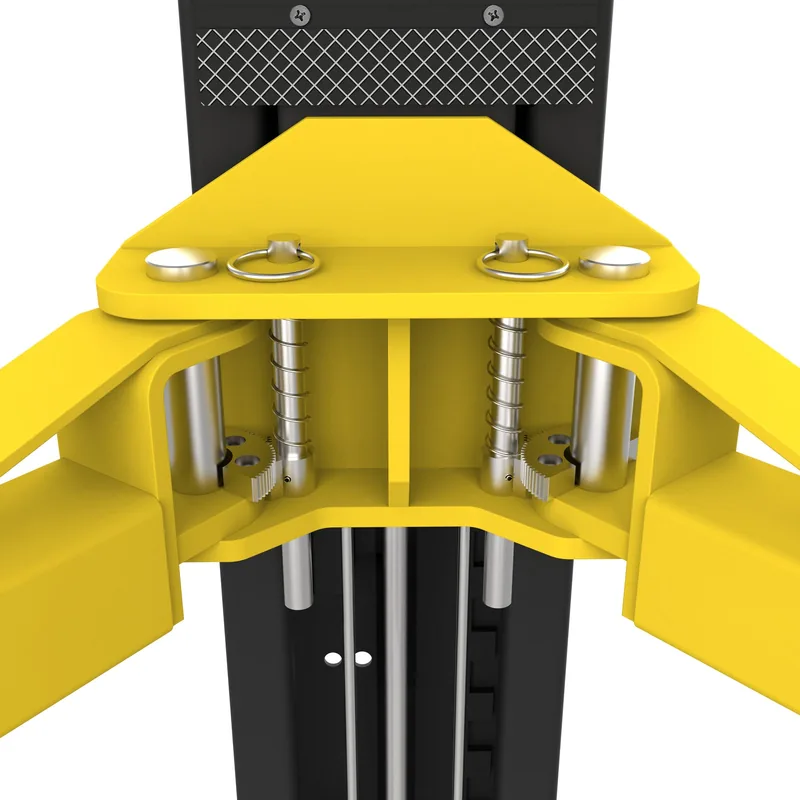

The AL10C includes automatic safety locks that engage every 3 inches throughout the lifting range, helping hold vehicles securely at working height. Single-pull lanyards on each carriage make lock release straightforward, while automatic arm restraints help prevent unintended arm movement after the vehicle is raised.
A padded overhead safety shutoff bar with an industrial-grade limit switch automatically stops lift travel if a vehicle is raised too high. Previously sold under the GrandPrix name, the AL10C now joins the APEX lineup with the same clearfloor architecture, direct-drive lifting system, structural components, and BendPak-backed 36-month limited warranty.
Specifications
- Model
- AL10C (220V1)
- A Rise
- 70 in
- F Width
- 137.5 in
- Voltage
- 208-230V / 60 Hz / 1-Phase
- E Height
- 148 in
- Horsepower
- 5 HP
- Sound Level
- < 70 dB
- Lifting Time
- 65 seconds
- Shipping Method
- Flatbed
- Shipping Weight
- 1536 lb
- H Inside Columns
- 114.5 in
- Lifting Capacity
- 10000 lb
- G Outside Columns
- 128.5 in
- Offload Requirement
- Forklift
- Shipping Dimensions
- 27 x 114 x 29 in
- L Rear Arm Reach Max
- 53.25 in
- L Rear Arm Reach Min
- 33.5 in
- Max Capacity Per Arm
- 2500 lb
- Screw Pad Adjustment
- 2 in
- K Front Arm Reach Max
- 43.25 in
- K Front Arm Reach Min
- 22.5 in
- I Drive-Thru Clearance
- 103 in
- J Floor to Overhead Switch
- 142.5 in
- C Max Lifting Height with Pad
- 76.5 in
- D Min Lifting Height with Pad
- 3.9 in
Frequently Asked Questions
What ceiling height do I need for the APEX AL10C Clearfloor Two-Post Lift - 10,000-lbs. Capacity?
Most 2-post lifts require a minimum ceiling height of 11'6" to 12'. 4-post lifts typically need 7-8 feet of clearance. Check the product specifications above for exact requirements.
Does the APEX AL10C Clearfloor Two-Post Lift - 10,000-lbs. Capacity include installation?
The lift ships directly to your location. Professional installation is recommended and can be arranged through a local installer. My Sweet Garage can help connect you with certified installers in your area.
What floor thickness is required?
Most vehicle lifts require a minimum 4-inch reinforced concrete floor. Some portable lifts like QuickJack can be used on thinner slabs. Check the specifications for exact requirements.
