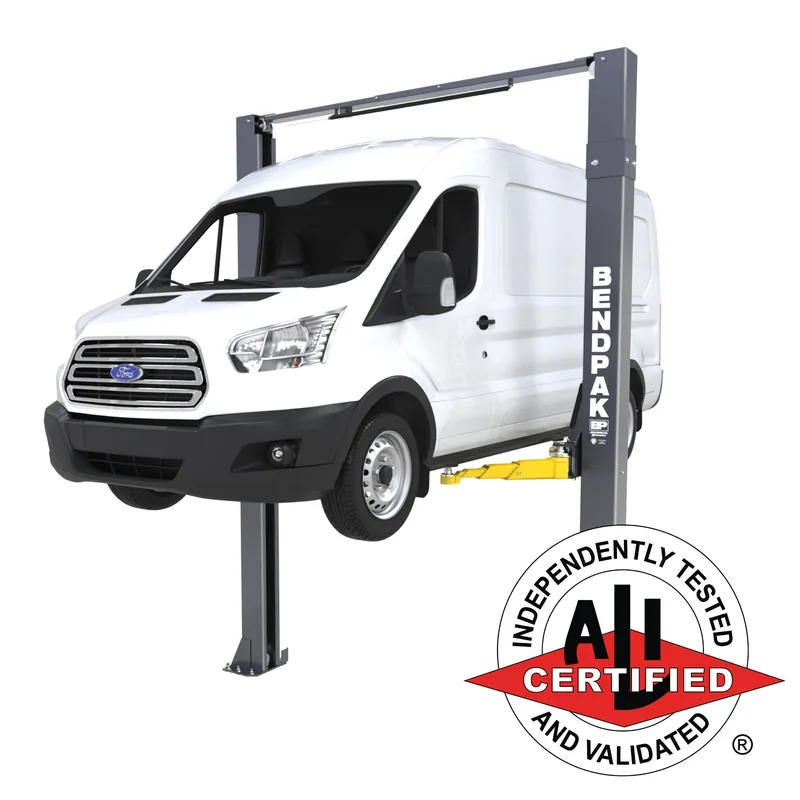

BendPak 10APX-181 Two-Post Car Lift - 10,000-lbs. Capacity - 181-in. Extended Height

Tall-Vehicle Clearance with High-Rise BendPak Power

The BendPak 10APX-181 Two-Post Car Lift is the tallest version in this 10AP high-rise group, pairing 10,000 lbs. of lifting capacity with a 79.5-inch lifting height and a 181-inch overhead beam. It is built for shops that need the extra overhead clearance to service taller vehicles, including high-roof cargo vans, while still benefiting from the AP Series arm design, safety systems, and adaptable clearfloor layout.

For technicians who spend long days under raised vehicles, the 10APX-181 creates a more comfortable service environment without giving up the flexibility of a two-post lift. It keeps the low-profile arm access, Bi-Metric™ positioning, triple-telescoping reach, and reinforced safety engineering that make the 10AP Series a strong fit for modern repair operations.

Extended Overhead Clearance with AP Series Safety Engineering

The 181-inch overhead beam is the key reason to choose the 10APX-181 over the standard 10APX. Shops that regularly work around taller body styles, high-roof vans, and larger vehicles gain more overhead space while still using a 10,000-lb. two-post platform designed for efficiency, operator safety, and heavy service demands.

The lift is engineered with modern vehicle service in mind, including EVs and heavier vehicles that introduce more stress on lift components. High tensile-strength steels, wide column spacing, and safety-critical design enhancements help technicians handle changing vehicle weights and lift-point layouts with more confidence.

Automatic Arm Restraints and Low-Pro™ Lifting Access

BendPak’s Automatic Swing Arm Restraint System secures the lift arms with a forged-steel design that provides full 360-degree load-holding grip and more than 2,000 lbs. of side-force resistance. This helps reduce the chance of unplanned arm movement when vehicle balance changes during service, component removal, or installation.

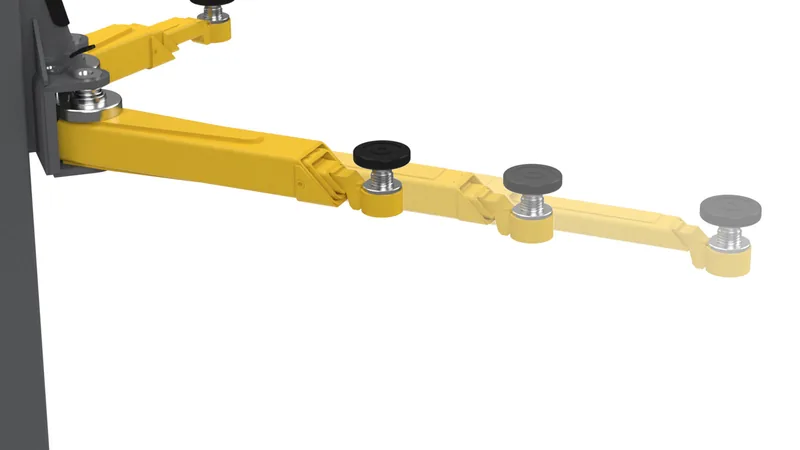

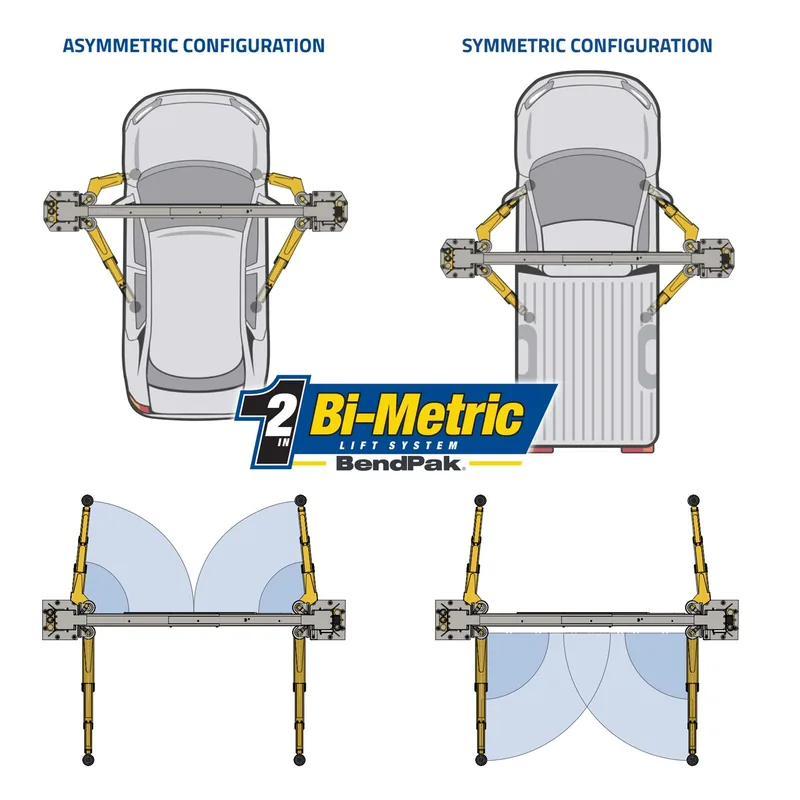

Patented triple-telescoping nested swing arms offer more positioning range by retracting shorter and extending farther than traditional two-post lift arms. Low-Pro™ arm channels and dropped-end pad receivers help access low chassis-height vehicles, while Bi-Metric™ arms allow symmetric or asymmetric loading depending on the vehicle and job.

Tall-Lift Durability for Professional Repair Bays

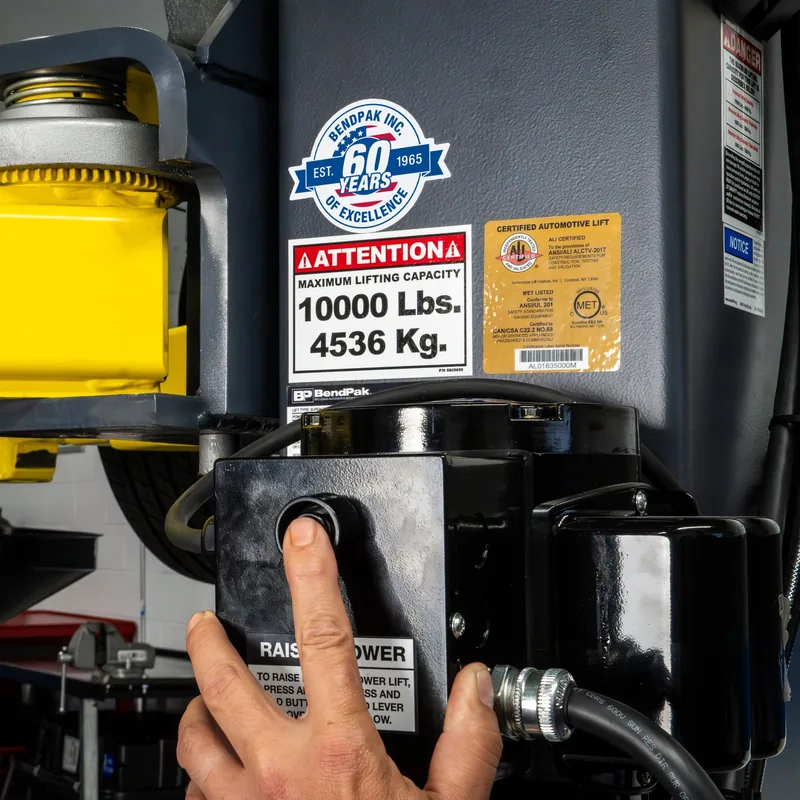

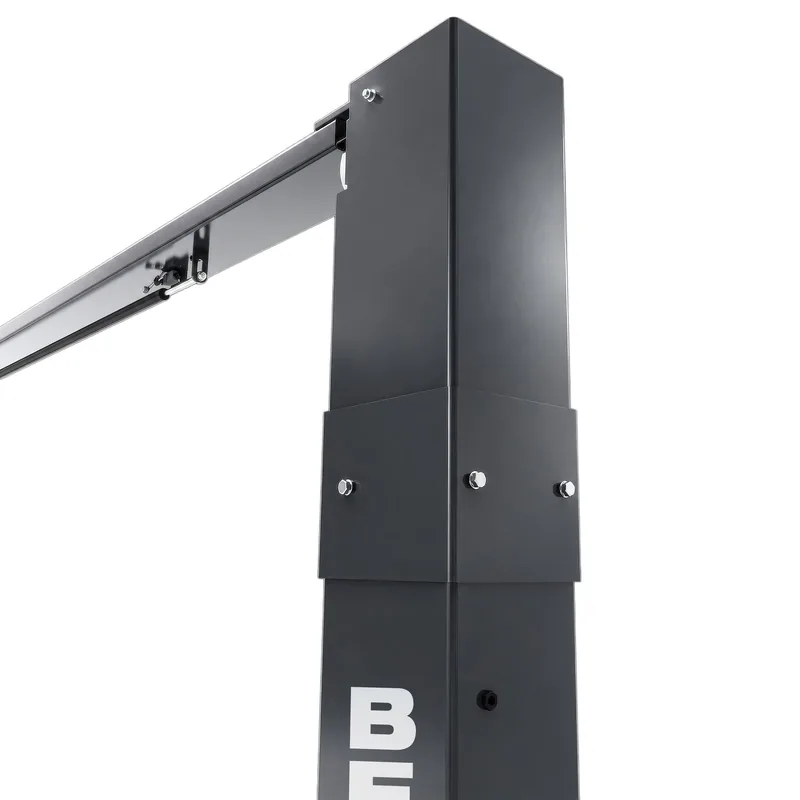

The 10APX-181 is built with dual hydraulic direct-drive cylinders, an electric hydraulic HVLP power system, self-lubricating Dura-Glide UHMW polyethylene bearings, high-strength galvanized equalizing cables, and safety locks in each column spaced every 3 inches. A single-point safety release helps simplify descent, while the padded overhead shutoff bar adds another layer of protection during lifting.

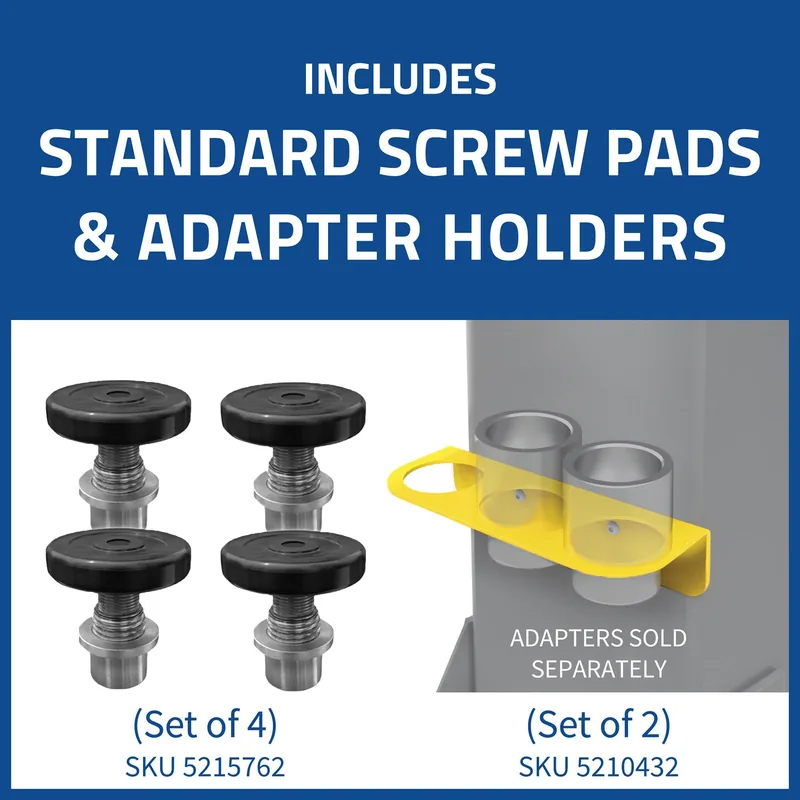

Double-telescoping screw pads help operators level and secure vehicles at the proper lift points, and optional stackable adapters can increase vertical pad placement when needed. With a durable powder coat finish and ALI certification, the 10APX-181 is built for shops that want maximum overhead clearance in the 10AP high-rise family.
