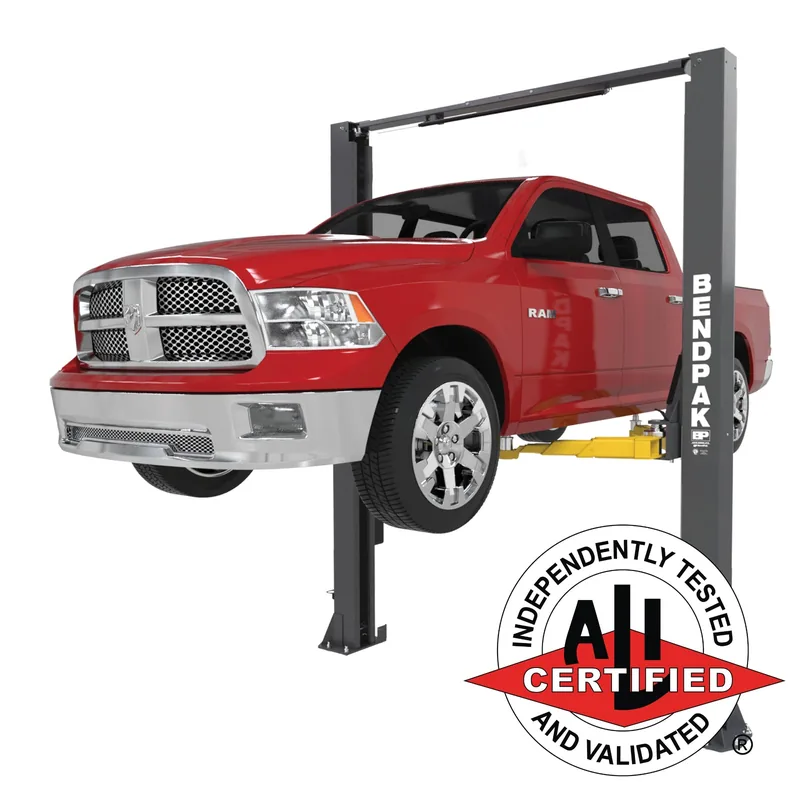

BendPak 10APX Two-Post Car Lift - 10,000-lbs. Capacity - High-Rise

More Working Height for Modern Vehicle Service

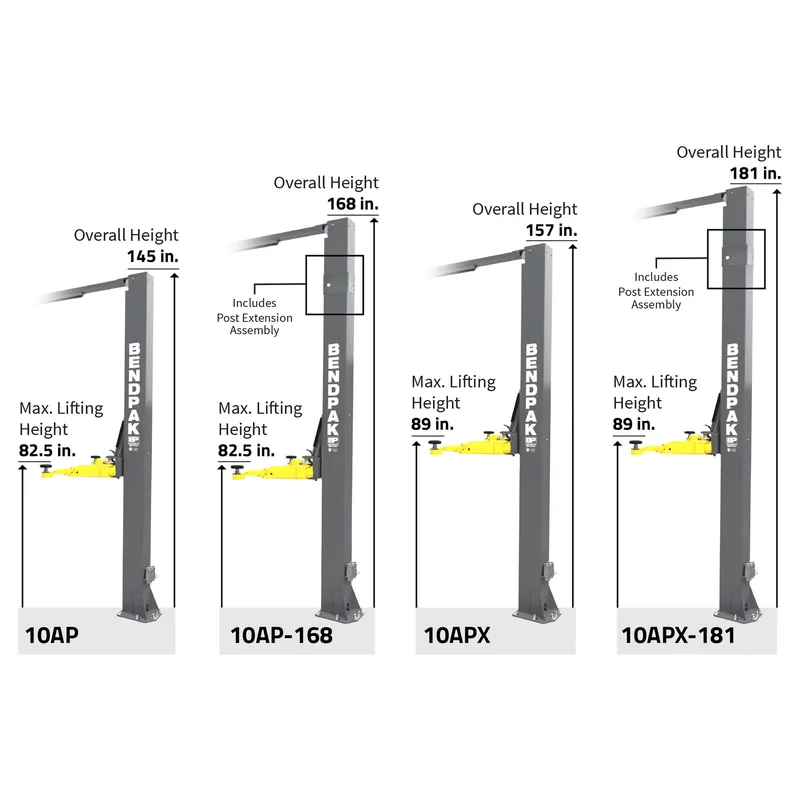

The BendPak 10APX Two-Post Car Lift is the high-rise version of the 10AP platform, built for technicians who want more working height under the vehicle. With 10,000 lbs. of lifting capacity, a 79.5-inch lifting height, and a 157-inch overhead beam, the 10APX gives shops added vertical room for service work while preserving the AP Series strengths in safety, arm reach, and installation flexibility.

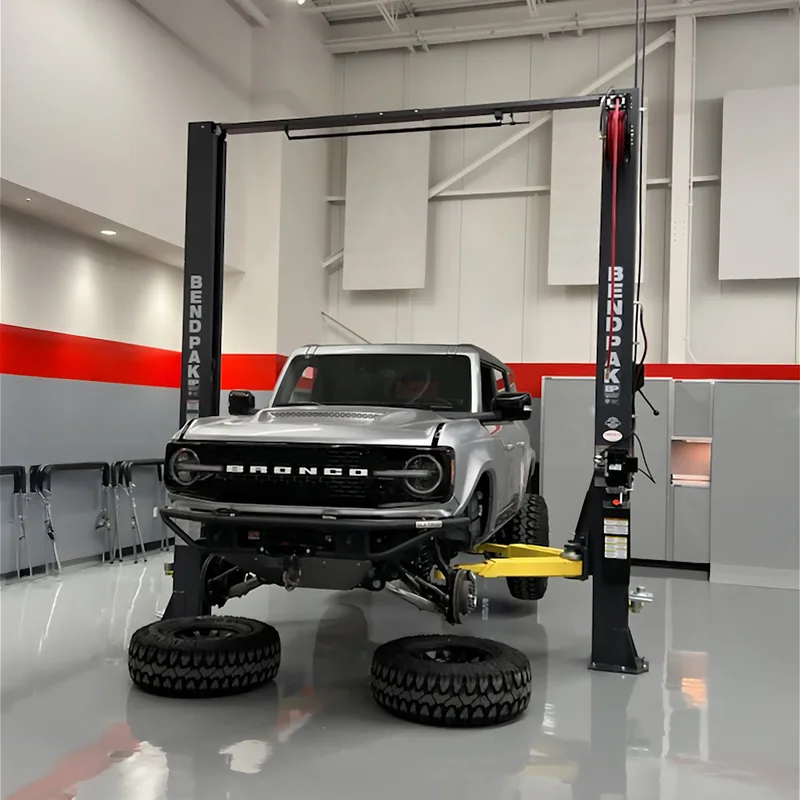

This high-rise two-post lift is designed for repair facilities that want comfortable access under cars, trucks, SUVs, and many modern EVs. It combines adaptable clearfloor installation, wide or narrow drive-thru configuration, Bi-Metric™ arms, Low-Pro™ swing arm design, and BendPak’s patented safety systems into one shop-focused lifting package.

Engineered Around Modern Vehicles and EV Service

The 10APX was developed as vehicles continue to get heavier, more complex, and more demanding to service. Modern EVs, reinforced vehicle structures, and outer-positioned lifting points create new challenges for two-post lifts, especially when heavy components are removed and the vehicle’s center of gravity changes.

BendPak answers that challenge with high tensile-strength steel in critical load-holding components, extra-wide column spacing, low-profile arms, and increased arm travel. The result is a high-rise two-post lift that gives technicians better under-car access and more versatile support positioning for traditional vehicles and emerging EV service needs.

ASARS and Triple-Telescoping Arms for Confident Positioning

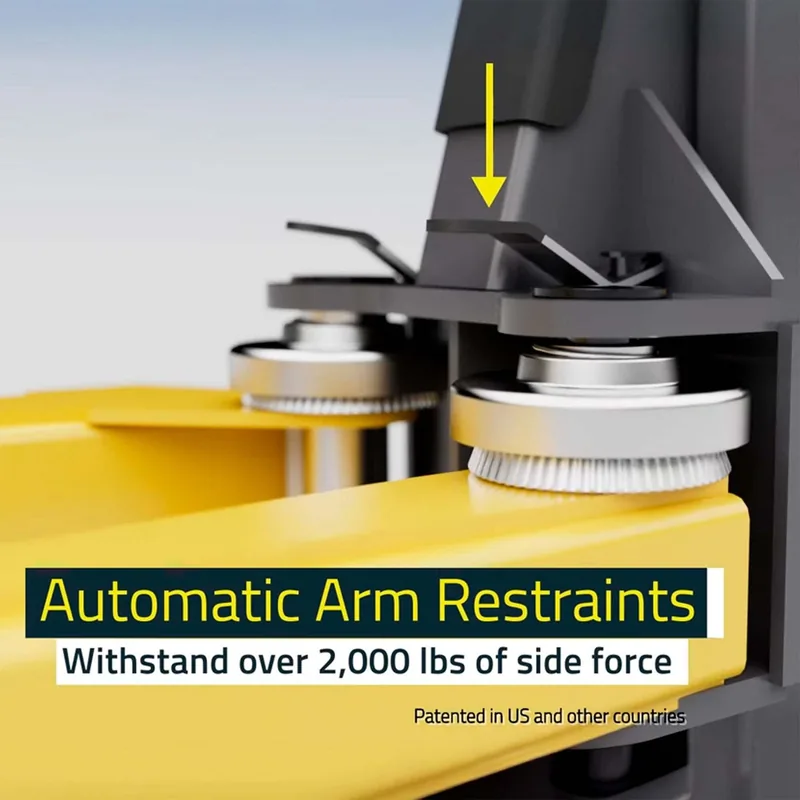

The 10APX features BendPak’s Automatic Swing Arm Restraint System to keep lift arms firmly positioned during service. With 360 degrees of load-holding grip and more than 2,000 lbs. of side-force resistance, ASARS helps prevent unplanned swing-arm movement when vehicle balance changes during loading, drivetrain work, or heavy service operations.

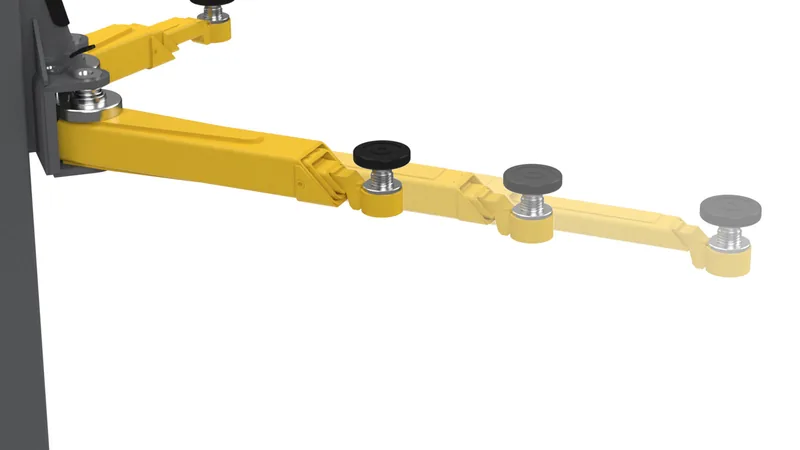

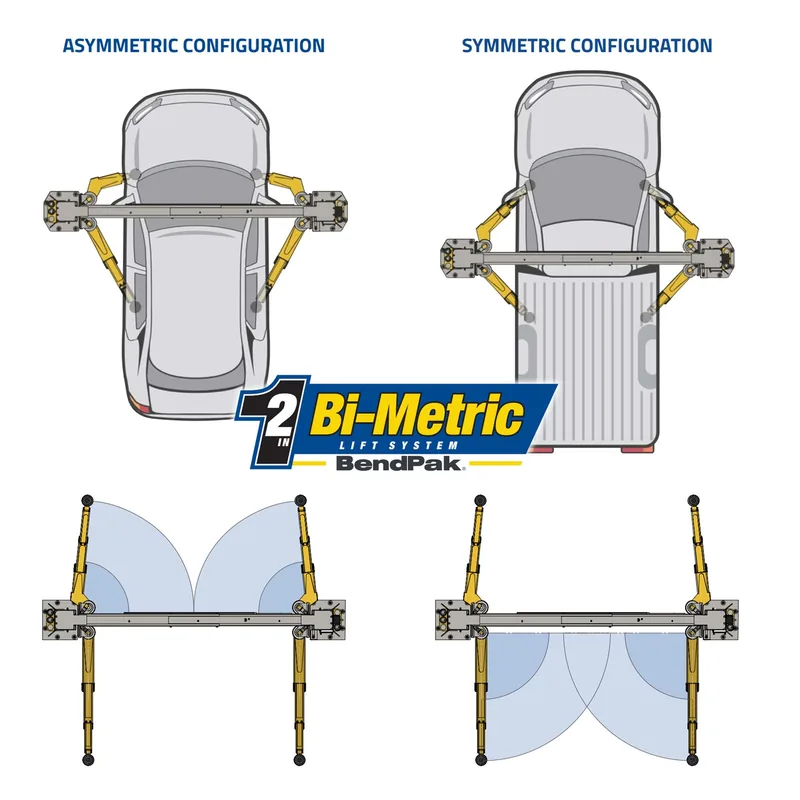

Patented triple-telescoping nested swing arms retract shorter and extend farther than traditional arms, creating more lift-point access across different vehicle sizes and body styles. Low-Pro™ arm geometry helps reach lower chassis-height vehicles, while Bi-Metric™ arm positioning supports both symmetric and asymmetric lifting.

High-Rise AP Series Durability with Streamlined Operation

The 10APX uses dual hydraulic direct-drive cylinders, an electric hydraulic HVLP power system, oversized tall carriages, high-strength galvanized equalizing cables, and self-lubricating Dura-Glide UHMW polyethylene bearings. Safety locks in each column are spaced every 3 inches, and the single-point safety release simplifies descent without forcing operators to walk around the lift.

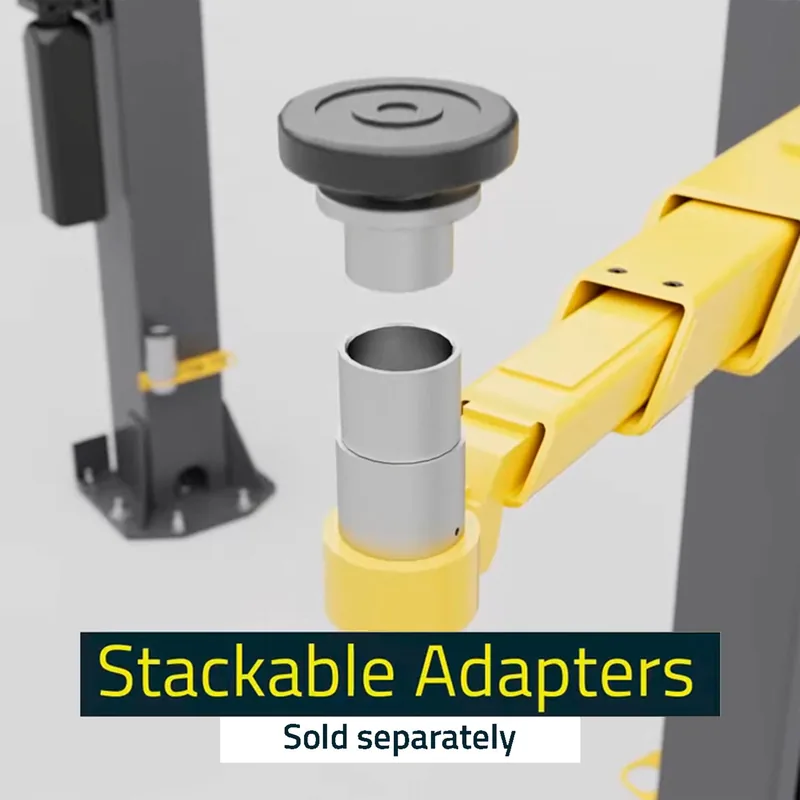

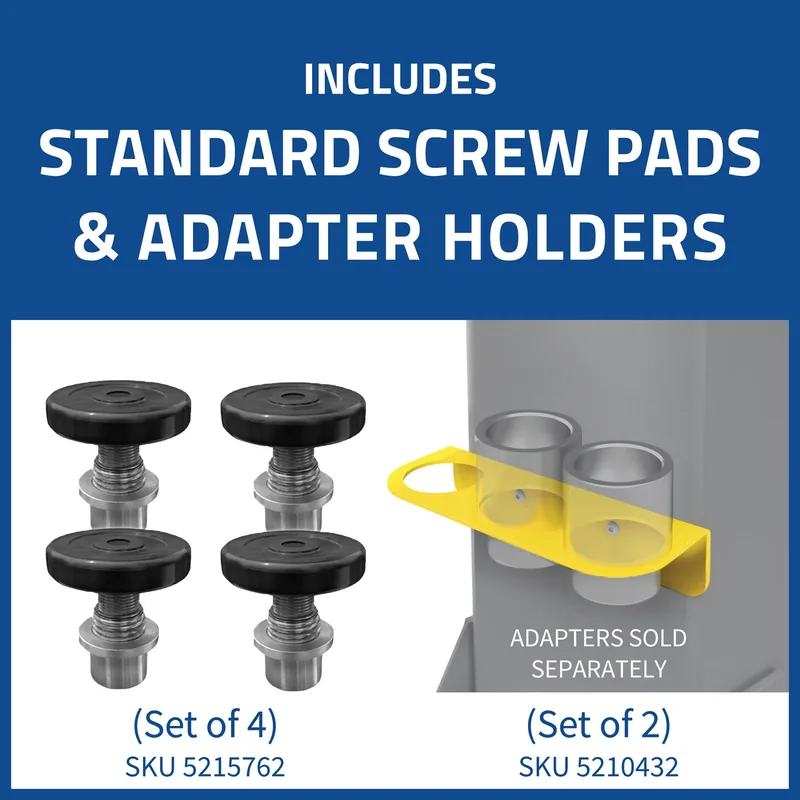

Double-telescoping screw pads with polyurethane contact surfaces help technicians fine-tune frame engagement, while optional stackable adapters offer extra vertical reach when needed. A durable powder coat finish, padded overhead safety shutoff bar, expandable top beam, and ALI certification make the 10APX a high-rise lift built for serious shop use.
