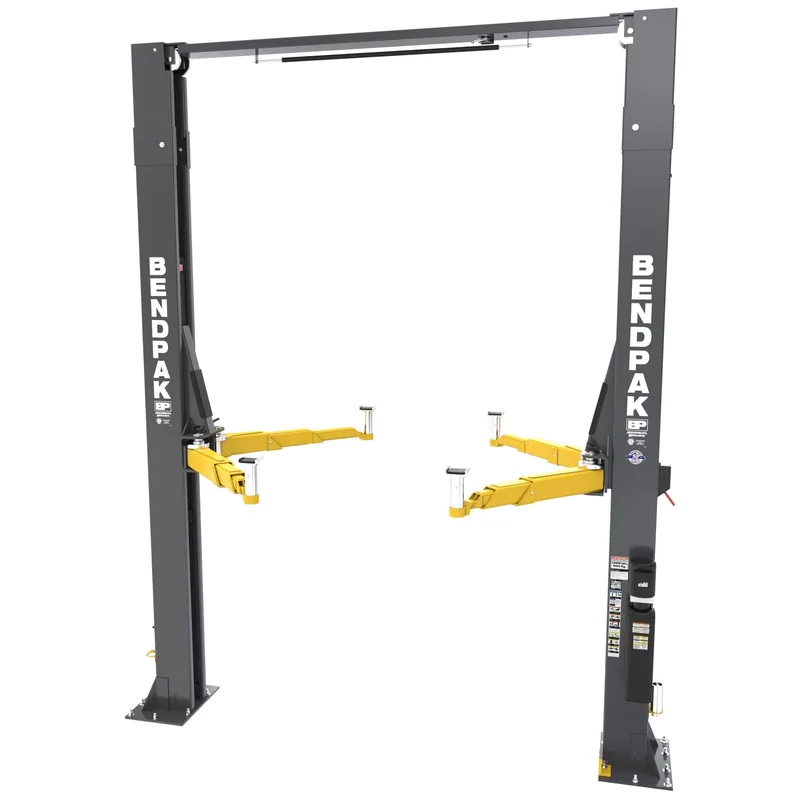

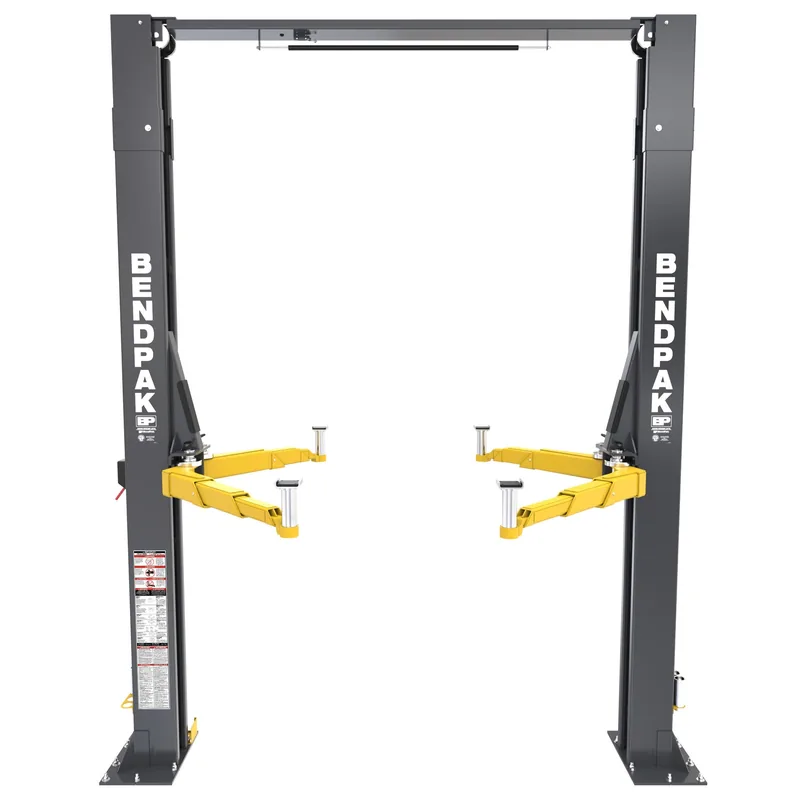

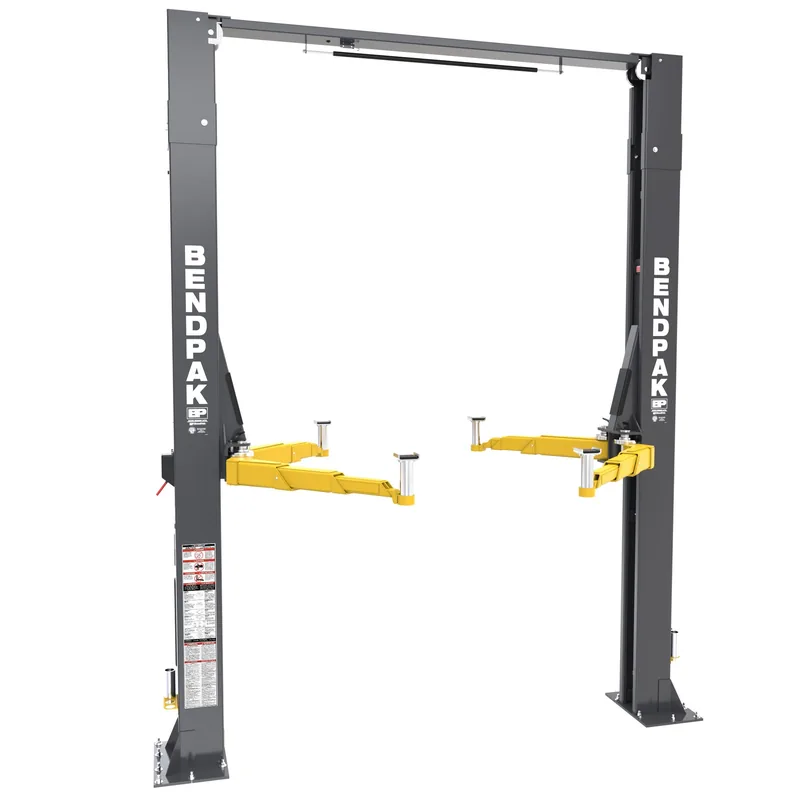

BendPak 12APX-192 Two-Post Car Lift - 12,000-lbs. Capacity - High-Rise - 192-in. Extended Height

Extended-Height Reach for Taller Service Demands

The BendPak 12APX-192 takes the 12,000-lb. AP Series high-rise platform and adds extended 192-inch overall height for shops that need more overhead clearance. It is built for service bays that regularly handle taller trucks, vans, commercial vehicles, SUVs, and modern EV platforms where a standard overhead height can limit access or make positioning more difficult.

This is the model to choose when the 12APX capacity and arm technology are right, but the bay needs more vertical room. The clearfloor design keeps the workspace open, while Bi-Metric™ lifting, Low-Pro™ triple-telescoping arms, double-telescoping screw pads, and ASARS arm restraints help technicians service a wide range of vehicles with more control.

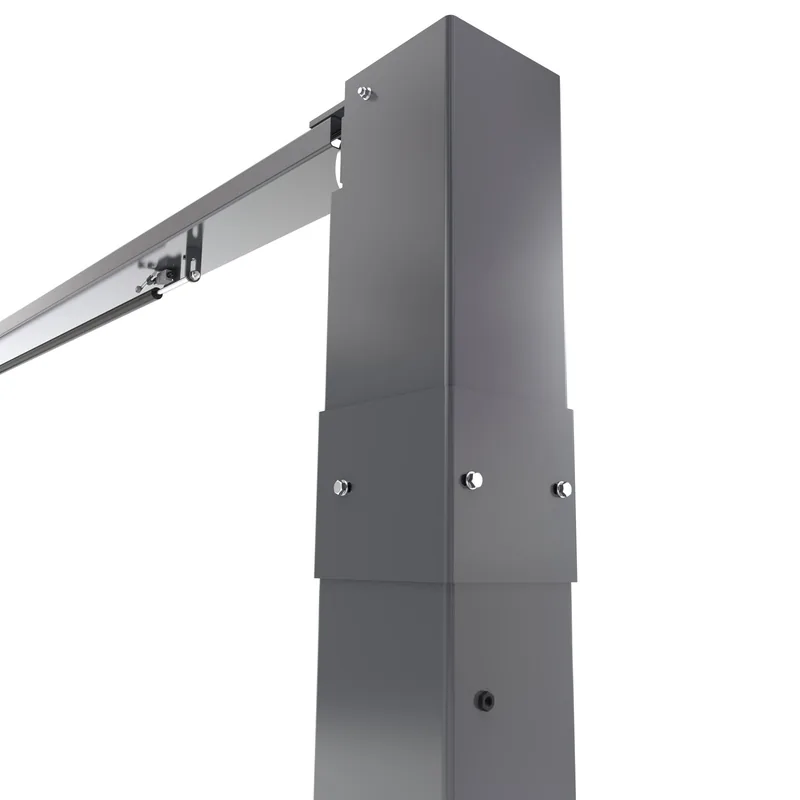

192-Inch Extended Height for More Overhead Clearance

The extended-height structure is the defining advantage of the 12APX-192. Its taller overhead layout gives technicians more room around raised vehicles and helps accommodate high-roof vehicles that can feel cramped under shorter two-post lift configurations.

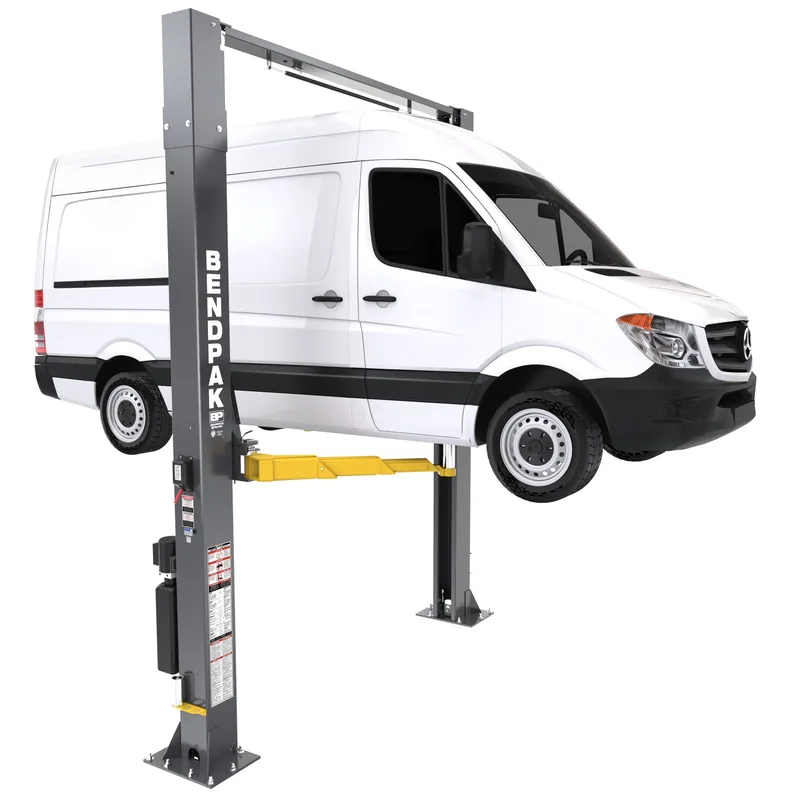

For shops planning around trucks, vans, fleet vehicles, work vehicles, and EVs, the added height gives the bay more long-term flexibility. It preserves the 12,000-lb. lifting capacity and AP Series features while improving clearance for the kinds of vehicles that keep getting taller and heavier.

ASARS, Low-Pro™ Arms, and Modern Lift-Point Access

BendPak’s Automatic Swing Arm Restraint System helps secure arm position with a forged-steel, 360-degree gripping design that withstands more than 2,000 lbs. of side force. That added holding power is especially useful when vehicle balance changes during service or when technicians are working around larger, heavier platforms.

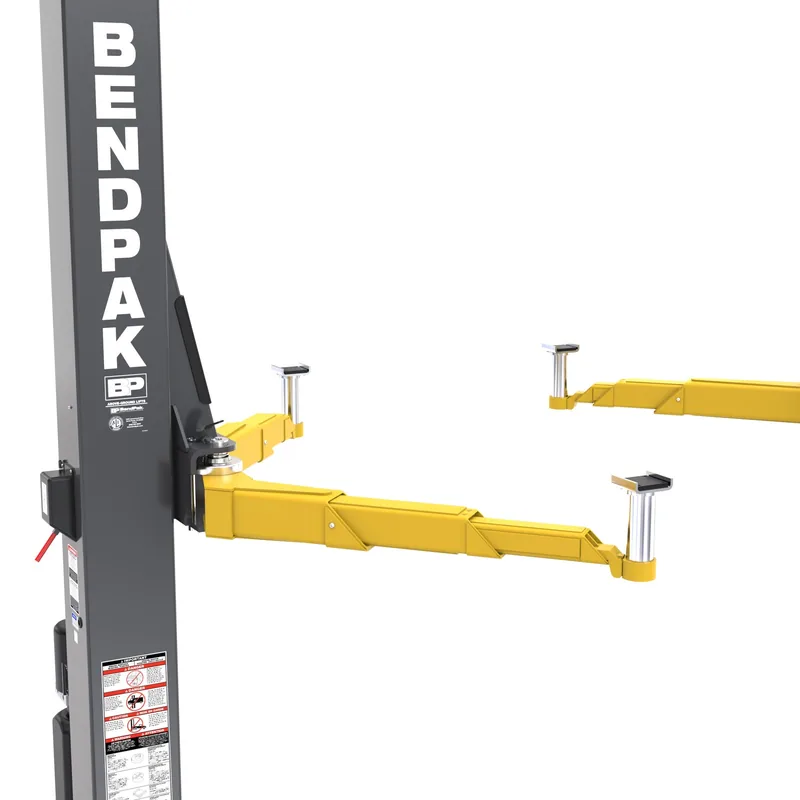

Four triple-telescoping swing arms give the 12APX-192 more reach than conventional arm designs, while Low-Pro™ drop-end arms help access lower lifting points. Bi-Metric™ loading supports symmetric or asymmetric setup, allowing shops to adapt the lift to the vehicle instead of forcing every job into the same approach.

Clearfloor Service Bay with Direct-Drive Hydraulic Performance

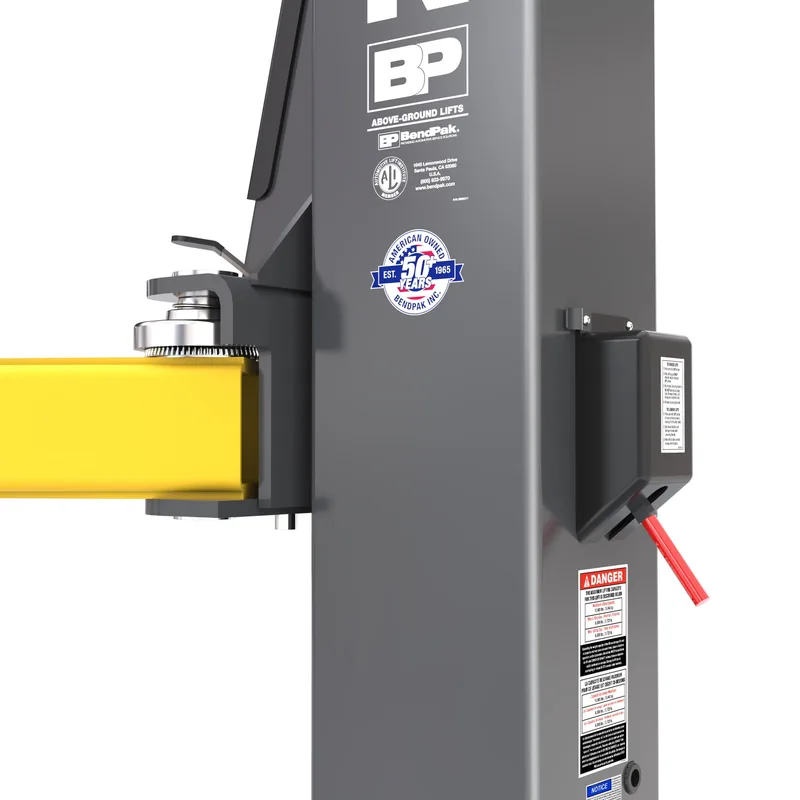

Dual hydraulic direct-drive cylinders provide smooth lifting power, while safety locks in each column, single-point lock release, galvanized equalizing cables, and a padded overhead safety shutoff bar support daily shop confidence. Self-lubricating Dura-Glide UHMW load bearings reduce routine maintenance while helping the carriages move smoothly.

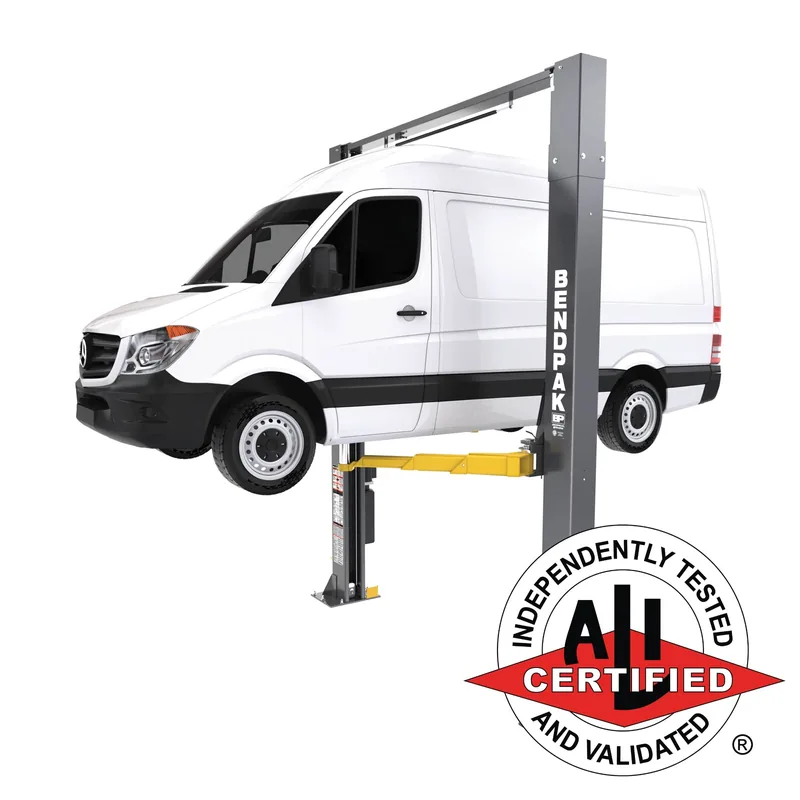

With ALI certification, heavy-duty construction, durable powder coat finish, and the added reach of an extended-height overhead beam, the 12APX-192 is built for service departments that need a taller 12,000-lb. two-post lift without giving up clearfloor access or modern arm control.
