BendPak HD-9SW Four-Post Lift - 9,000-lbs. Capacity

Four-Car Parking Without the Garage Tetris

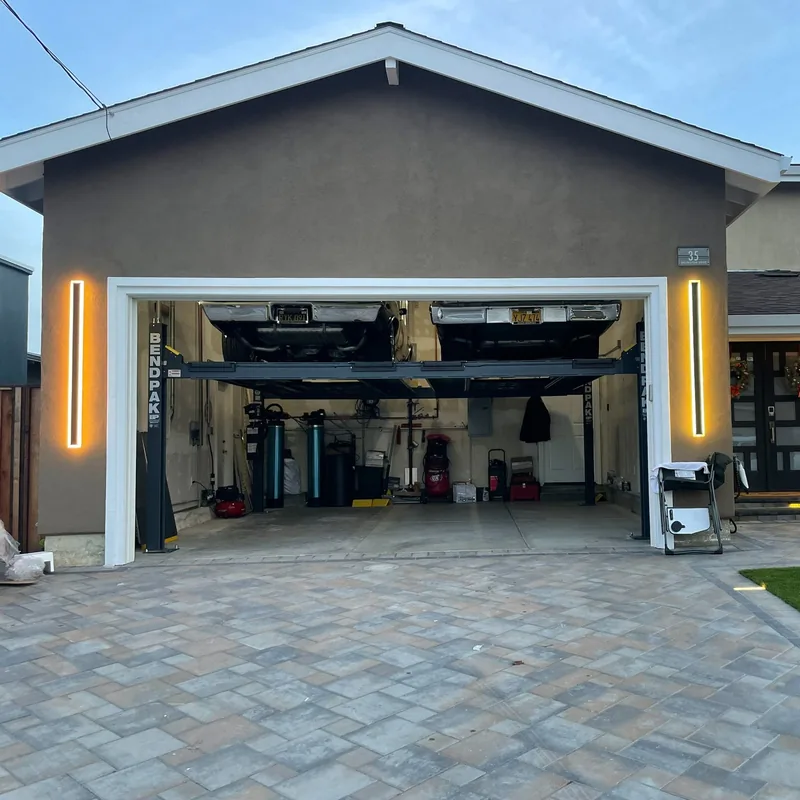

The BendPak HD-9SW Four-Post Lift is built for one of the biggest garage problems there is: not enough protected parking. With its super-wide dual-platform layout, this 9,000-lb. four-post lift lets users park up to four vehicles in the space that would normally hold two, making it a serious upgrade for collectors, homeowners, and shops that need more indoor storage without adding more building.

This is not just a parking-only stacker. The HD-9SW uses open-center runways, adjustable inside runway positioning, and accessory-ready rails so it can support vehicle storage, maintenance, and service work. For garages where daily drivers, weekend cars, trucks, and projects are all fighting for space, the HD-9SW turns a crowded floor plan into a much smarter four-post lift setup.

Super-Wide Dual Platform Design for Parking and Service

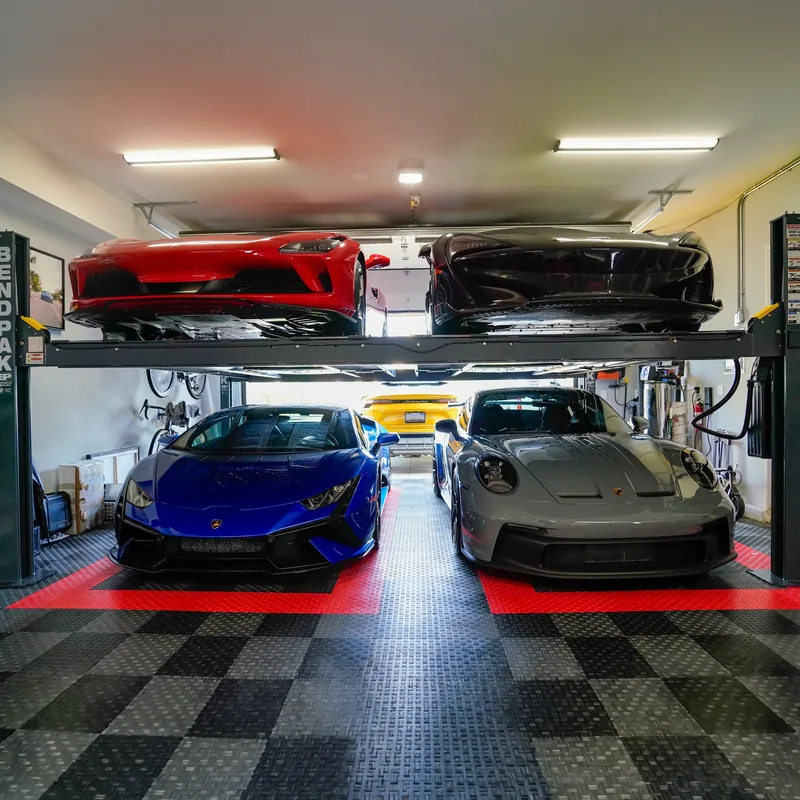

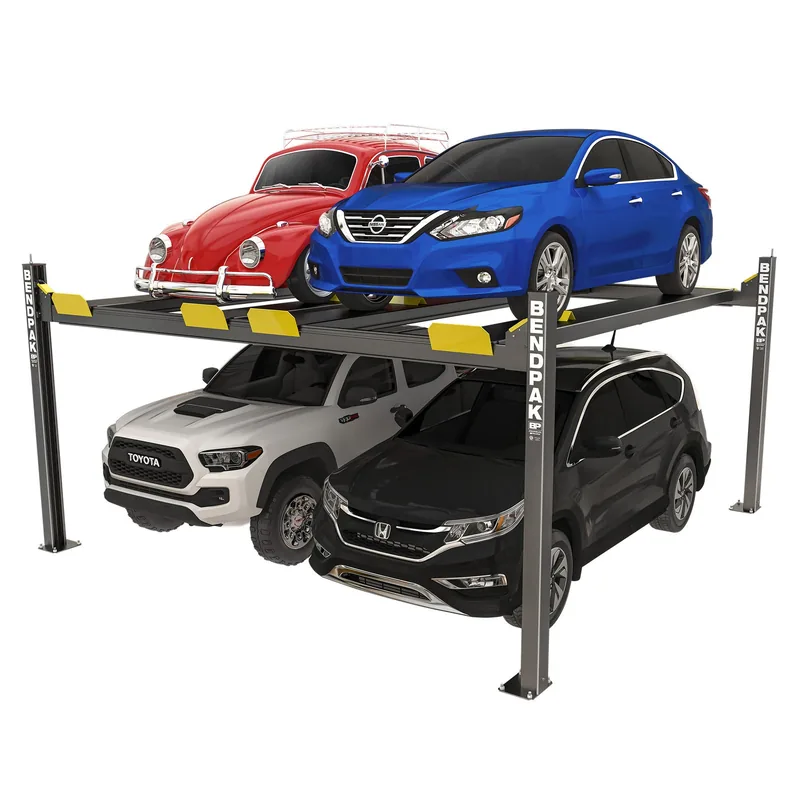

The HD-9SW is designed around a double-wide four-post lift configuration with four runways and 192-inch post-to-post clearance. That extra width gives users room to park two vehicles across the top platform while still preserving useful space below for additional vehicles or shop workflow.

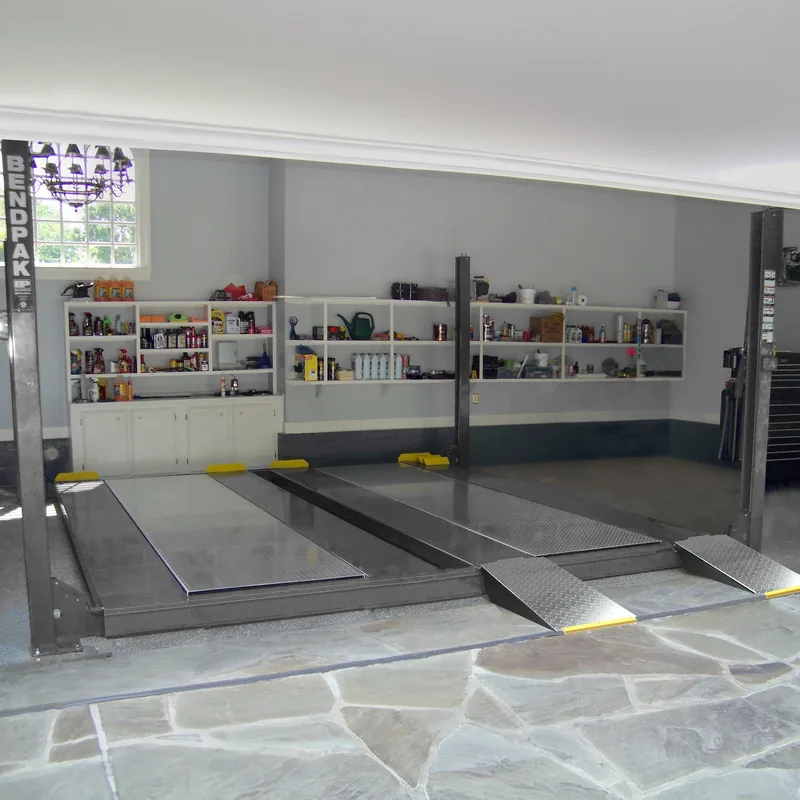

Shorter runways make the HD-9SW a strong fit for smaller spaces compared with extended-length double-wide models, while the inside runways adjust for different tread widths. This gives users more flexibility when loading different cars, trucks, and SUVs onto the lift.

Cable, Sheave, and Hydraulic Systems Built for BendPak Durability

BendPak equips the HD-9SW with an electric-hydraulic power system, a single hydraulic cylinder mounted underneath the runway, and fully enclosed lifting cables, safety locks, and sheaves. Dual-hub cable sheaves help reduce friction on the cables, while oversized sheave diameter helps reduce cable fatigue during repeated lifting cycles.

Heavy-duty 3/8-inch aircraft cable, oversized self-lubricating cable rollers, rugged 1.25-inch roller axles, and internal anti-sway slider blocks all support smooth, steady platform movement. The result is a double-wide four-post lift that feels purpose-built for regular parking, storage, and service use.

Safety Locks, Accessories, and Real Garage Flexibility

The HD-9SW includes multi-position safety locks in each column, adjustable lock ladders, push-button pneumatic safety release, and independent backup slack-cable safety latches. Removable approach ramps add drive-under clearance, and the durable matte runway finish supports daily use in serious garages and shop environments.

Optional drive-thru ramps, drip trays, solid decks, and 4,500-lb. air-hydraulic rolling bridge jacks help users configure the lift around the way they actually work. The HD-9SW is built to park more, store smarter, and keep service capability within reach.
