BendPak HDS14XT Four-Post Lift - 14,000-lbs. Capacity

High-Rise Four-Post Clearance with 227.5-Inch Runway Reach

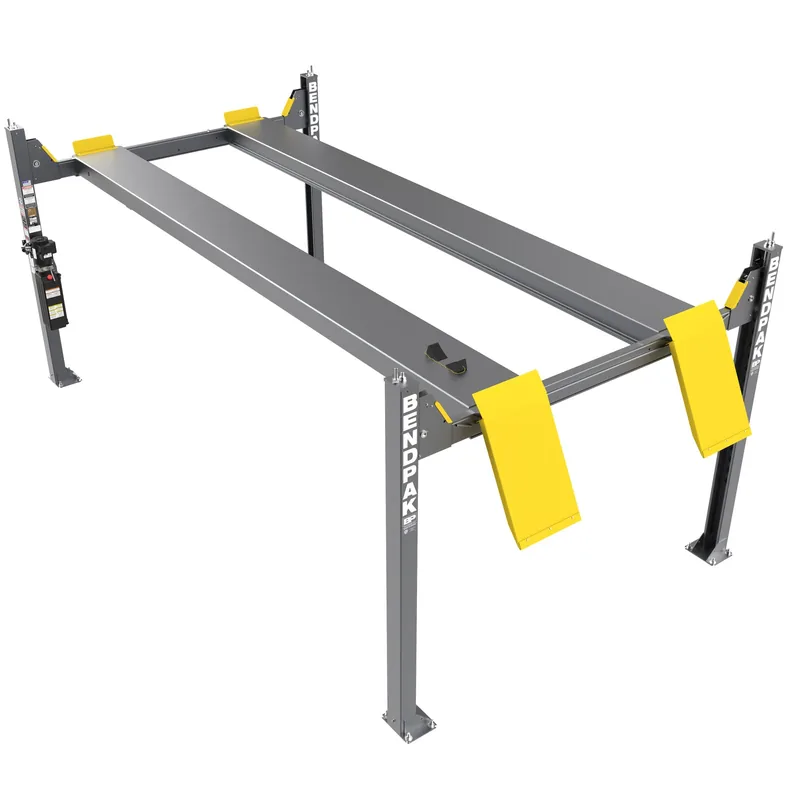

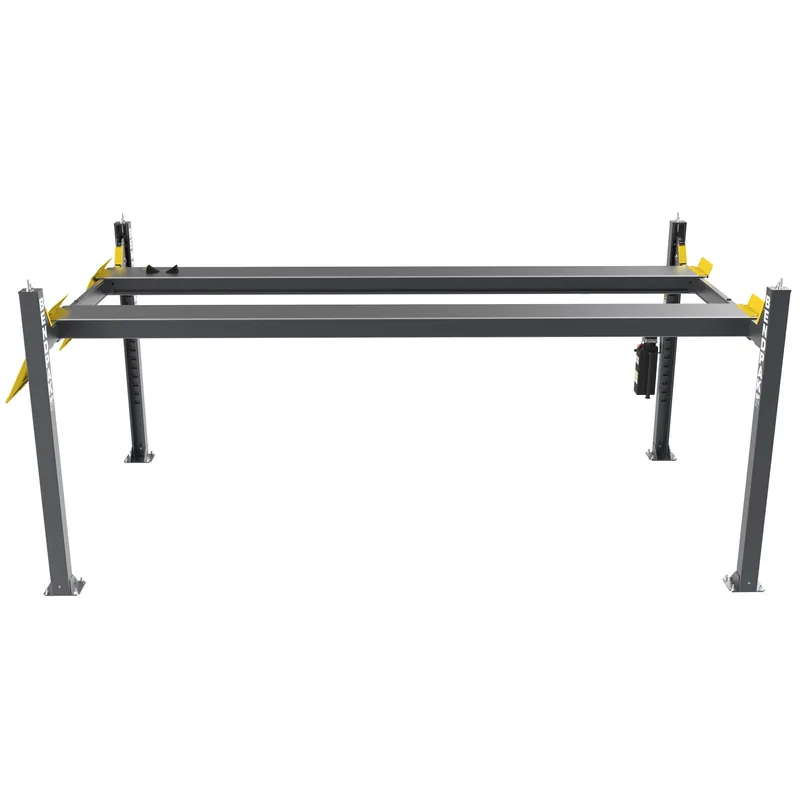

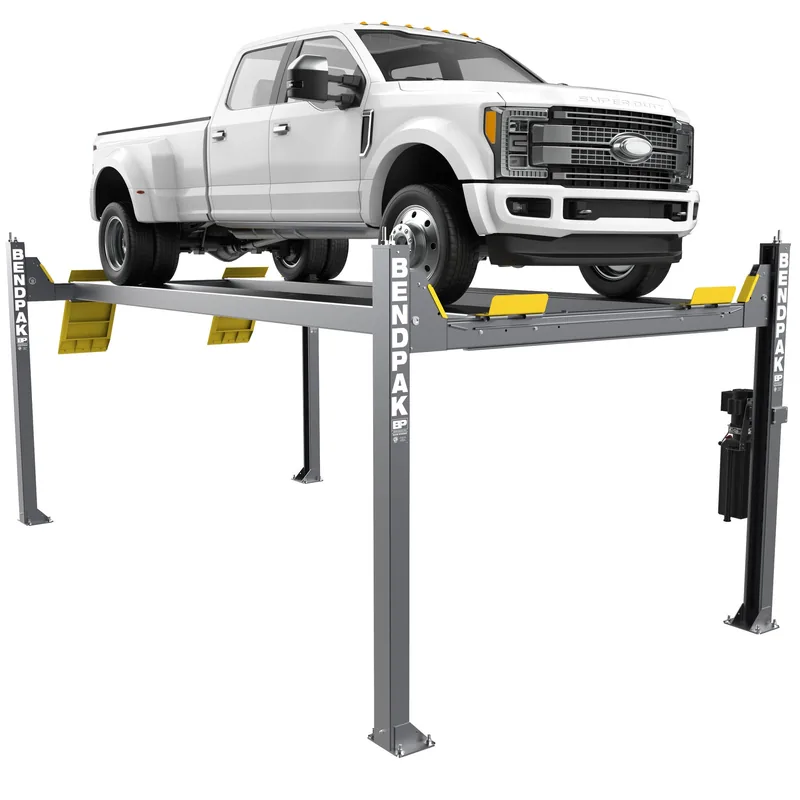

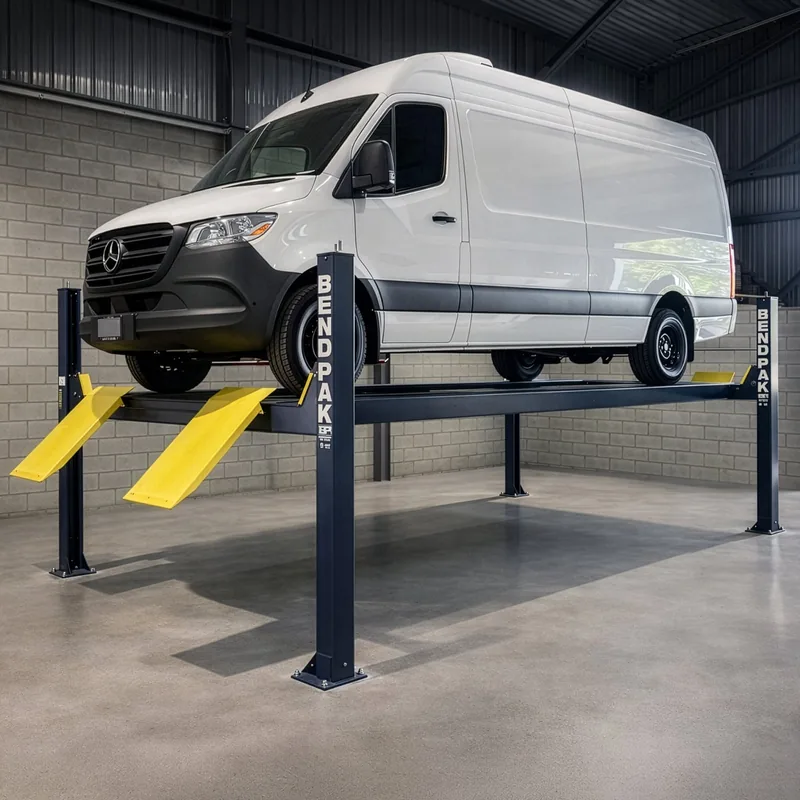

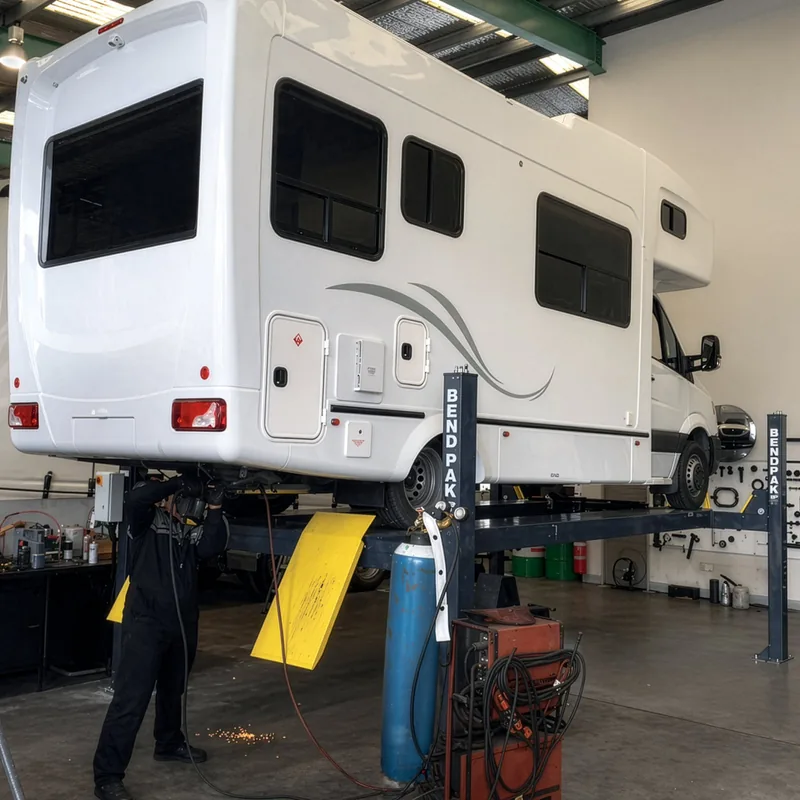

The BendPak HDS-14XT Four-Post Lift is built for shops that need more runway, more rise, and more room to work under larger vehicles. With a 14,000-lb. lifting capacity, extended 227.5-inch runways, and a higher lifting profile, this high-rise four-post lift is designed for limousines, extended trucks, large SUVs, and other vehicles that demand more space than a standard runway setup can provide.

Its 83-inch maximum rise and 89.5-inch maximum lifting height give technicians the overhead clearance they need to stand more comfortably during undercar service. Less crouching and reaching means better workflow, reduced strain, and a more productive service bay for serious commercial shops.

Extended Four-Post Lift Design for Large Vehicle Service

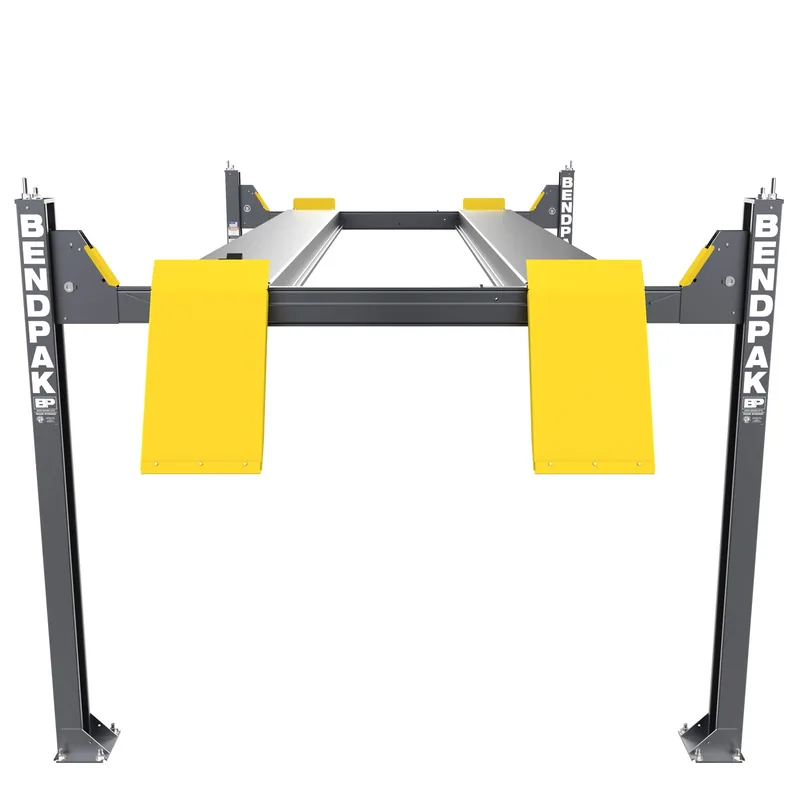

The HDS-14XT gives long-wheelbase vehicles the runway support they need while maintaining the stability BendPak four-post lifts are known for. Extended approach ramps help reduce the angle of ascent, making the lift friendlier to low-clearance vehicles and helping protect customer cars during drive-on loading.

Runways include rail kits for optional accessories, allowing shops to configure the lift around their work. Whether the job calls for storage, inspections, undercar maintenance, or added wheel-service capability with optional rolling bridge jacks, the HDS-14XT gives larger vehicles a proper place to land.

Oversized Sheaves, Aircraft Cables, and Built-In Durability

The HDS-14XT is engineered for long-term durability with massive 10.5-inch dual-hub cable sheaves that help reduce cable wear over time. Four heavy-duty 1/2-inch stainless-steel aircraft-quality lifting cables provide the strength, abrasion resistance, and fatigue protection required for daily shop lifting.

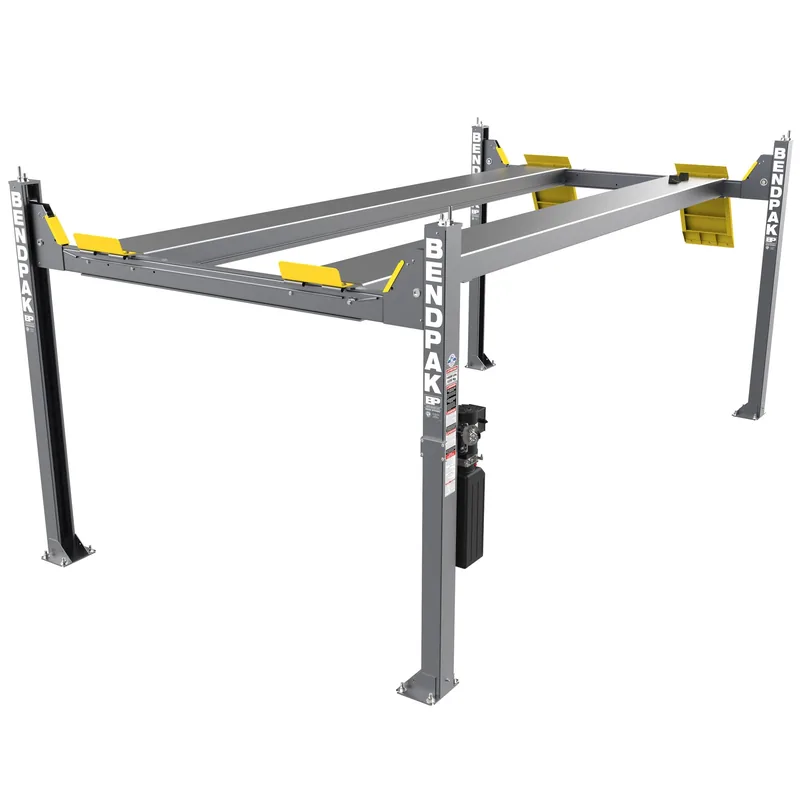

A single hydraulic cylinder beneath the runway powers the lift, while internal anti-sway slider blocks help support smooth, secure movement in each column. Heavy-duty base plates and customizable power unit location give installers and shop owners more flexibility when fitting the lift into a real working bay.

ALI Certified Safety for High-Rise Four-Post Lifting

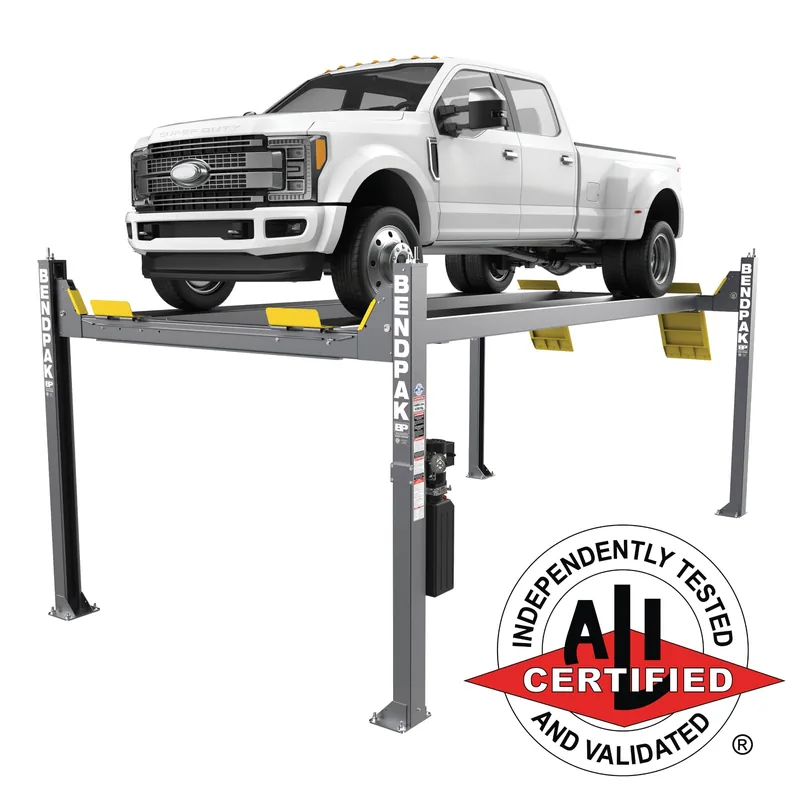

The HDS-14XT is ALI Certified, giving shops added confidence that the lift meets recognized safety and performance standards. Automatic spring-loaded safety locks engage continuously as the lift rises, while adjustable safety ladders help maintain precise runway leveling, even when floors are not perfectly even.

Independent backup slack-cable safety latches add another layer of protection, and the pneumatic push-button safety release makes lowering operations simple and efficient. Fully enclosed cables, sheaves, and safety systems help reduce pinch points while keeping critical components protected during daily use.
