BendPak P9000LTF Flush-Mount Open-Center Pit-Style Low-Rise Lift - 9,000-lbs. Capacity

Zero-Footprint Low-Rise Lift Power for Busy Service Bays

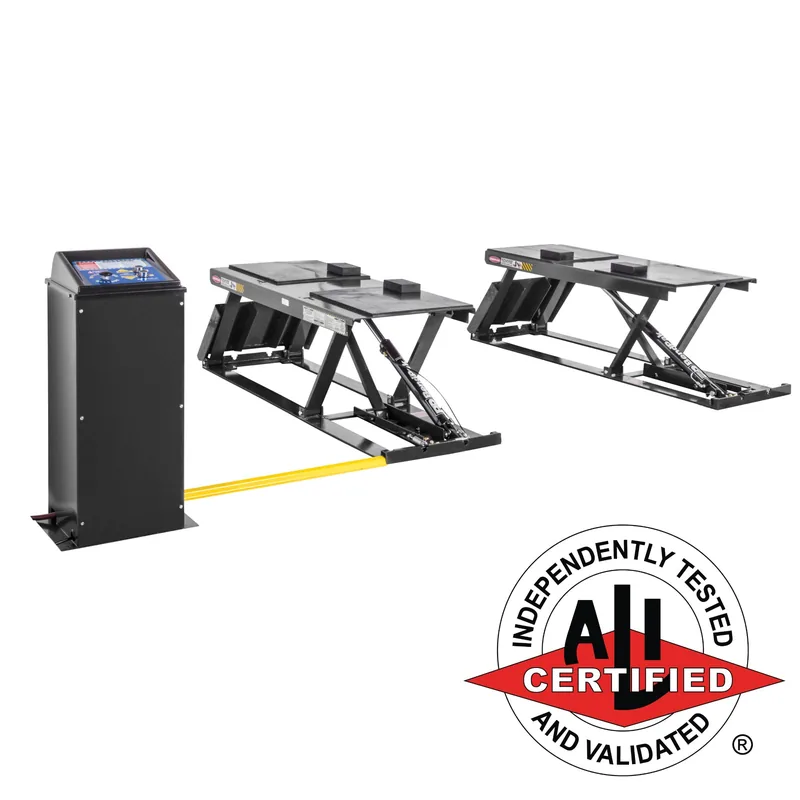

The BendPak P9000LTF Flush-Mount Open-Center Pit-Style Low-Rise Lift brings 9,000 lbs. of lifting capacity into a recessed, drive-over layout that virtually disappears when lowered. Built for fast-lube facilities, repair shops, and high-volume service bays, this flush-mount low-rise lift gives technicians frame-engaging support without leaving bulky equipment in the way.

Its open-center design keeps undercarriage access clear, while the flush-mount configuration preserves shop movement in tight or busy areas. For shops that want low-rise lifting power, clean floor flow, and a more permanent recessed installation, the P9000LTF is the tidy, high-capacity answer.

Flush-Mount Design That Keeps the Bay Open

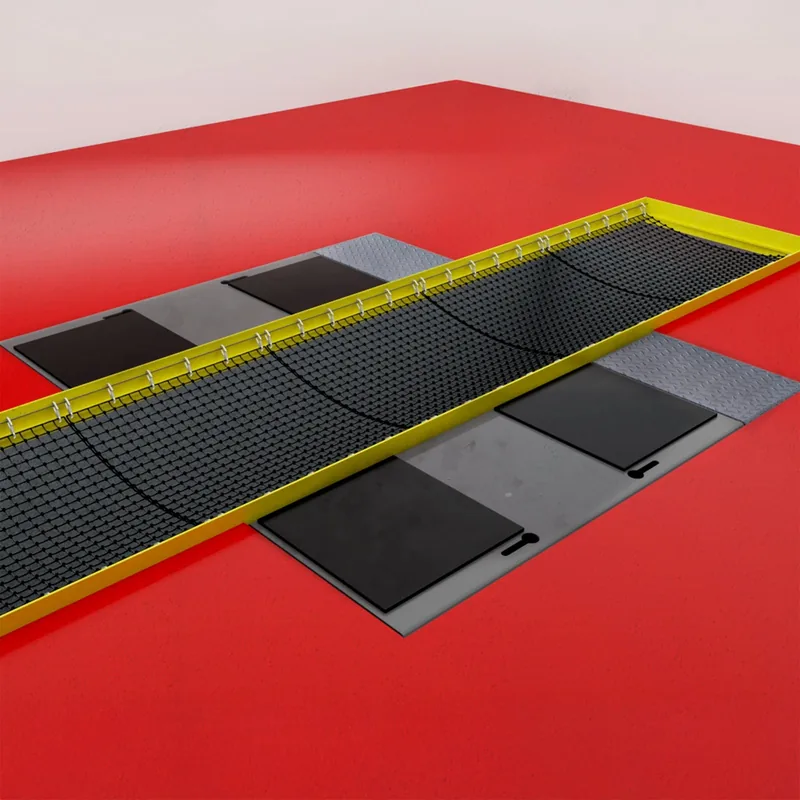

When installed flush with the concrete, the P9000LTF creates a low-profile drive-over service area that stays out of the way until it is needed. This zero-footprint style helps reduce clutter in busy shops and makes vehicle movement easier around tight service lanes.

The lift is especially useful for pit-style operations and facilities that want a recessed drive-over option. It maintains the benefits of low-rise lifting while helping the work area remain clean, open, and easy to navigate.

9,000-lb. Low-Rise Muscle with Pneumatic Safety Locks

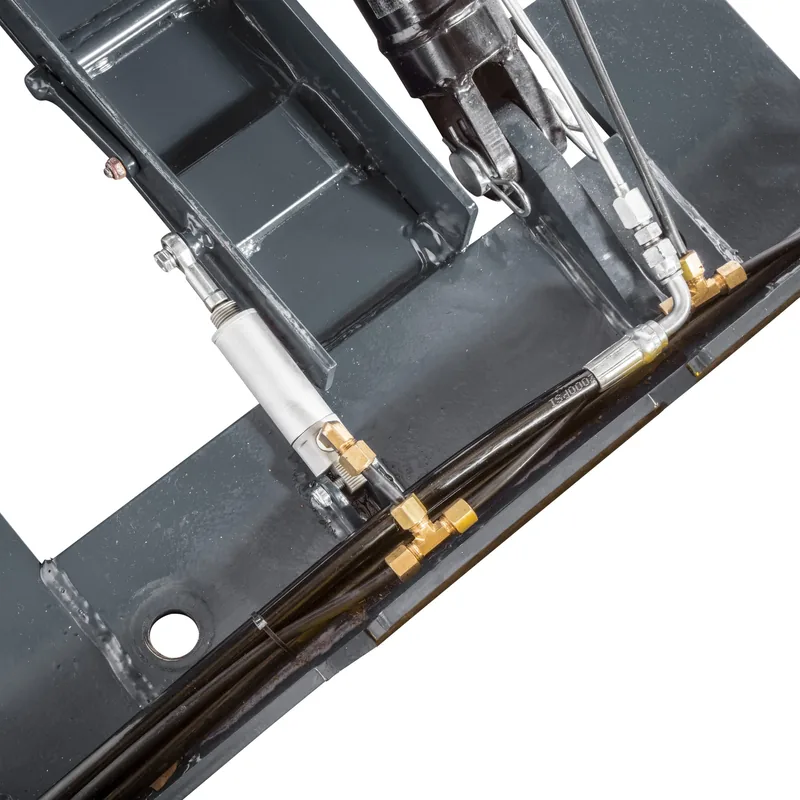

The P9000LTF uses a heavy-duty 1.5 HP electric-hydraulic power unit, dual hydraulic cylinders, and a dual-pump power unit with a built-in proportioning valve to support smooth low-rise lifting. Reinforced parallel lifting arms and reinforced upper lift platforms help support inboard loading for a wider range of service work.

Automatic multi-position safety locks with air release provide remote lock control during operation. The pneumatic release system avoids older spring-style mechanisms and helps maintain safe, efficient lowering in flush-mounted service environments.

Rubber Contact, Optional Arms, and BendPak Durability

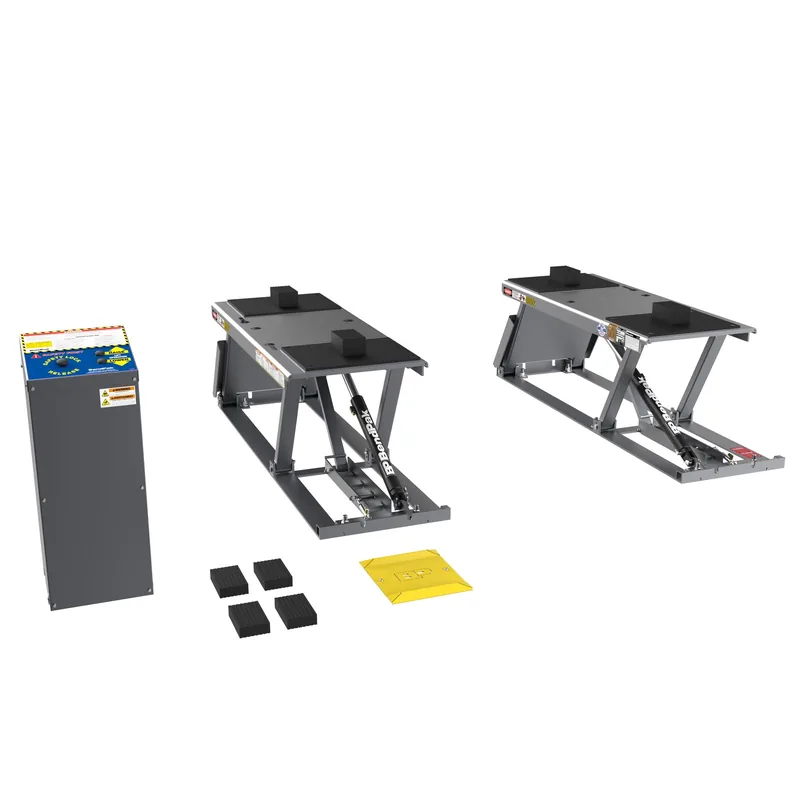

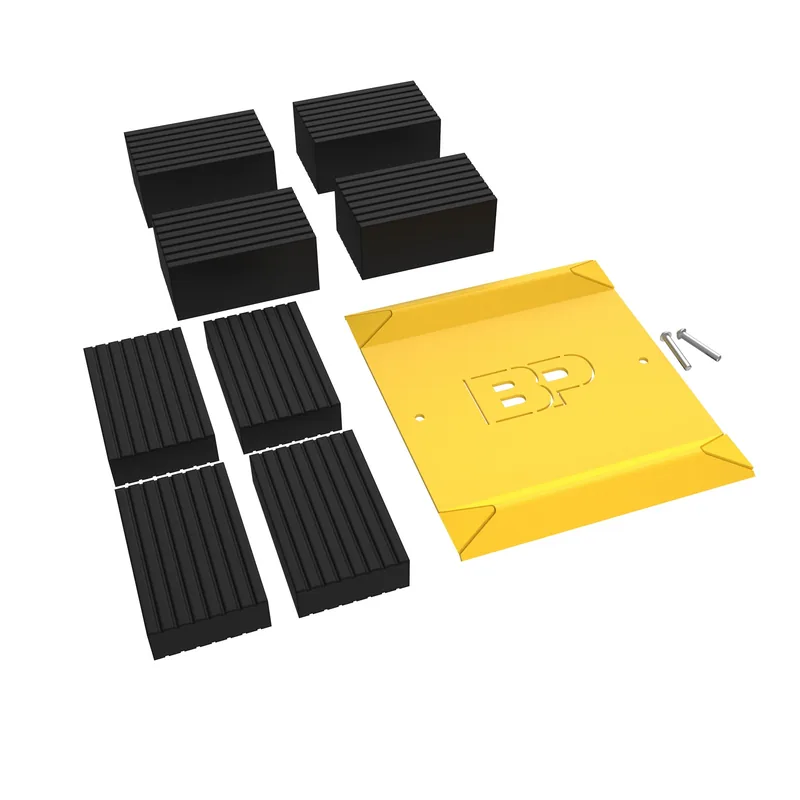

Durable rubber-topped pad surfaces and included rubber lift blocks help protect undercarriages and chassis during setup. For high-stance trucks, SUVs, and longer-wheelbase vehicles, an optional arm kit can provide additional reach, offset lifting, and extra height where needed.

The rugged steel channel frame and powder-coat finish are built for years of shop use. With detailed instructions, safety decals, labels, and service support available, the P9000LTF gives facilities a recessed low-rise lift that works hard without taking over the floor.
