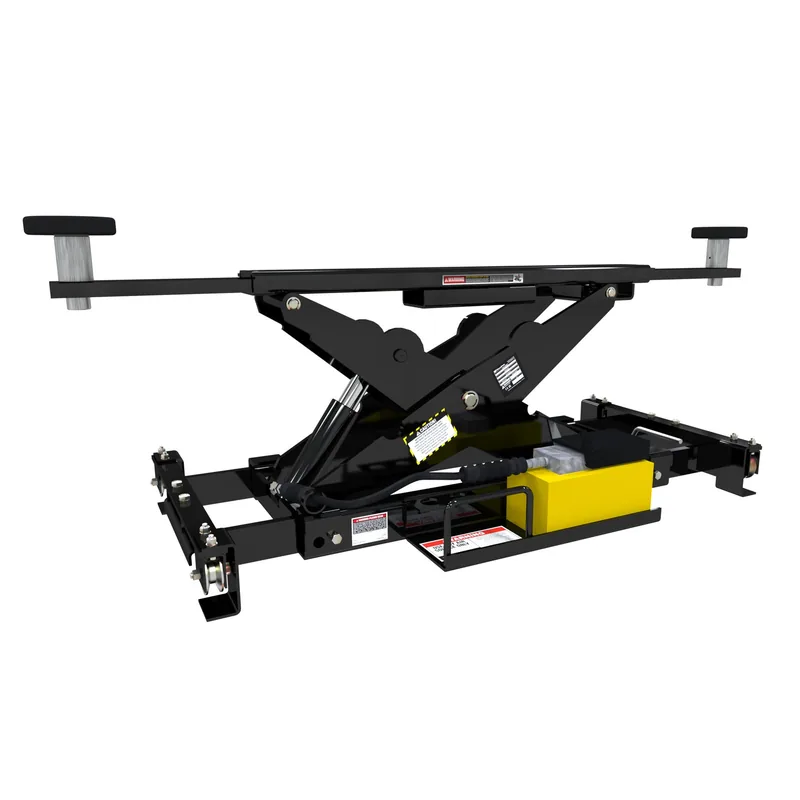

BendPak RJ45LP Low-Profile 4-Post Bridge Jack - 4,500-lbs. Capacity

Low-Profile Rolling Bridge Jack Access for HD-7 and HD-9 Lifts

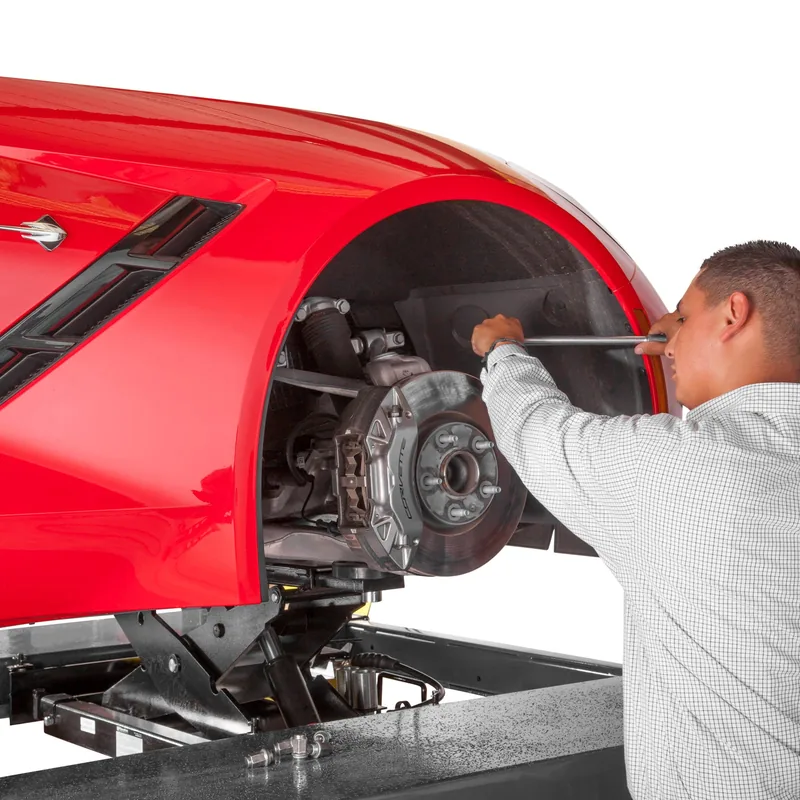

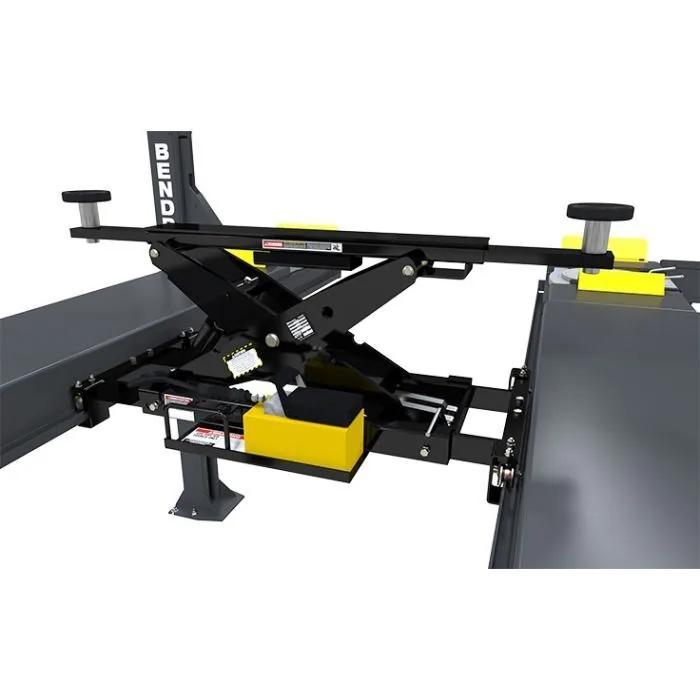

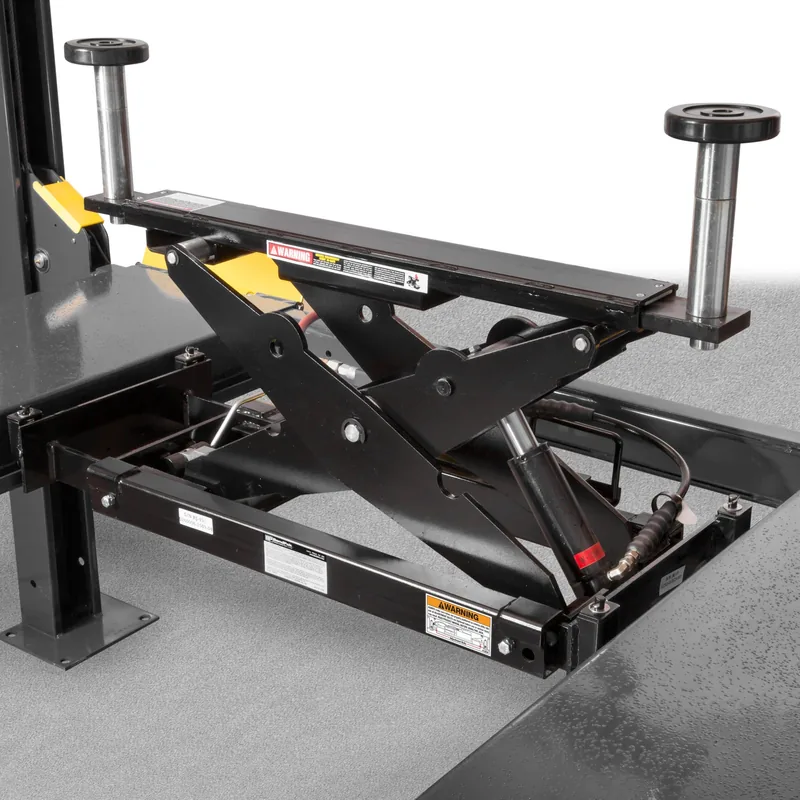

The BendPak RJ45LP Low-Profile Rolling Bridge Jack gives compatible HD-7 and HD-9 series four-post lifts real wheel-service capability in a compact 4,500-lb. package. It is built for shops and serious home garages that want the stability of a four-post lift with the ability to raise the vehicle by the frame for brake work, tire service, suspension access, inspections, and maintenance.

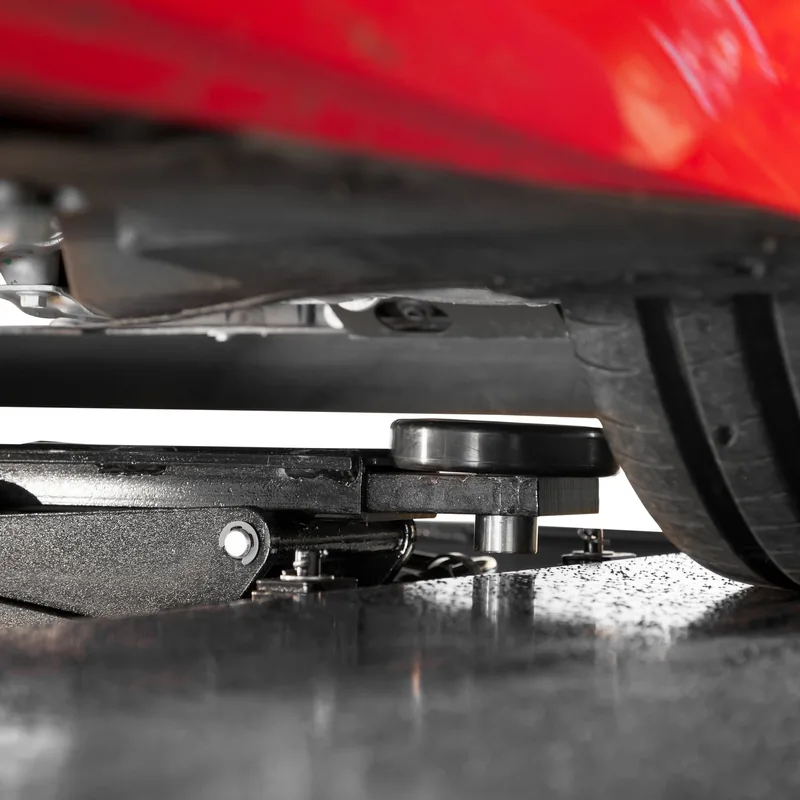

The big reason to choose the RJ45LP is clearance. With a low 4.25-inch minimum drive-over height, wider 61-inch maximum arm reach, and Easy-Roll wheels, this bridge jack is made for low-stance sports cars, modified vehicles, and HD-series lift owners who need more access without adding a separate two-post lift to the bay.

Low-Profile Clearance with Wider Arm Reach

The RJ45LP is closely related to the RJ45W, but it gives users two important advantages for certain vehicle setups. Its lift pads sit at a lower 4.25-inch minimum drive-over height compared with the RJ45W at 4.5 inches, and its maximum arm reach extends to 61 inches compared with the RJ45W at 57 inches.

That combination makes the RJ45LP the better fit when low vehicles, wider lifting points, or modified chassis geometry make clearance and reach more important. It helps bridge the gap between four-post lift convenience and frame-engaging access for vehicles that need a little more room before the real work begins.

Easy-Roll Wheels, Rubber Pads, and Stackable Adapters

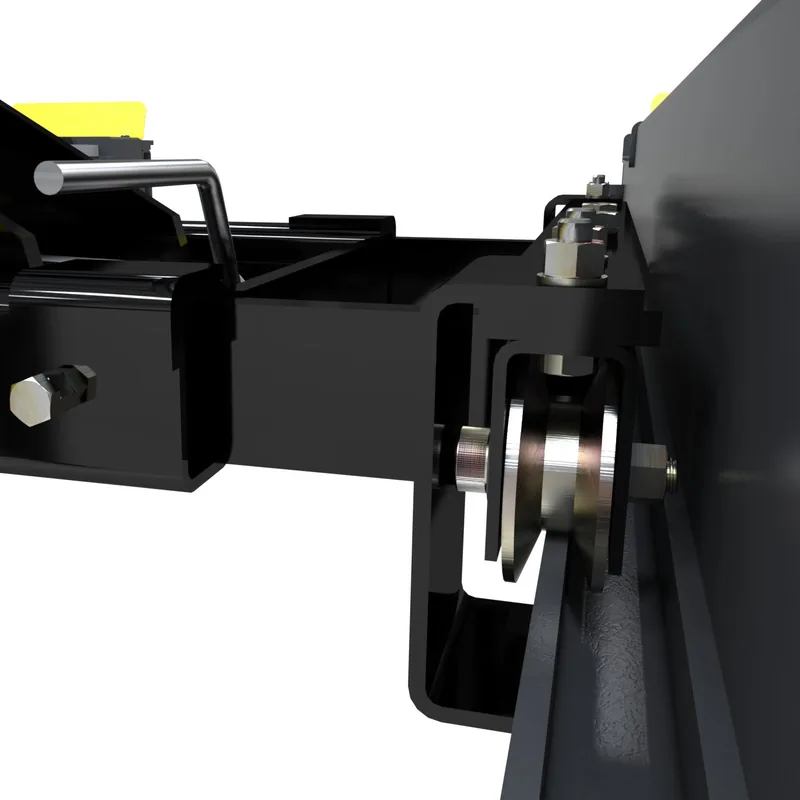

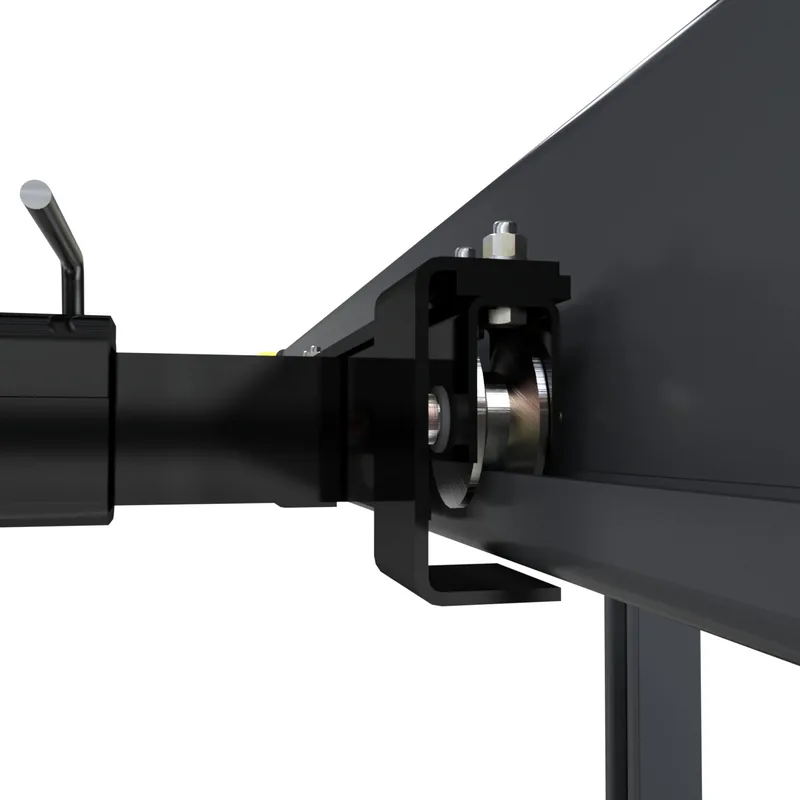

Easy-Roll wheels come standard and fit the runway channels on compatible four-post lift models, giving the RJ45LP smooth travel along the runways for fast positioning. BendPak uses hardened stainless-steel, zinc-plated rollers for durability, helping the jack glide into place instead of dragging across the lift like dead weight.

Non-marring rubber contact pads help protect vehicle lift points, while the included stackable adapters add reach for higher-clearance vehicles. For trucks and SUVs, BendPak also recommends optional frame cradle pads when the frame shape or lifting point calls for more secure engagement.

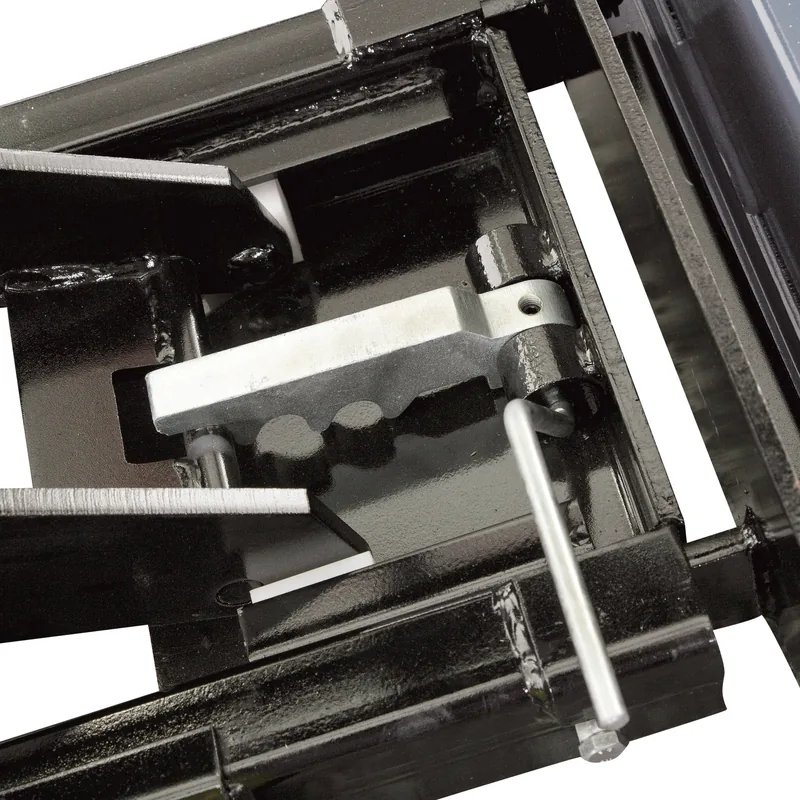

Foot-Controlled Pneumatic-Hydraulic Power with Three Lock Levels

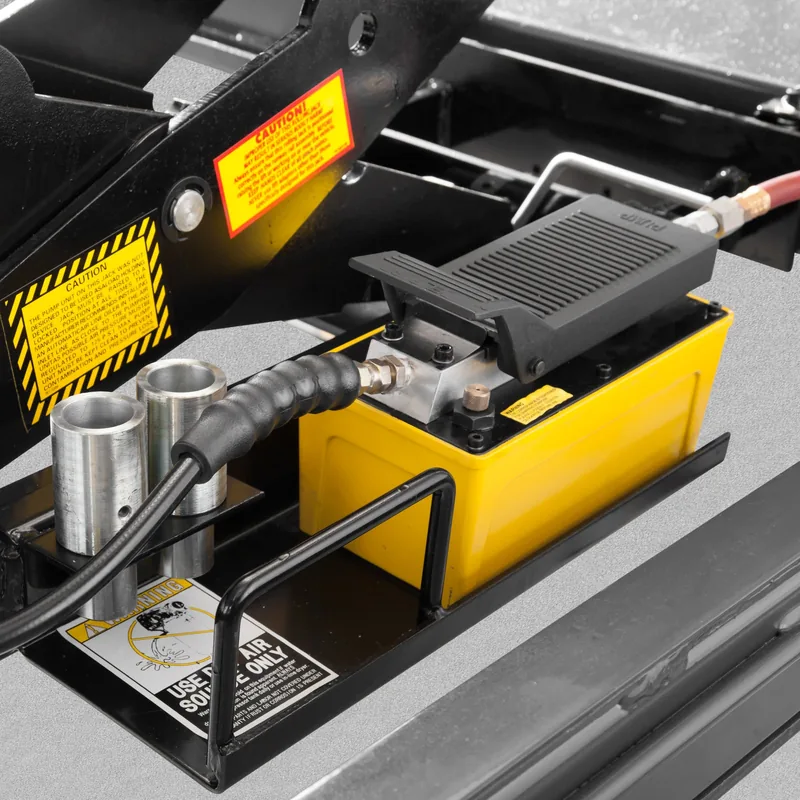

The RJ45LP uses a high-pressure hydraulic power unit with an air requirement of 125 psi and 10 to 20 CFM. The independent power unit is attached directly to the bridge jack and operated with an ergonomic foot pedal, allowing technicians to raise the jack while keeping their hands free for positioning and setup.

Three lock positions make it easier to match the service height to the job. Raise the four-post lift, position the RJ45LP, engage the proper lifting points, and use the bridge jack to lift the wheels clear for tire, brake, and undercarriage service with more control and less compromise.
