BendPak
PL-12000DPS
SKU: 5175552
12,000 Lb. Cap. Parking Lift / Tandem / Independent Platforms / Standard Rise & Short Runways / SPECIAL ORDER
Description

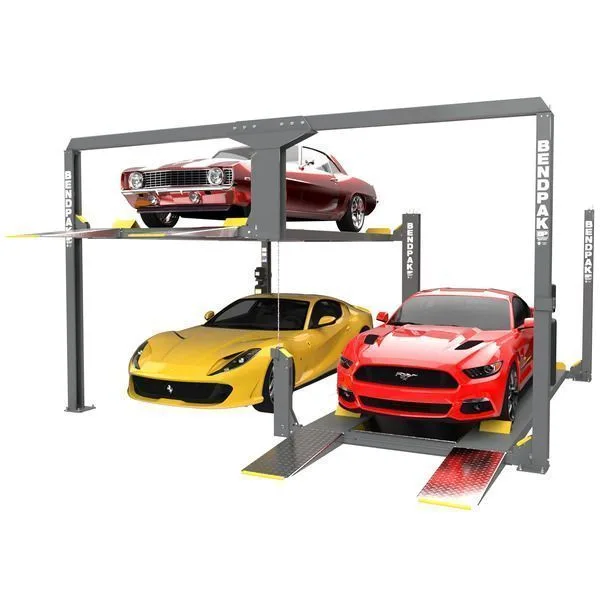

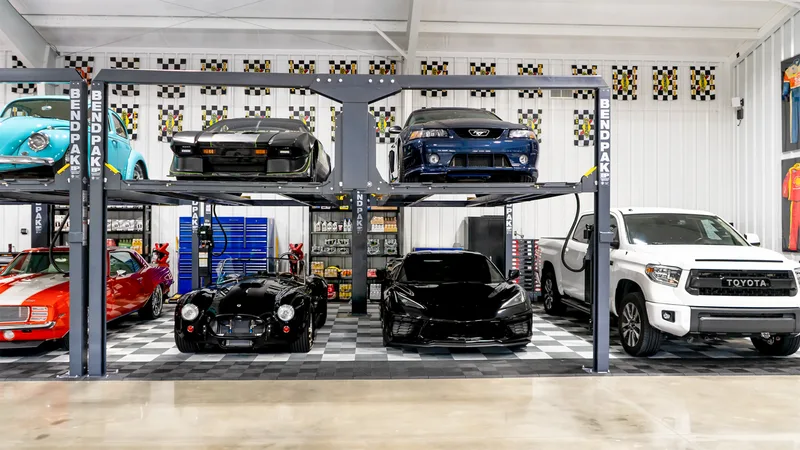

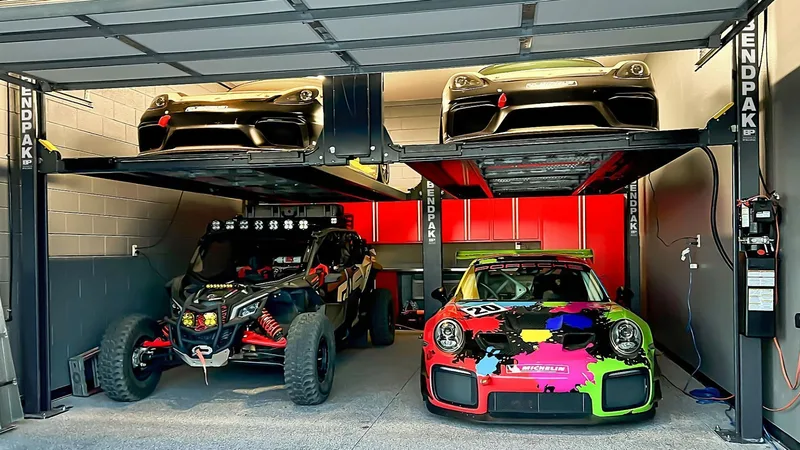

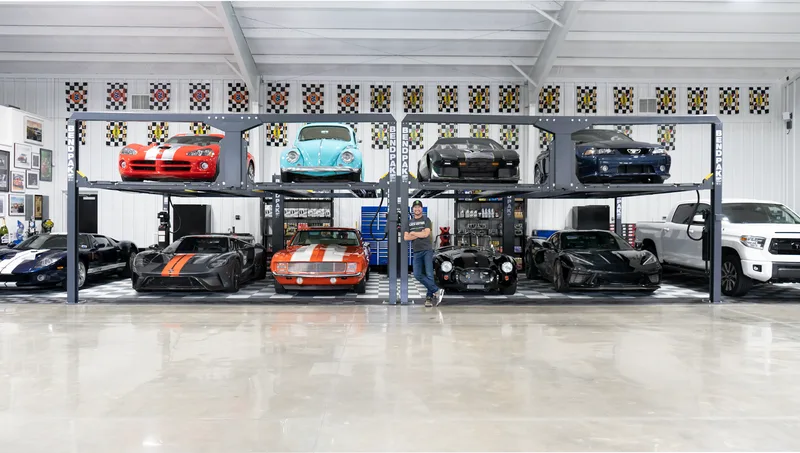

Photo image of BendPak BendPak 150K subscribers BendPak PL-12000 Series Multi-Platform Parking Lifts BendPak If playback doesn't begin shortly, try restarting your device. ## Include playlist An error occurred while retrieving sharing information. Please try again later. Watch on 0:00 0:00 / 2:34 •Live • **PL-12000DPS** BendPak’s PL-12000DPS parking lift offers revolutionary vehicle storage solutions for those challenged with owning more cars and trucks than parking spaces to store them. This lift can greatly expand the number of cars in a facility without expanding building space. As the costs of commercial and residential development increase, gaining additional parking spaces in the same usable space provides instant value. These mechanical parking systems are designed to increase parking density and cut costs over traditional parking methods. **Two Independent Platforms** Because each platform operates independently, one vehicle can be lowered while the other side remains still. This eliminates the need to “shuffle” vehicles from the half of the lift where vehicles are not being accessed. **Still the Best** For over 50-years, our experience as the world’s premier parking lift manufacturer enables us to deliver optimal solutions for our clients, from the initial problem, design consultation, then ultimately through fabrication, installation, and support. We’re the leading turnkey provider for all your parking lift needs, whether for commercial garages, or residential applications. The cutting-edge PL-12000 series lifts reflect our continuing commitment to design and deliver innovative vehicle storage solutions that offer only the highest value to our customers. The space-saving design means you can now stack one vehicle above another in the same space typically required for a single parking stall. With the strength to handle loads up to 6,000 lbs. and a footprint considerably smaller than other mechanical parking systems, they deliver more parking capability space per square inch than any other lift in its class. **Reliable and Safe** A dependable hydraulic drive system provides reliable power that requires very little service and maintenance over time. Tandem drive cylinders, combined with an intelligent hydraulic circuit, provide precise, equalized lifting of the platforms. Our promise to deliver a safe parking lift is the most important commitment we make in order to earn your trust and ensure lock systems and easy to understand operator controls, operators will be pleasantly surprised at how easy they are to safely operate. Our commitment to quality is unsurpassed. Our dedication to taking your parking challenges to the next level extends well beyond the physical reach of our products. Our advanced yet simple design enables our lifts to perform effortlessly and tirelessly, year after year, with very little maintenance or service required. After all, we can’t expect you to be a parking lift expert – that’s our job. Featuring rugged, welded steel construction, very few moving parts, and a simple fluid power system, the hydro-mechanical PL-12000 series offers the most economical and dependable method of lifting to deliver you many years of trouble-free service. **Performance Guaranteed** We’re so sure that our lifts will out-perform all others; we’re backing that promise with a full five-year warranty. The best warranty is the business gives you more than just peace of mind; it’s proof that we took a little extra care building your lift and every precaution was taken to maintain the highest degree of quality, dependability, and reliability. - Study In Lift DesignLift Comparisons And More - Electrical & UtilityRequirements - Free ShippingTo The 48 Contiguous States - WarrantyCovered By 5-2-1 Warranty - Balancing SafetyFinding Center Of Balance - Best Car Lift GuideIntroduction To Car Lift Types - Things To KnowBefore Buying A Car Lift
Specifications
- Model
- PL-12000DPS
- Total Width
- 221.5" / 5,620 mm
- Lifting Time
- ≈45 Seconds
- Maximum Rise
- 70.2" / 1,784 mm
- Runway Width
- 19" / 482 mm
- Total Height
- 118.5" / 3,009 mm
- Total Length
- 218.5" / 5,550 mm
- Runway Height
- 5.00" / 127 mm
- Runway Length
- 159" / 4,039 mm
- Outside Length
- 174" / 4,418 mm
- Drive Thru Width
- 85" / 2,161 mm
- Drive Thru Height
- 68.5" / 1,742 mm
- Number of Platforms
- 2
- Width Between Posts
- 211" / 5,362 mm
- Width Between Runways
- 35" or 41" / 887 or 1,045 mm
- Power Unit / Motor\*\*
- 220 VAC, 50/60 Hz, 1 Ph
- • High-speed lifting
- • Standard rise, standard length model - PL-12000DPS
- Outside Edge of Runways
- 76 or 82" / 1,930 or 2,083 mm
- Safety Lock Positions\*
- 6
- Width Between Platforms
- 29" / 739 mm
- Load Capacity per Platform
- 6,000lbs / 2,722 kg
- • 6,000 lb. capacity per side
- • Built-in wheel stops
- • Heavy-duty steel construction
- • Front and rear wheel chocks
- Width Between Short & Double Posts
- 100.25" / 2,546 mm
- • Wide baseplates for maximum stability
- • Dual electric-hydraulic power units
- • Perfect for cars, light trucks, motorcycles, and ATVs
- • Superstructure features durable powder-coat finish
- • Full-width platforms to keep bottom vehicles protected
- • Lightweight, extended aluminum approach ramps can be easily stowed
- • Dual hydraulic cylinders with heavy-duty galvanized lifting cables
- • Multiple locks for multi-height parked settings
Frequently Asked Questions
What ceiling height do I need for the PL-12000DPS?
Most 2-post lifts require a minimum ceiling height of 11'6" to 12'. 4-post lifts typically need 7-8 feet of clearance. Check the product specifications above for exact requirements.
Does the PL-12000DPS include installation?
The lift ships directly to your location. Professional installation is recommended and can be arranged through a local installer. My Sweet Garage can help connect you with certified installers in your area.
What floor thickness is required?
Most vehicle lifts require a minimum 4-inch reinforced concrete floor. Some portable lifts like QuickJack can be used on thinner slabs. Check the specifications for exact requirements.
