BendPak
QuickJack 8000TL Portable Car Lift
SKU: 8000TL
8,000-lbs. Lifting Capacity / Portable Car Lift
Description

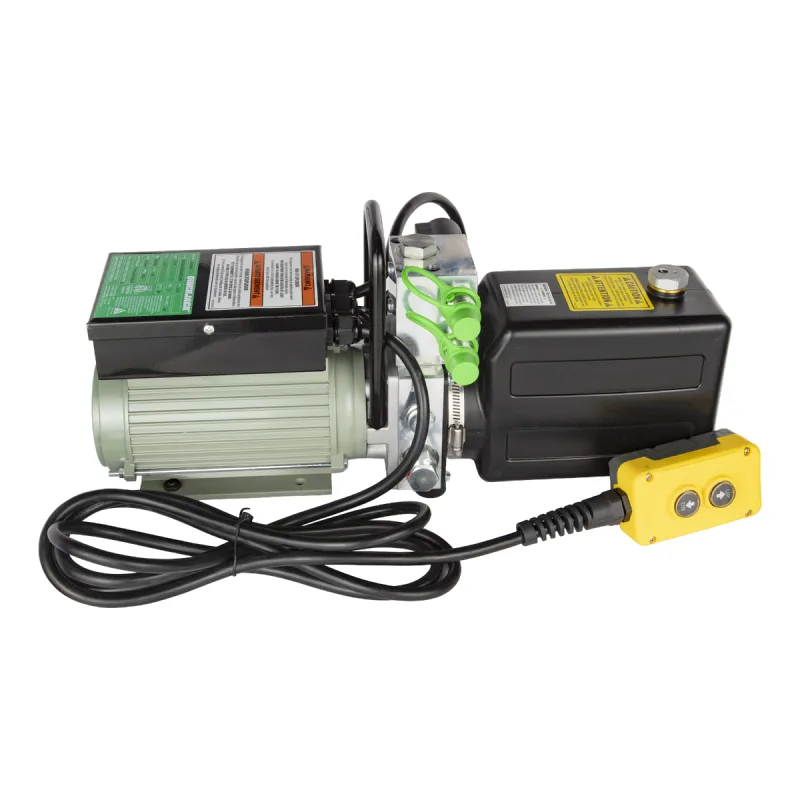

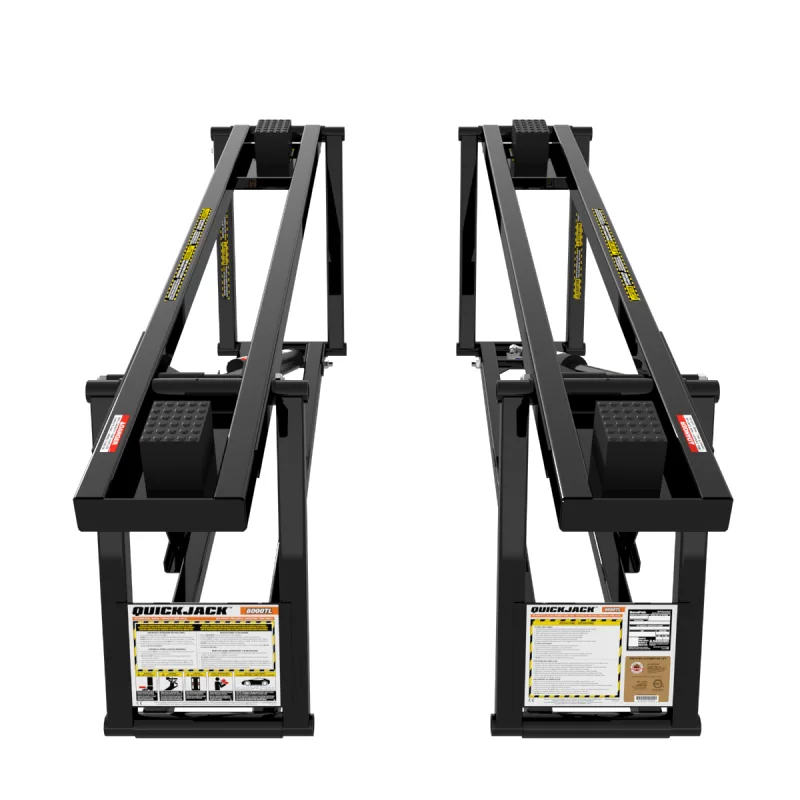

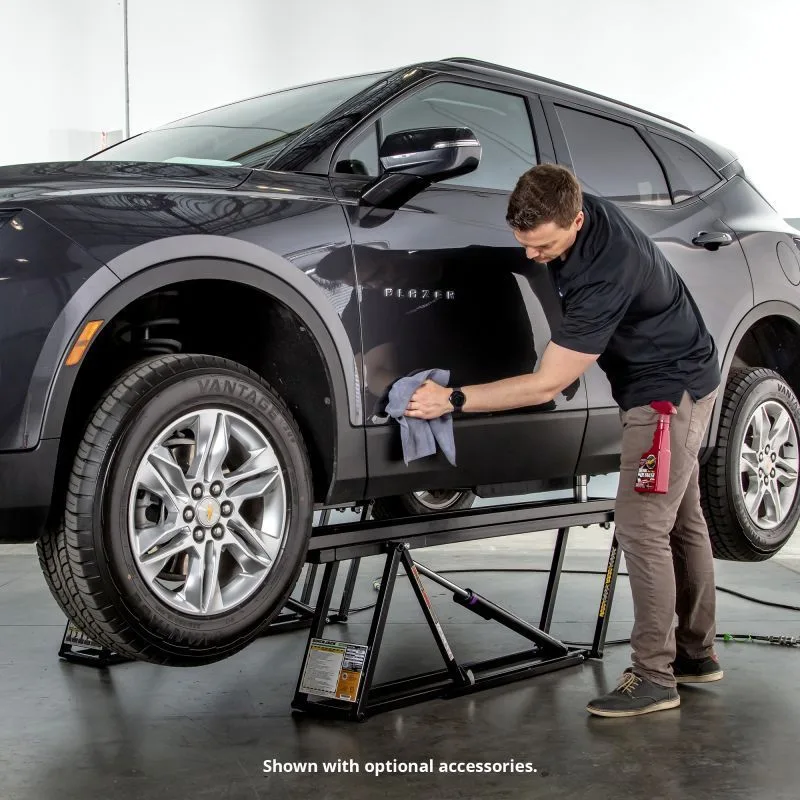

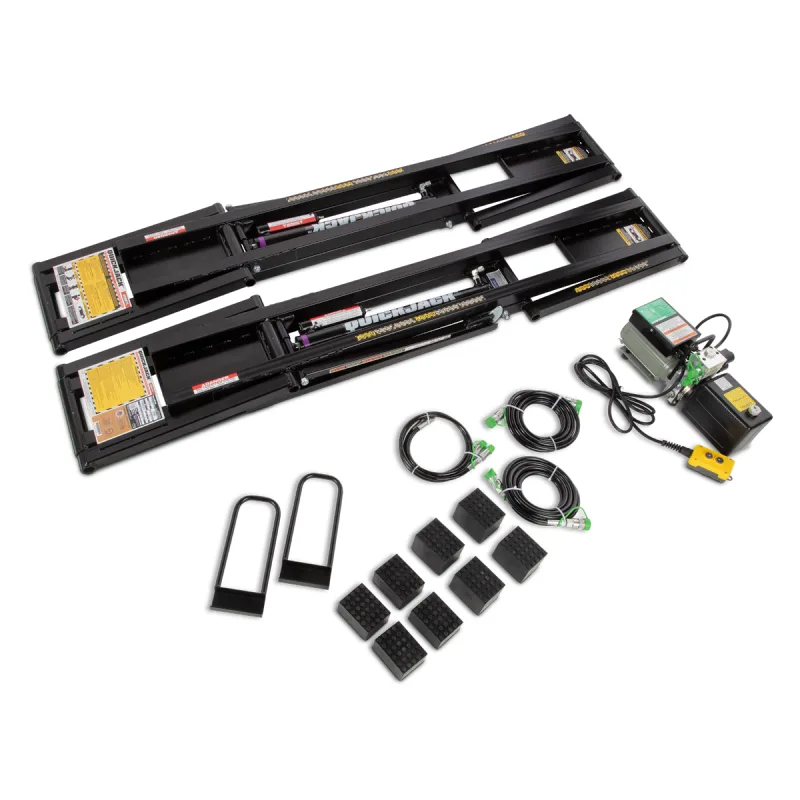

### 8000TL Portable Truck and SUV Lift System The QuickJack 8000TL is the most powerful standard-length portable lift in our lineup, now capable of raising up to 8,000 lbs. With a 24.25-inch lift height and a reinforced frame design, it's purpose-built for safely lifting light-duty trucks, SUVs, and passenger vehicles with higher curb weights. Add the optional Truck & SUV Adapter Kit to reach an impressive 27" lifting height—perfect for vehicles with extra ground clearance. Engineered with a completely redesigned electric/hydraulic power unit, the 8000TL ensures both frames rise and lower in perfect unison thanks to its pressure-compensated flow divider and independent shut-off solenoids. Reinforced cross members, improved weld geometry, and upgraded pivot joints provide added strength and rigidity for consistent performance under load. All of this power still fits in a compact 3.5-inch collapsed profile, maintaining the versatility and portability QuickJack is known for. Whether you're a DIYer with a heavy-duty weekend project or a professional tech working in tight shop conditions, the 8000TL delivers the muscle and mobility to get the job done without compromise. ##### What's improved on the NEW TL Models vs. previous TL Models? The 8000TL offers a 1,000-lb. capacity increase over the 7000TL and includes major upgrades to the hydraulic system and structural components. Despite the extra power, it retains the low-profile 3.5-inch collapsed height for easy storage and use in compact spaces. The minimum lift point spread remains at 37", with the frame length set at 70.75". - Free ShippingTo The 48 Contiguous States
Specifications
- Lifting Capacity
- 8,000 lbs. (3,629 kg)
- Power Unit Weight
- 15 lbs. (7 kg)
- Time to Full Rise
- 30 seconds
- Frame Weight (each)
- 98 lbs. (45 kg)
- D \- Max. Lift Height
- 24.5" (622 mm)
- I \- Frame Width (each)
- 12.5" (318 mm)
- J \- Frame Length (each)
- 70.75" (1,797 mm)
- G \- Max. Lift Point Spread
- 60" (1,524 mm)
- H \- Min. Lift Point Spread
- 37" (940 mm)
- (1,872 mm x 425 mm x 155 mm)
- Shipping Weight

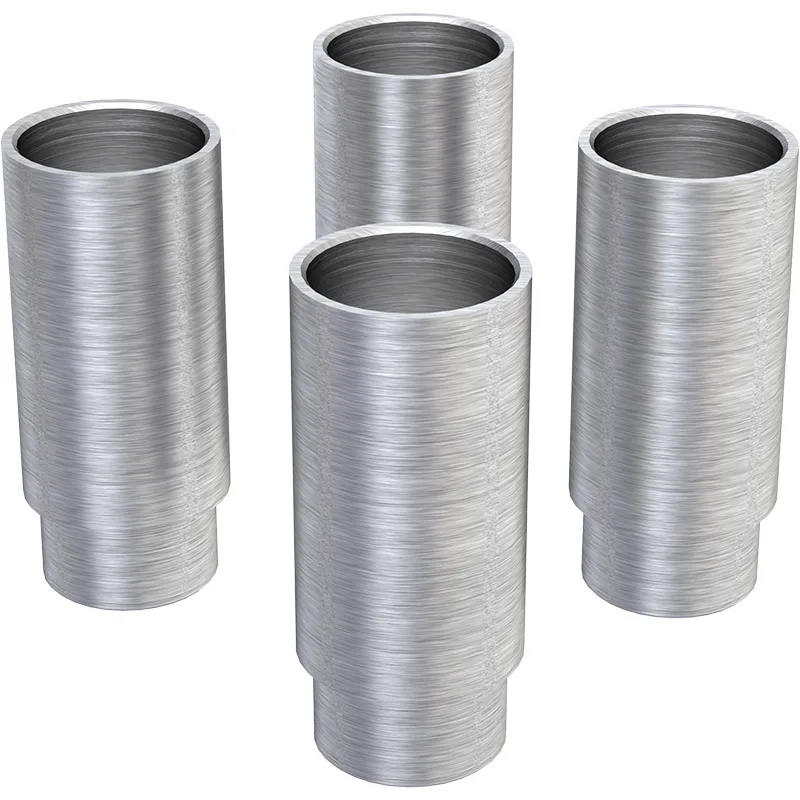

- E \- Lift Height (with adapters)
- 24.25" (610 mm)
- Shipping Dimensions (each frame)
- 73.75" (L) x 16.75" (W) x 6.25" (H)

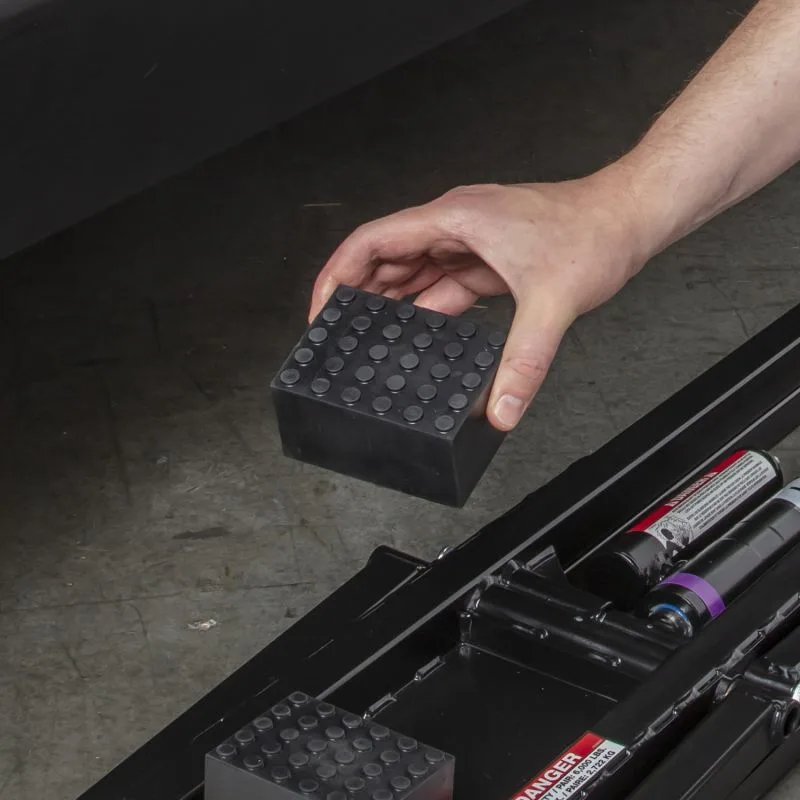

- A \- Lowered Height (with 2" block)
- 4" (102 mm)
- B \- Lifting Height (with 2" block)
- 21.5" (546 mm)
- C \- Lifting Height (with 3" block)
- 22.5" (572 mm)
- F \- Lift Height (with adapters + pin)
- 27" (686 mm)
Frequently Asked Questions
What ceiling height do I need for the QuickJack 8000TL Portable Car Lift?
Most 2-post lifts require a minimum ceiling height of 11'6" to 12'. 4-post lifts typically need 7-8 feet of clearance. Check the product specifications above for exact requirements.
Does the QuickJack 8000TL Portable Car Lift include installation?
The lift ships directly to your location. Professional installation is recommended and can be arranged through a local installer. My Sweet Garage can help connect you with certified installers in your area.
What floor thickness is required?
Most vehicle lifts require a minimum 4-inch reinforced concrete floor. Some portable lifts like QuickJack can be used on thinner slabs. Check the specifications for exact requirements.
