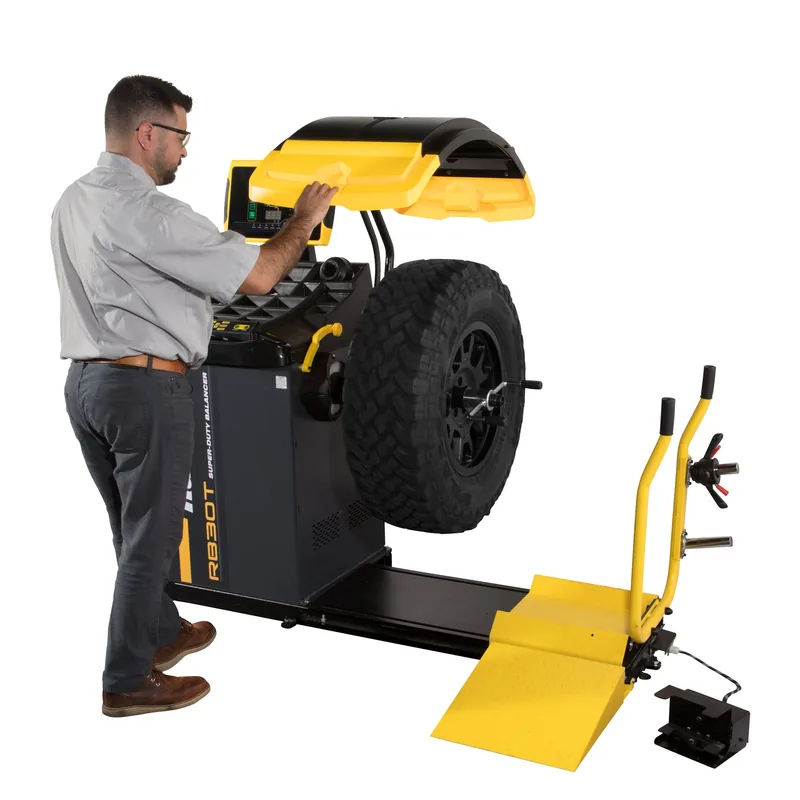

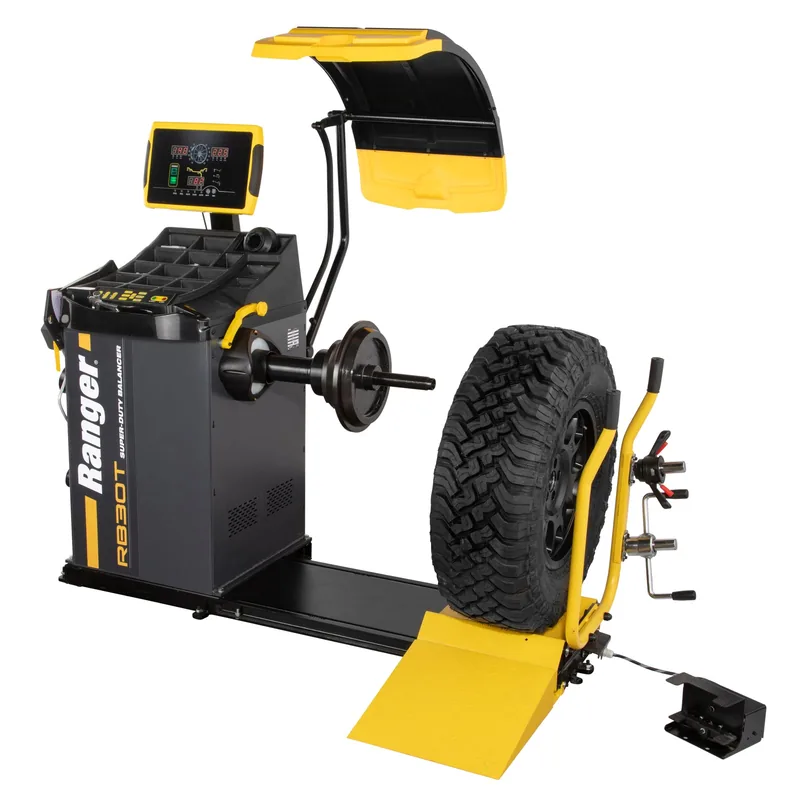

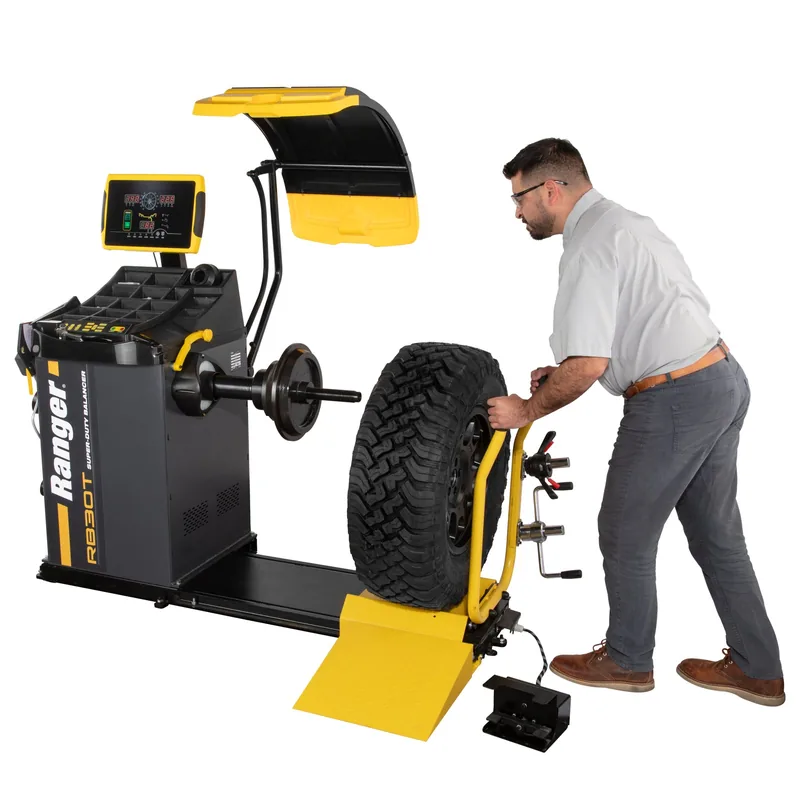

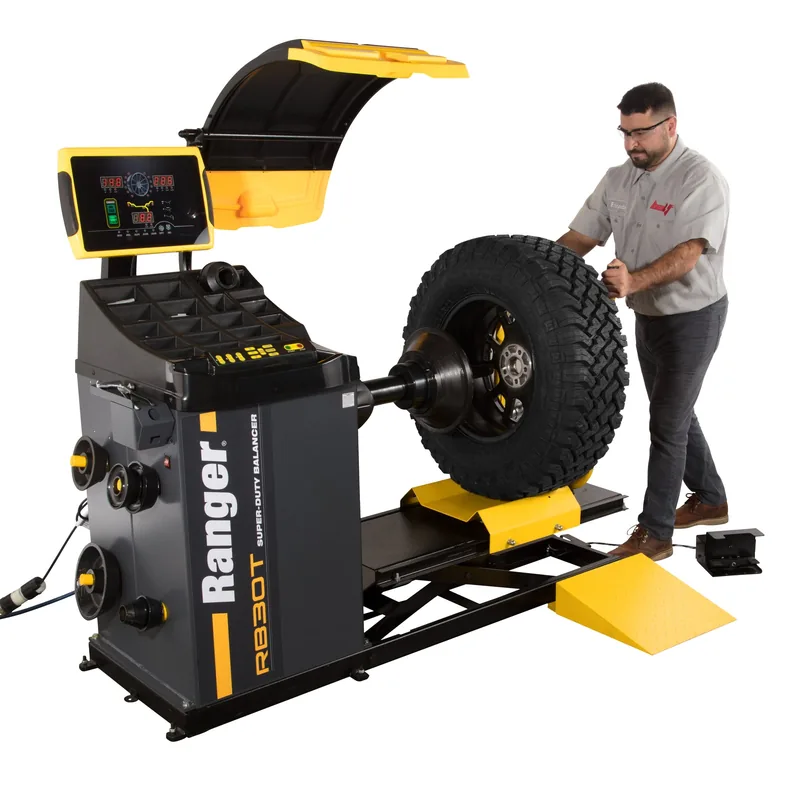

Ranger RB30T Heavy-Duty Truck and Passenger Car Wheel Balancer

Heavy-Duty Wheel Balancing for Trucks and Passenger Cars

The Ranger RB30T Heavy-Duty Truck and Passenger Car Wheel Balancer is built for commercial truck fleets, high-volume tire shops, and service operations where big wheel assemblies are part of the daily grind. Designed for buses, semis, OTR applications, light-duty trucks, and passenger car wheels, the RB30T gives shops the power, speed, and accuracy needed to balance larger assemblies without treating them like oversized exceptions.

With support for wheels up to 49.25 inches in diameter, 20 inches wide, and 330 lbs. in weight, the RB30T is the serious heavy-duty option in this wheel balancer group. It also moves quickly, with 7 to 10 second cycles for car wheels and approximately 20 second cycles for truck wheels, helping shops handle both commercial volume and mixed-service workflow from one purpose-built machine.

Drive-Check Technology and Multi-Axis Sensor Precision

At the center of the RB30T is Ranger Drive-Check technology, which helps simulate real-world conditions and identify subtle vibrations before they become road complaints. This is not basic spin-and-guess balancing. The system uses high-sensitivity detection backed by 64-bit digital architecture and multi-directional quartz piezoelectric sensors that measure longitudinal, transverse, and shear imbalance forces.

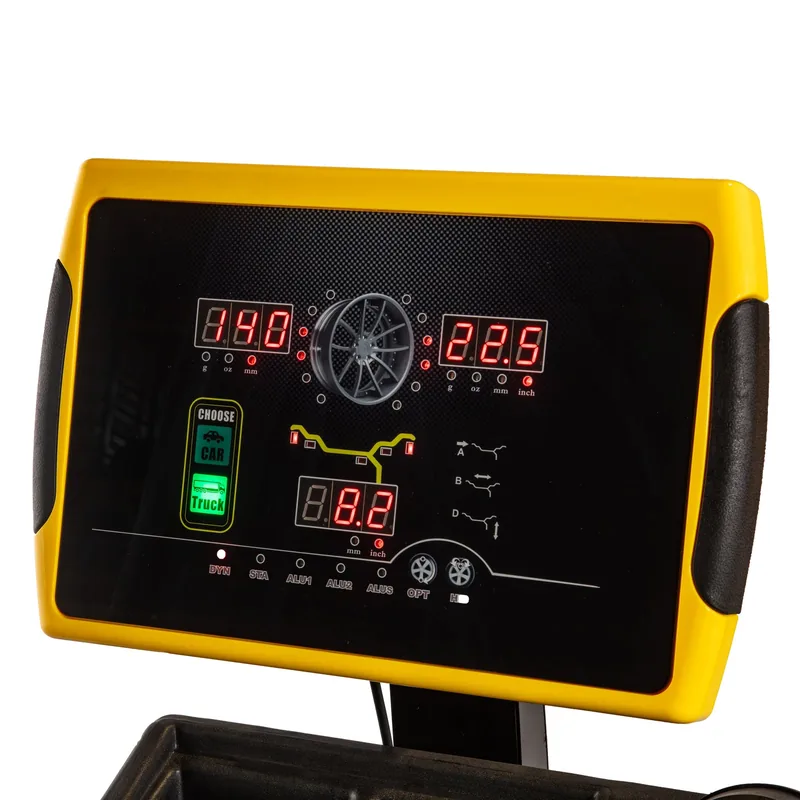

Once imbalance is detected, the RB30T helps recommend efficient correction, supporting better tire wear, reduced wasted weight, and more consistent customer results. Five balancing modes, including Dynamic, Static, ALU1, ALU2, and ALUS, give technicians the flexibility to balance both steel and aluminum wheels across truck and passenger applications.

Built to Handle Heavy Wheels Without Beating Up Technicians

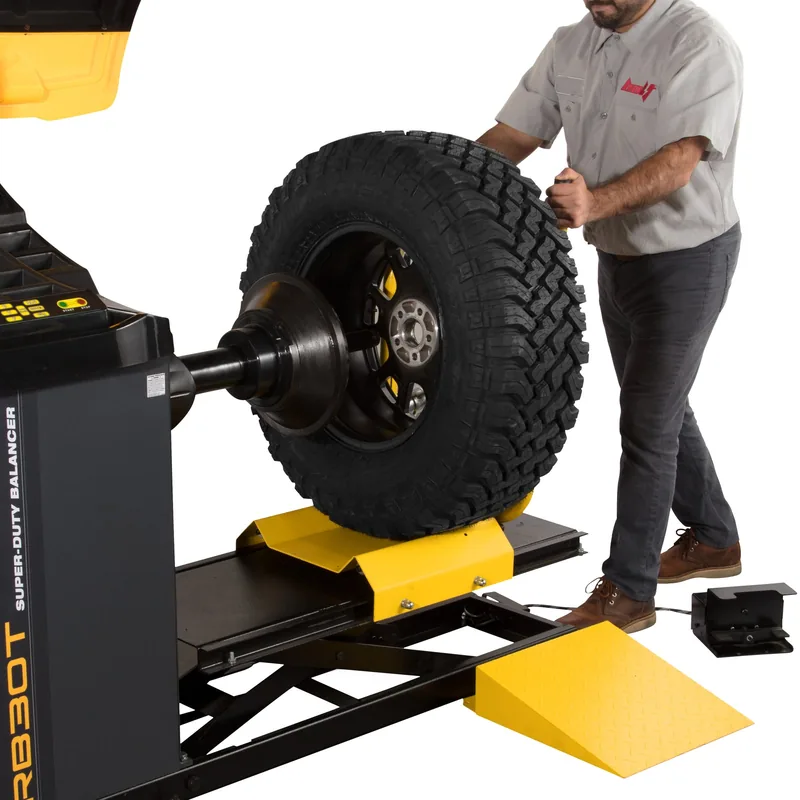

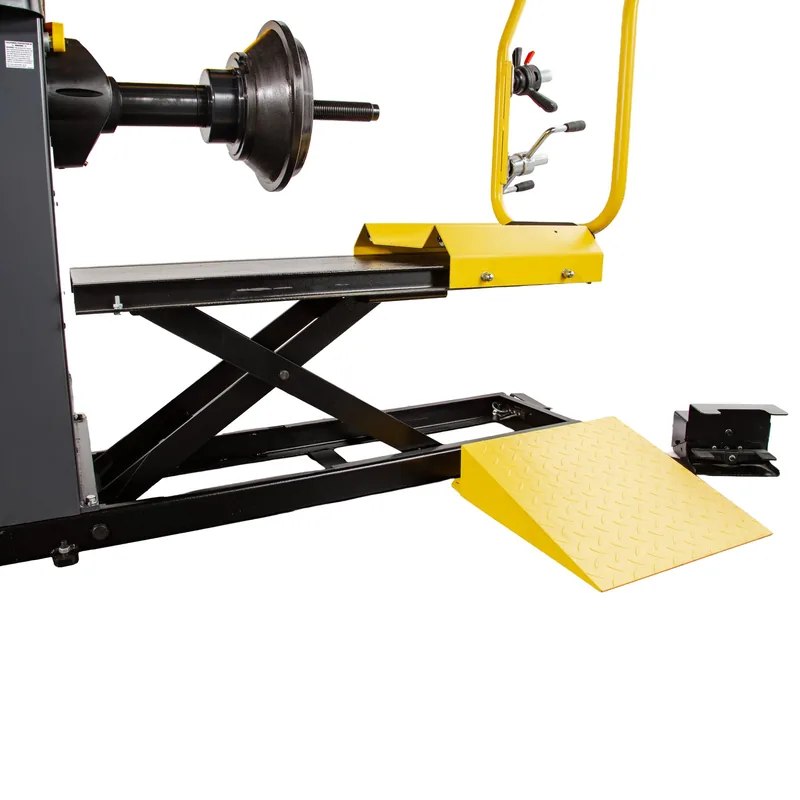

The RB30T is designed around the reality of heavy wheel service. An integrated pneumatic wheel lift helps position wheel assemblies up to 330 lbs., reducing technician strain and making mounting safer and more manageable. The self-centering quick-chuck system speeds setup and helps improve centering accuracy during high-volume work.

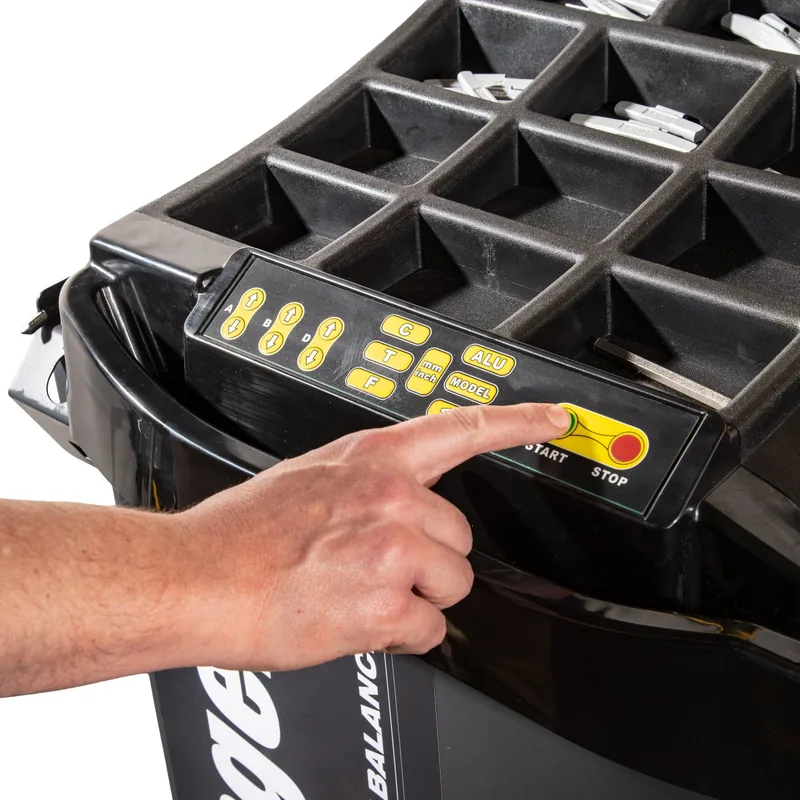

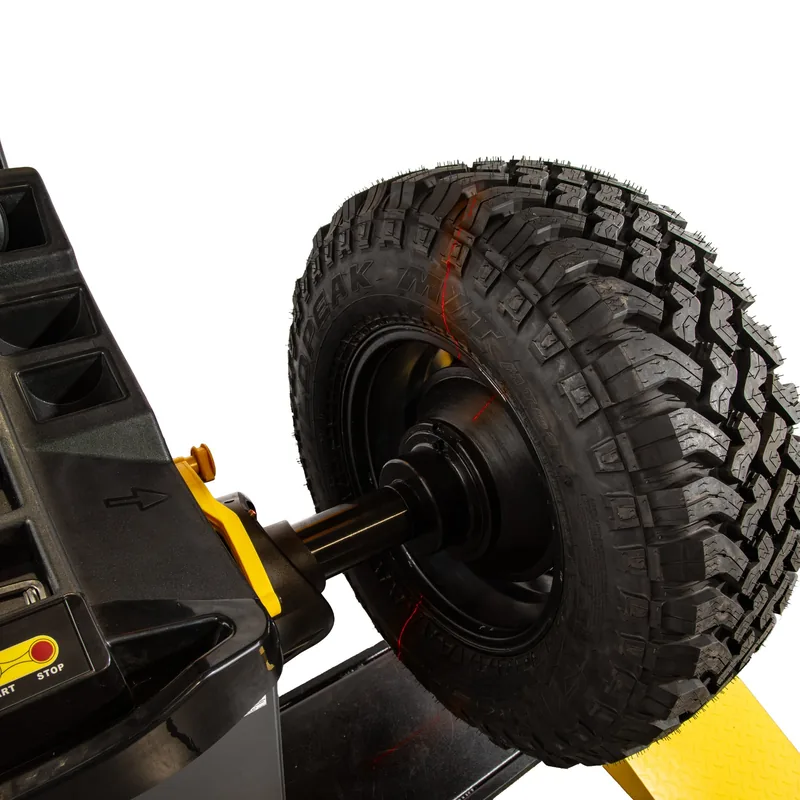

An electro-pneumatic braking system locks wheels for pinpoint weight placement at top or bottom dead center. LED placement indicators guide clip-on weights, while optional lower laser guidance supports 6 o'clock adhesive weight placement in ALU modes. Truck or car mode is available at the push of a button, so technicians can switch between wheel types without a long reset routine.

Commercial Construction, Adapter Kit, and Shop Workflow

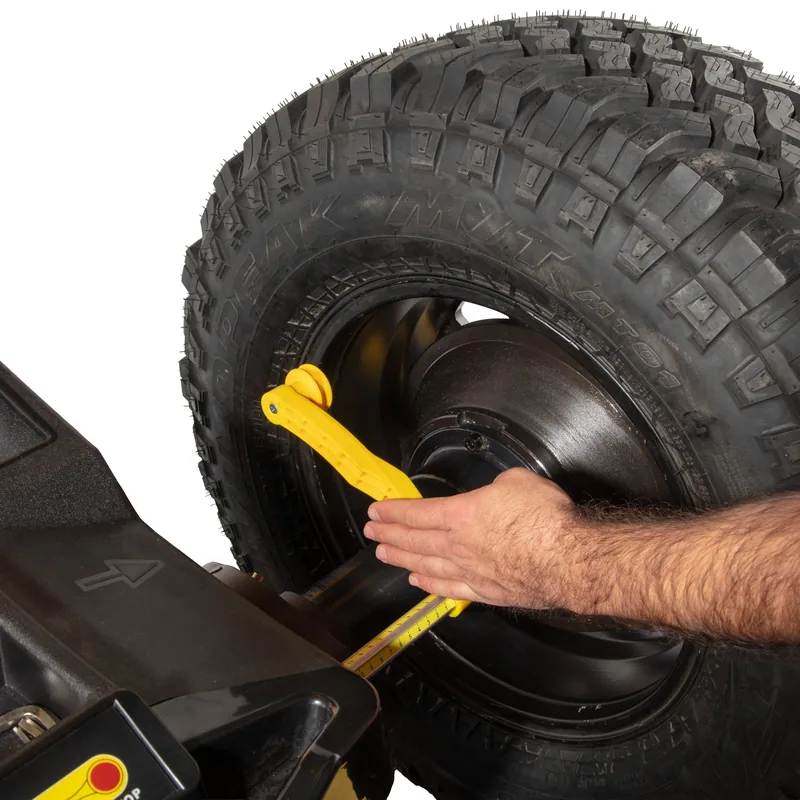

The RB30T is built for daily abuse with a hardened 40 mm steel shaft, rugged ribbed nylon-fiber reinforced serpentine belt, counter-weighted flywheel system, three-phase motor, and solid-state phase converter for consistent torque under load. Self-calibration and inner-arm calibration functions help maintain long-term measurement accuracy, while error-code diagnostics streamline troubleshooting and service.

The machine also keeps the work area organized with a top weight tray, side shelving, and cone pegs for weights, cones, and tools. A full heavy-duty cone and commercial adapter kit comes included, giving shops the mounting equipment needed to start handling truck and passenger car balancing without a pile of day-one add-ons.
