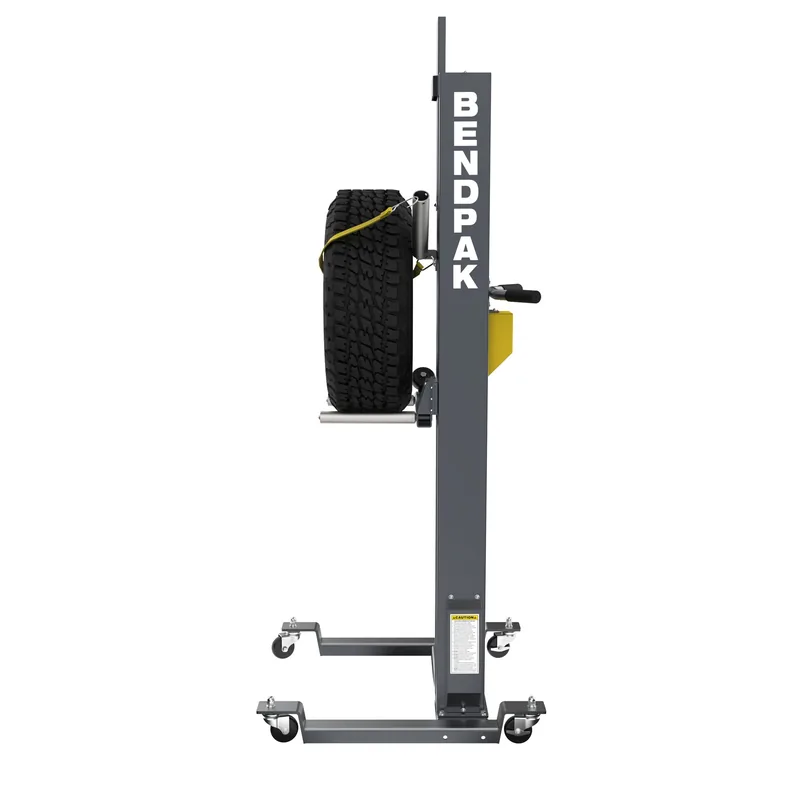

Ranger RWS-200WL Off-Center High-Speed Tire and Wheel Lift

Heavy-Duty Portable Wheel Lift for Trucks, SUVs, and Shop Service

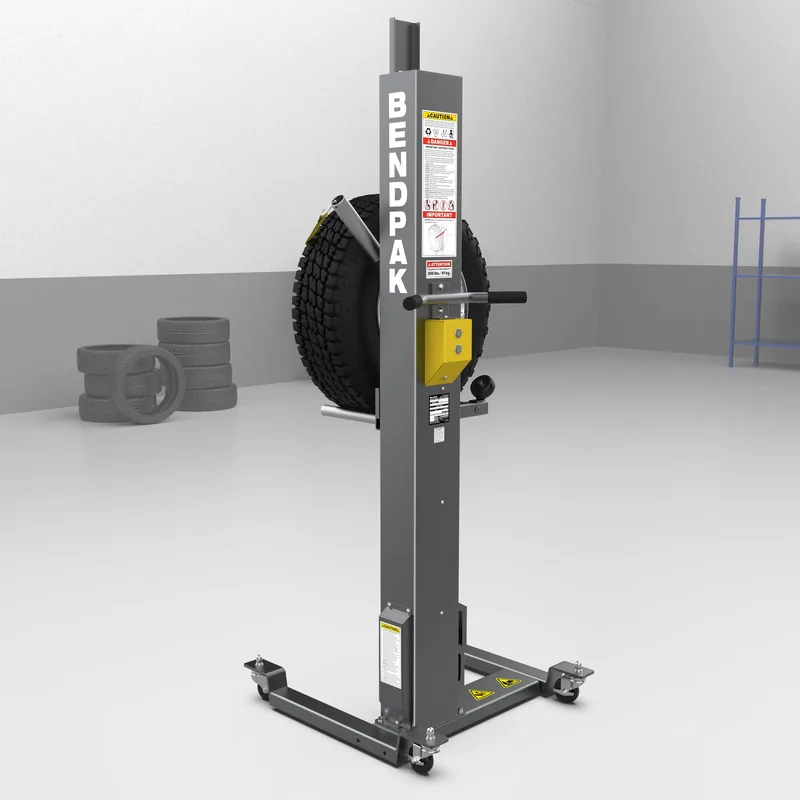

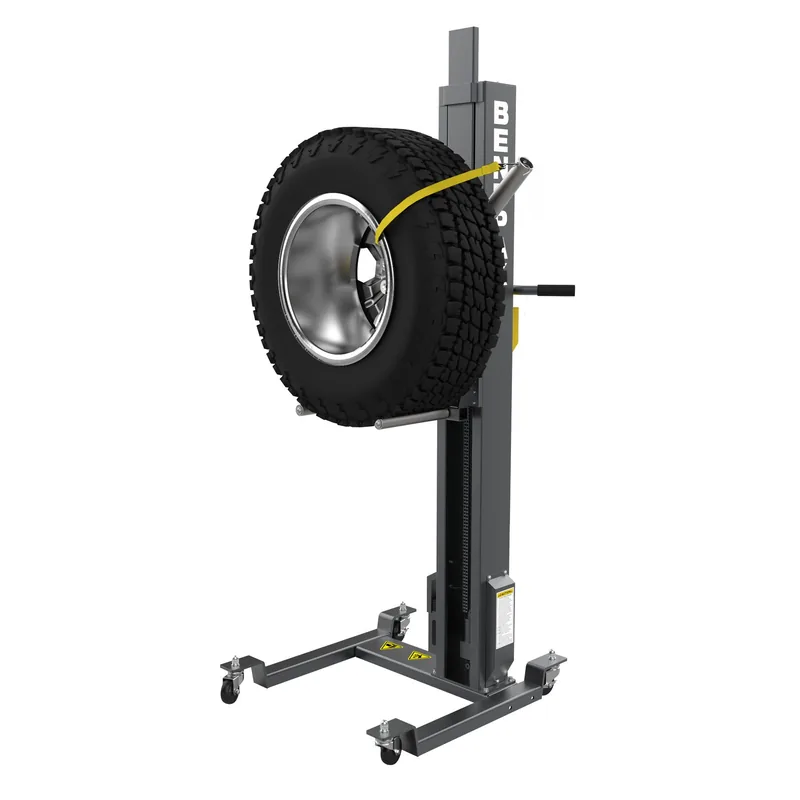

Take the strain out of heavy wheel service with the BendPak RWS-200WL Portable Wheel Lift, a battery-powered wheel-handling solution built for professional shops, service bays, and high-volume tire work. Designed to help technicians remove, install, and position heavy wheels with less effort, the RWS-200WL makes truck, SUV, and oversized tire service faster, safer, and more controlled.Unlike pneumatic wheel lifts that must stay connected to an air supply, the RWS-200WL gives you true portable freedom. Roll it anywhere in the shop, position it exactly where it is needed, and get to work without hoses, cords, or air-line restrictions slowing you down.

Cordless 24V Wheel Lift with 200-lb. Lifting Capacity

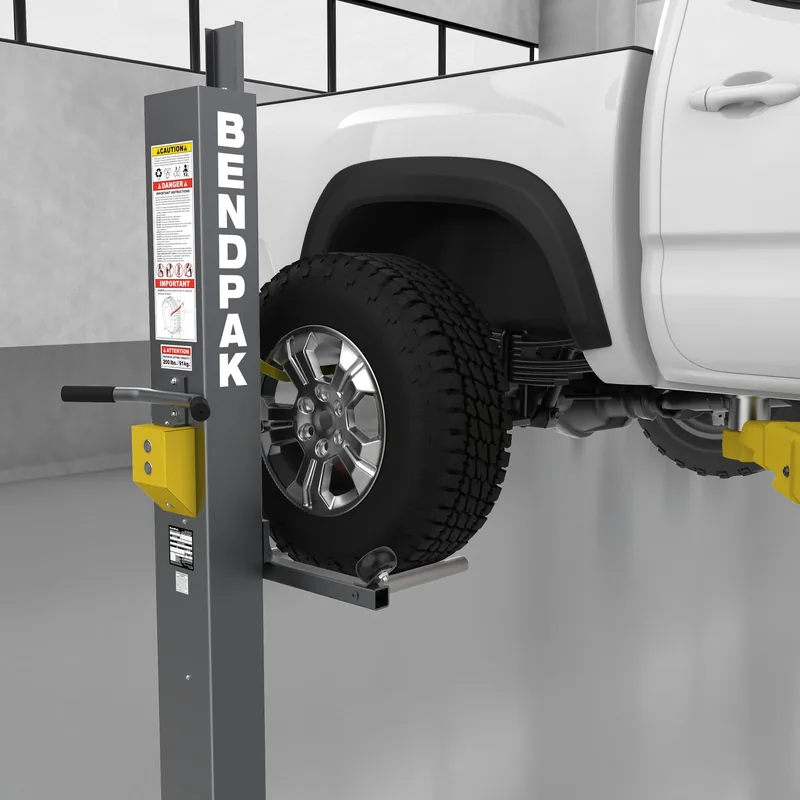

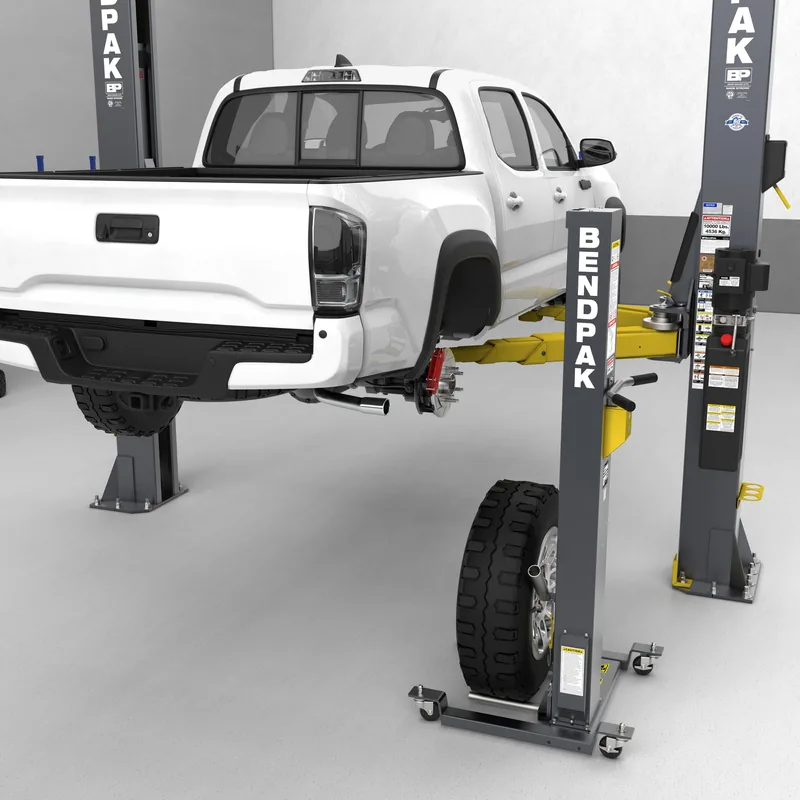

Powered by a 24V lithium-ion battery, the RWS-200WL delivers the speed, torque, and control needed for demanding wheel and tire service. With double the voltage of many competing 12V wheel lifts, this cordless unit provides faster lift speeds and the strength to handle heavy truck and SUV wheels with confidence.A 200-lb. lifting capacity makes it ideal for today’s larger wheel and tire assemblies, helping reduce manual lifting, technician fatigue, and the risk of back strain. Whether a vehicle is raised on a car lift or floor jack, the RWS-200WL helps move heavy wheels into position with less effort and better control.

Smooth Linear Actuator Lifting for Precise Wheel Installation

At the heart of the RWS-200WL is a heavy-duty 24V DC linear actuator with a hardened acme lead screw and reduction gearbox. This advanced drive system delivers smooth, predictable vertical movement without the inconsistent or spongy feel often found in pneumatic wheel lifts.With steady lifting at 1.6 in./sec., technicians can make precise height adjustments for lug-bolt alignment, hub centering, wheel installation, and tire machine positioning. The sealed, factory-lubricated linear actuator also uses fewer moving parts than hydraulic or pneumatic systems, helping reduce maintenance, downtime, and long-term operating costs.

Low-Profile Wheel Handling Equipment Built for Professional Shops

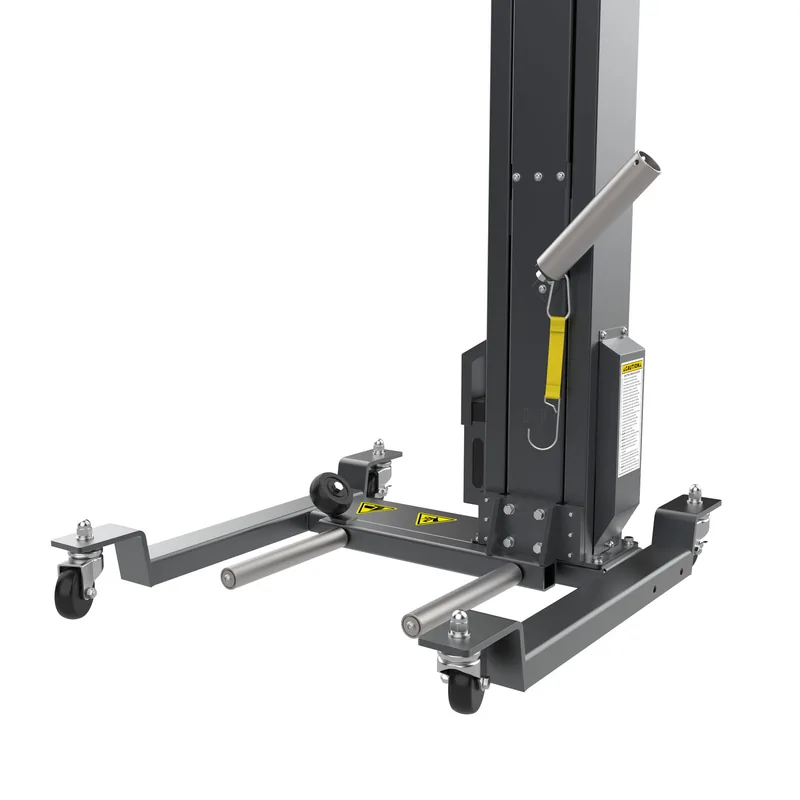

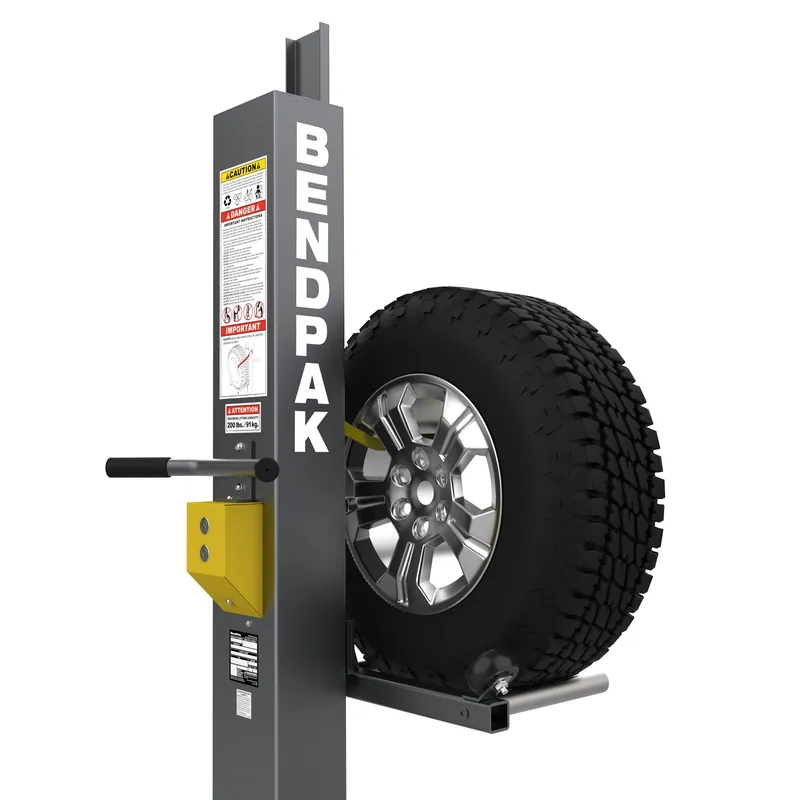

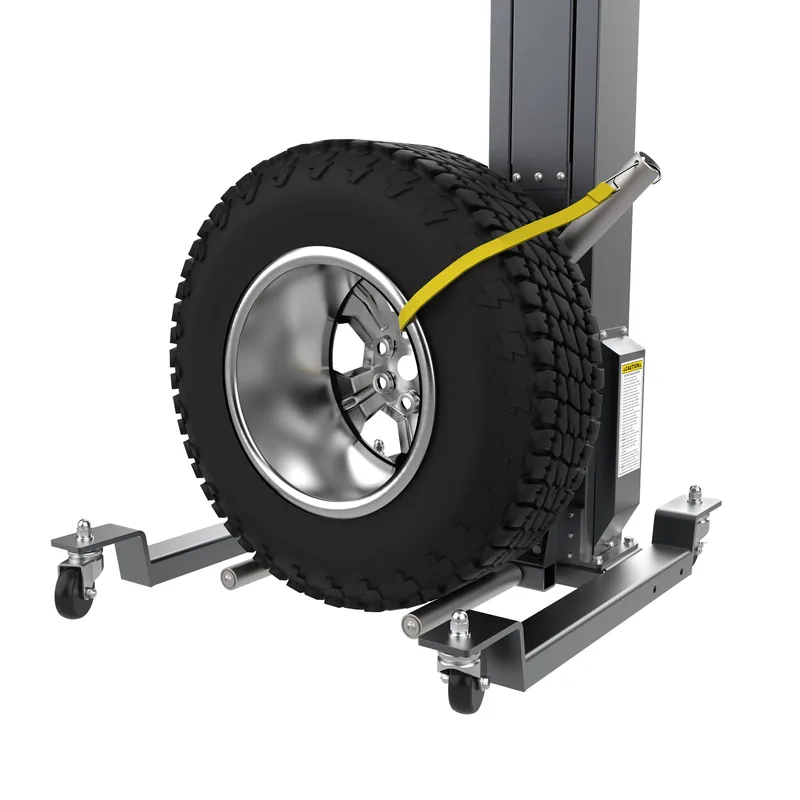

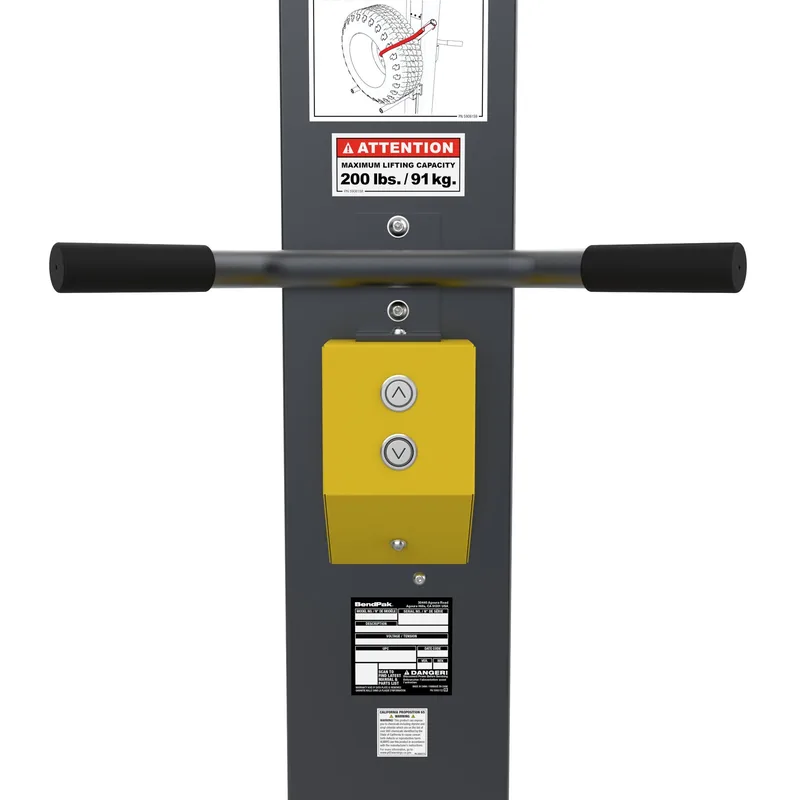

The RWS-200WL is engineered for everyday shop use, from removing and installing heavy wheels to raising wheel assemblies to waist height for mounting on balancers or tire-changing machines. A low-profile 2.5” frame height makes it easy to roll under heavy wheels, while offset carriage arms improve access to lug bolts during installation and removal.Side-mounted thrust rollers let technicians rotate the wheel smoothly for accurate alignment without unnecessary strain. An integrated smart charger accepts 110 to 240V AC input, making charging simple in shops around the world. With an onboard 12V accessory outlet, quick-glance battery status indicator, rugged powder-coated steel construction, smooth-rolling casters, and locking rear wheels, the RWS-200WL is built to lift heavy wheels and improve the entire workflow.
