BendPak
RBJ15000
SKU: 5175031
15,000-lb. Capacity / Rolling Bridge Jack
Description

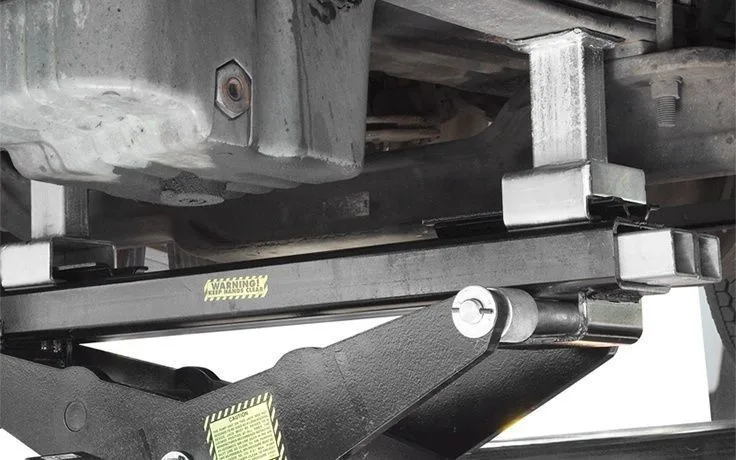

## Lift 15,000 lbs. for Full Wheel Service Capability The RBJ15000 bridge jack is capable of lifting half of a 30,000-lb. truck or commercial bus. The HDS-35 four-post car lift is a heavy-duty machine meant for professional shops that deal with massive, specialty equipment. If you have a truck lift, you have easy access to the undercarriage but can’t get to the wheels. A rolling bridge jack opens the door to new service opportunities, such as wheel balancer, wheel alignment and tire changer equipment. ### Steel contact pads BendPak bridge jacks feature steel contact pads that are built to withstand heavy use. The four steel contact pads on each rolling bridge jack are in place to support both the axle and the lifting points of your vehicle. The jack is low-profile, so the pads fit comfortably underneath low-stance cars. ### High-pressure hydraulic power unit The power unit to this jack is completely pneumatic-hydraulic. A small airline is attached to the bridge jack and is controlled with an ergonomically designed foot pedal. Two bridges jacks can share a single airline with the addition of BendPak’s exclusive, optional airline kit. ### Three lock levels Raise your jack to three different heights—whatever is most comfortable for you. The work you do varies, so if all you need is to lift the wheels a few inches, just enough to remove them, BendPak makes it easy. Rolling bridge jacks also give a little more raise for extra undercarriage clearance and comfort. - Free ShippingTo The 48 Contiguous States
Specifications
- Pump
- Air/Hydraulic
- Air Pressure
- 125 PSI (10-25 CFM)
- Tall Arm Pad
- 21" (533 mm)
- Tall Top Pad
- 22" (559 mm)
- Short Arm Pad
- 19" (483 mm)
- Short Top Pad
- 20" (508 mm)
- Shipping Weight
- 708 lbs. (321 kg)
- Lifting Capacity
- 15,000 lbs. (6,804 kg)
- Power Requirement
- None
- Time to Full Rise
- 55 seconds
- Max. Arm Pad Reach
- 63.75" (1,619 mm)
- Max. Top Pad Reach
- 39.5" (1,003 mm)
- Min. Arm Pad Reach
- 48.5" (1,232 mm)
- Min. Top Pad Reach
- 7.75" (197 mm)
- Support Base Width
- 45.75" (1,162 mm) - 59" (1,499 mm)
- Shipping Dimensions
- 48" x 29" x 18" (1,238 mm x 736 mm x 457 mm)
- Suitable Lift Model(s)
- HDS-27 Series, HDS-40 Series
- Max. Operating Hydraulic Pressure
- 6,000 PSI
Frequently Asked Questions
What ceiling height do I need for the RBJ15000?
Most 2-post lifts require a minimum ceiling height of 11'6" to 12'. 4-post lifts typically need 7-8 feet of clearance. Check the product specifications above for exact requirements.
Does the RBJ15000 include installation?
The lift ships directly to your location. Professional installation is recommended and can be arranged through a local installer. My Sweet Garage can help connect you with certified installers in your area.
What floor thickness is required?
Most vehicle lifts require a minimum 4-inch reinforced concrete floor. Some portable lifts like QuickJack can be used on thinner slabs. Check the specifications for exact requirements.
Does this come with free shipping?
Yes! My Sweet Garage offers free shipping on most products. Large items like vehicle lifts ship via freight carrier with free curbside delivery.
What is your return policy?
We offer a 30-day return policy on unused items in original packaging. A restocking fee may apply for large items. Contact support@mysweetgarage.com for return authorization.
