BendPak
RBJ18000
SKU: 5175032
18,000-lb. Capacity / Rolling Bridge Jack
Description

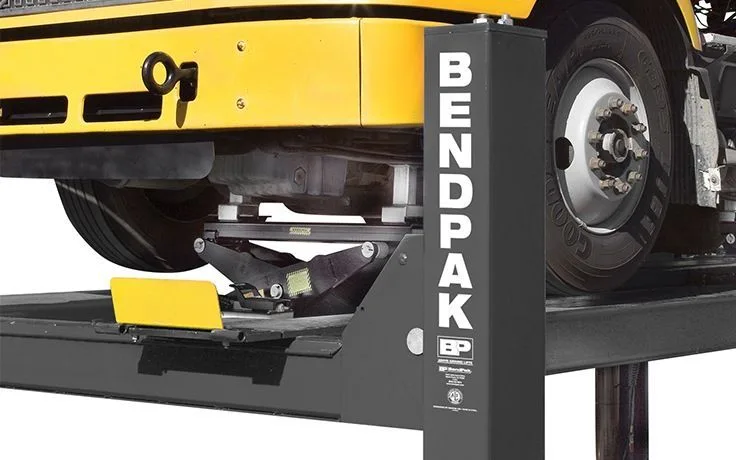

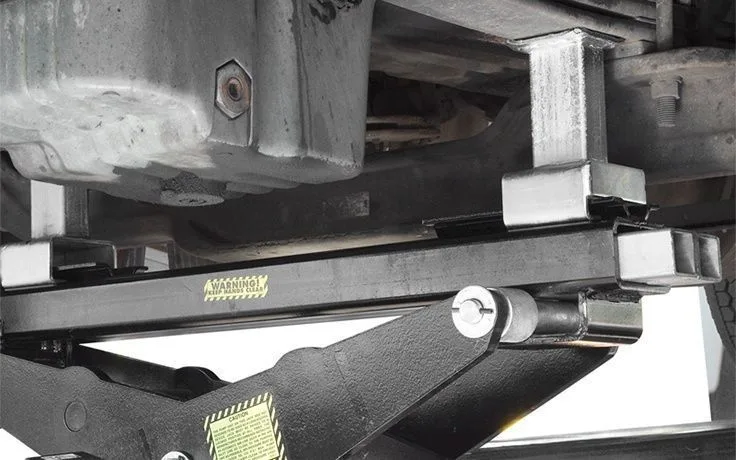

## Lift 18,000 lbs. for Full Wheel Service Capability While the 18,000-lb. capacity RBJ18000 will handle the weight of many heavy-duty vehicles, some larger trucks, buses and commercial drivers have significantly offset centers of gravity. It’s important to ensure your bridge jack is rated for the entire weight of both the front and back axles of the vehicle. The extra lift capacity of the RBJ18000 will compensate for a shifted center of gravity in heavy-duty vehicles being raised on the HDS-35 or HDS-40 four-post lift series. ### Steel contact pads BendPak bridge jacks feature steel contact pads that are built to withstand heavy use. The four steel contact pads on each rolling bridge jack are in place to support both the axel and the lifting points of your vehicle. The jack is low-profile, so the pads fit comfortably underneath low-stance cars. ### High-pressure hydraulic power unit The power unit on the RBJ18000 is strong enough to lift those massive city buses and farm equipment you’re raising on your HD-35 four-post lift. A simple foot pedal controls the jack, which reaches its max extension in seconds flat. ### Three lock levels Your work, your shop. With three lock positions, your rolling bridge jack adapts to the way you get things done. Different factors change your working height: operator preference, operator height, vehicle clearance, ceiling height and more. With three lock positions on the jack, your ultimate working height is that much more versatile. - Free ShippingTo The 48 Contiguous States
Specifications
- Pump
- Air/Hydraulic
- Air Pressure
- 125 PSI (10-25 CFM)
- Tall Arm Pad
- 20.5" (521 mm)
- Tall Top Pad
- 21.25" (540 mm)
- Short Arm Pad
- 19" (483 mm)
- Short Top Pad
- 19.75" (502 mm)
- Shipping Weight
- 792 lbs. (359 kg)
- Lifting Capacity
- 18,000 lbs. (8,165 kg)
- Power Requirement
- None
- Time to Full Rise
- 55 seconds
- Max. Arm Pad Reach
- 63.75" (1,619 mm)
- Max. Top Pad Reach
- 39.5" (1,003 mm)
- Min. Arm Pad Reach
- 48.5" (1,232 mm)
- Min. Top Pad Reach
- 8" (203 mm)
- Support Base Width
- 45" (1,143 mm)
- Shipping Dimensions
- 47" x 29" x 17" (1,206 mm x 736 mm x 431 mm)
- Suitable Lift Model(s)
- HDS-40 Series
- Max. Operating Hydraulic Pressure
- 7,200 PSI
Frequently Asked Questions
What ceiling height do I need for the RBJ18000?
Most 2-post lifts require a minimum ceiling height of 11'6" to 12'. 4-post lifts typically need 7-8 feet of clearance. Check the product specifications above for exact requirements.
Does the RBJ18000 include installation?
The lift ships directly to your location. Professional installation is recommended and can be arranged through a local installer. My Sweet Garage can help connect you with certified installers in your area.
What floor thickness is required?
Most vehicle lifts require a minimum 4-inch reinforced concrete floor. Some portable lifts like QuickJack can be used on thinner slabs. Check the specifications for exact requirements.
Does this come with free shipping?
Yes! My Sweet Garage offers free shipping on most products. Large items like vehicle lifts ship via freight carrier with free curbside delivery.
What is your return policy?
We offer a 30-day return policy on unused items in original packaging. A restocking fee may apply for large items. Contact support@mysweetgarage.com for return authorization.
